Ajuste do cabo da alavanca seletora

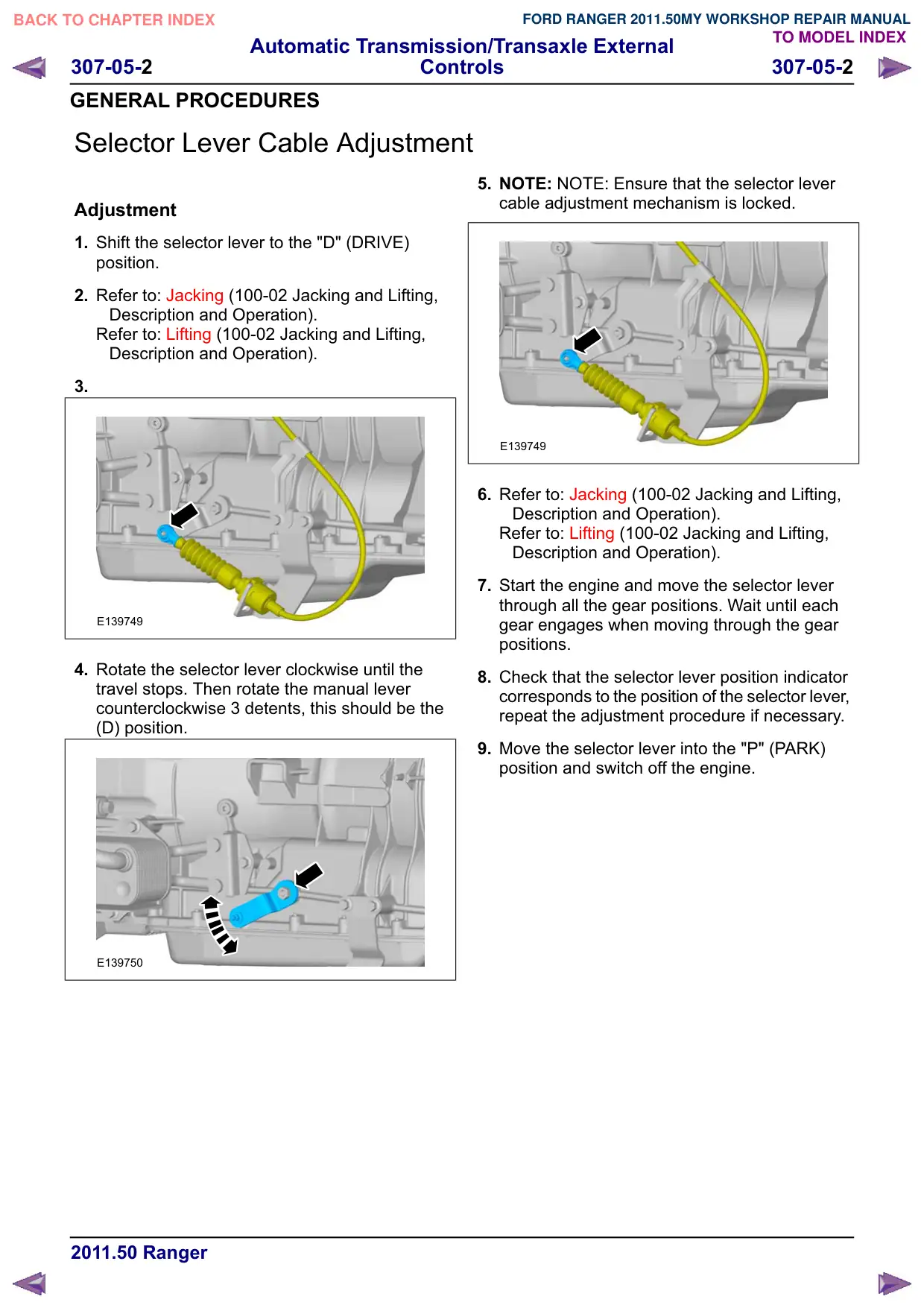

Automatic Transmission/Transaxle External Controls 307-05-2 307-05-2 GENERAL PROCEDURES Selector Lever Cable Adjustment Adjustment 1. Shift the selector lever to the "D" (DRIVE) position. 2. Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. E139749 4. Rotate the selector lever clockwise until the travel stops. Then rotate the manual lever counterclockwise 3 detents, this should be the (D) position. E139750 5. NOTE: NOTE: Ensure that the selector lever cable adjustment mechanism is locked. E139749 6. Refer to: Jacking (100-02 Jacking and Lifting, Description and Operation). Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 7. Start the engine and move the selector lever through all the gear positions. Wait until each gear engages when moving through the gear positions. 8. Check that the selector lever position indicator corresponds to the position of the selector lever, repeat the adjustment procedure if necessary. 9. Move the selector lever into the "P" (PARK) position and switch off the engine.
