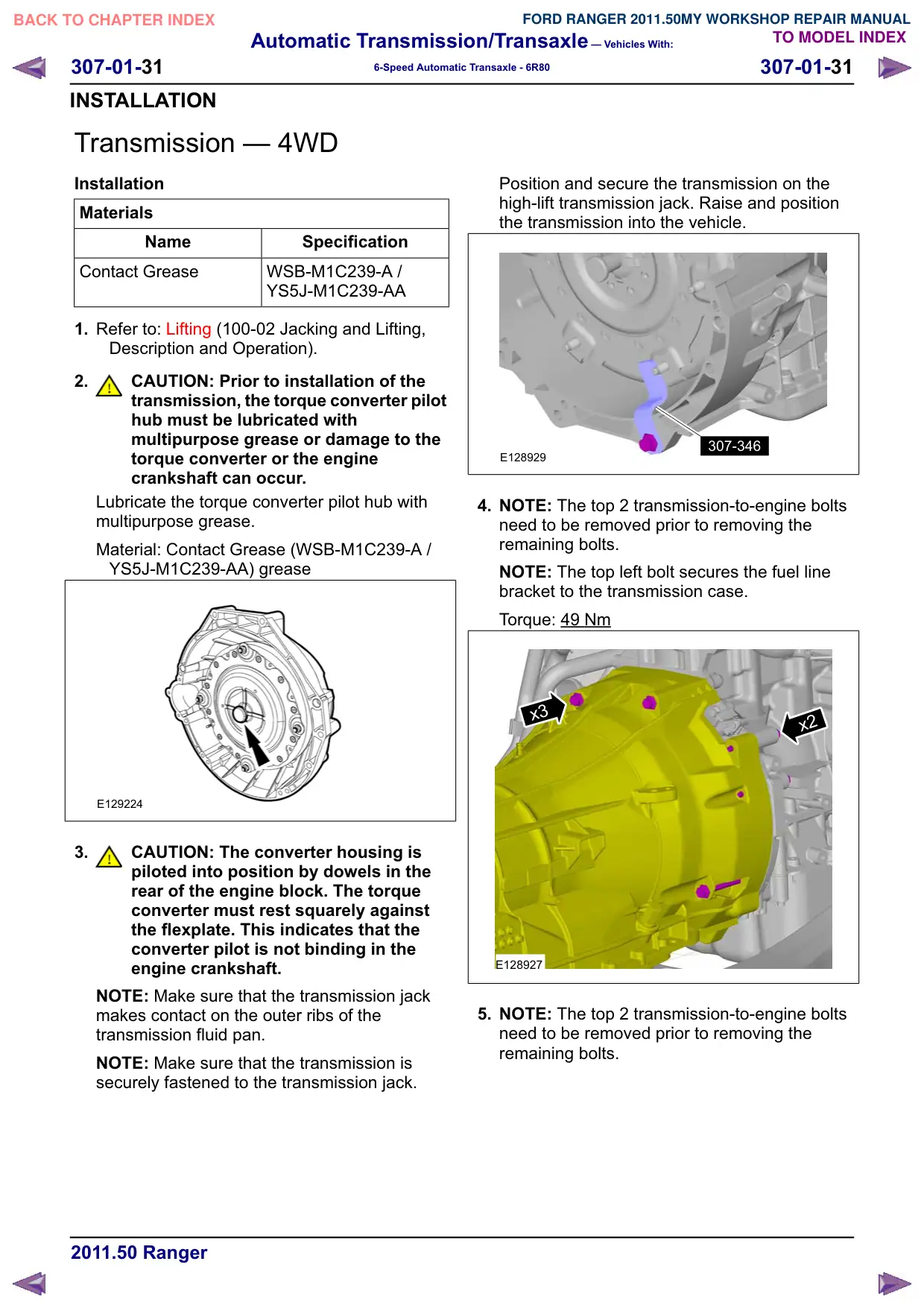

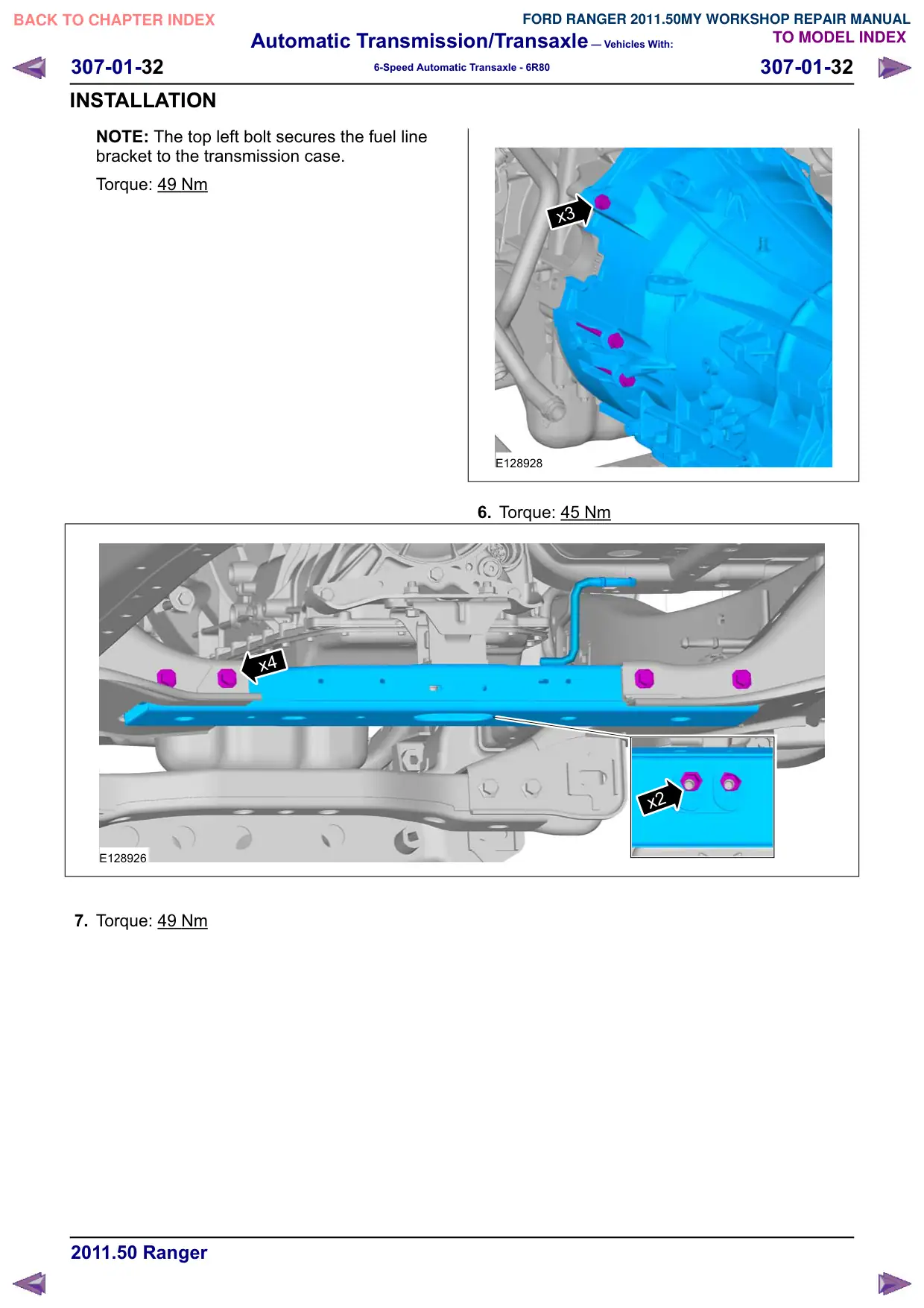

Automatic Transmission/Transaxle – Vehicles With: 307-01-31 307-01-31 6-Speed Automatic Transaxle - 6R80 INSTALLATION Transmission – 4WD Installation Materials Name Specification Contact Grease WSB-M1C239-A / YS5J-M1C239-AA 1. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. CAUTION: Prior to installation of the transmission, the torque converter pilot hub must be lubricated with multipurpose grease or damage to the torque converter or the engine crankshaft can occur. Lubricate the torque converter pilot hub with multipurpose grease. Material: Contact Grease (WSB-M1C239-A / YS5J-M1C239-AA) grease E129224 3. CAUTION: The converter housing is piloted into position by dowels in the rear of the engine block. The torque converter must rest squarely against the flexplate. This indicates that the converter pilot is not binding in the engine crankshaft. NOTE: Make sure that the transmission jack makes contact on the outer ribs of the transmission fluid pan. NOTE: Make sure that the transmission is securely fastened to the transmission jack. Position and secure the transmission on the high-lift transmission jack. Raise and position the transmission into the vehicle. 307-346 E128929 4. NOTE: The top 2 transmission-to-engine bolts need to be removed prior to removing the remaining bolts. NOTE: The top left bolt secures the fuel line bracket to the transmission case. Torque: 49 Nm x3 x2 E128927 5. NOTE: The top 2 transmission-to-engine bolts need to be removed prior to removing the remaining bolts.
