Transmissão – 2WD

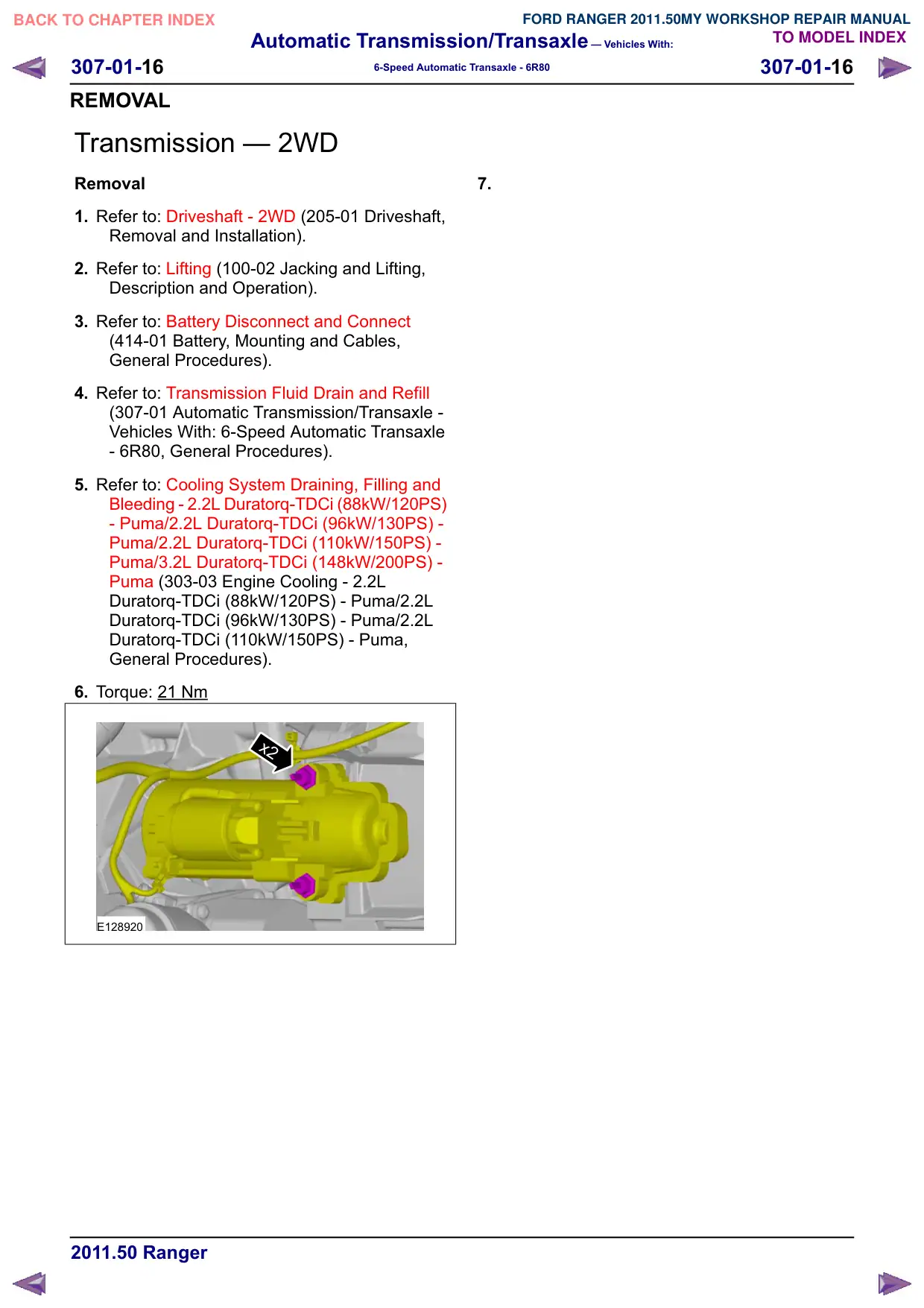

Automatic Transmission/Transaxle – Vehicles With: 307-01-16 307-01-16 6-Speed Automatic Transaxle - 6R80 REMOVAL Transmission – 2WD Removal 1. Refer to: Driveshaft - 2WD (205-01 Driveshaft, Removal and Installation). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 4. Refer to: Transmission Fluid Drain and Refill (307-01 Automatic Transmission/Transaxle - Vehicles With: 6-Speed Automatic Transaxle - 6R80, General Procedures). 5. Refer to: Cooling System Draining, Filling and Bleeding - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-03 Engine Cooling - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma, General Procedures). 6. Torque: 21 Nm x2 E128920 7.
