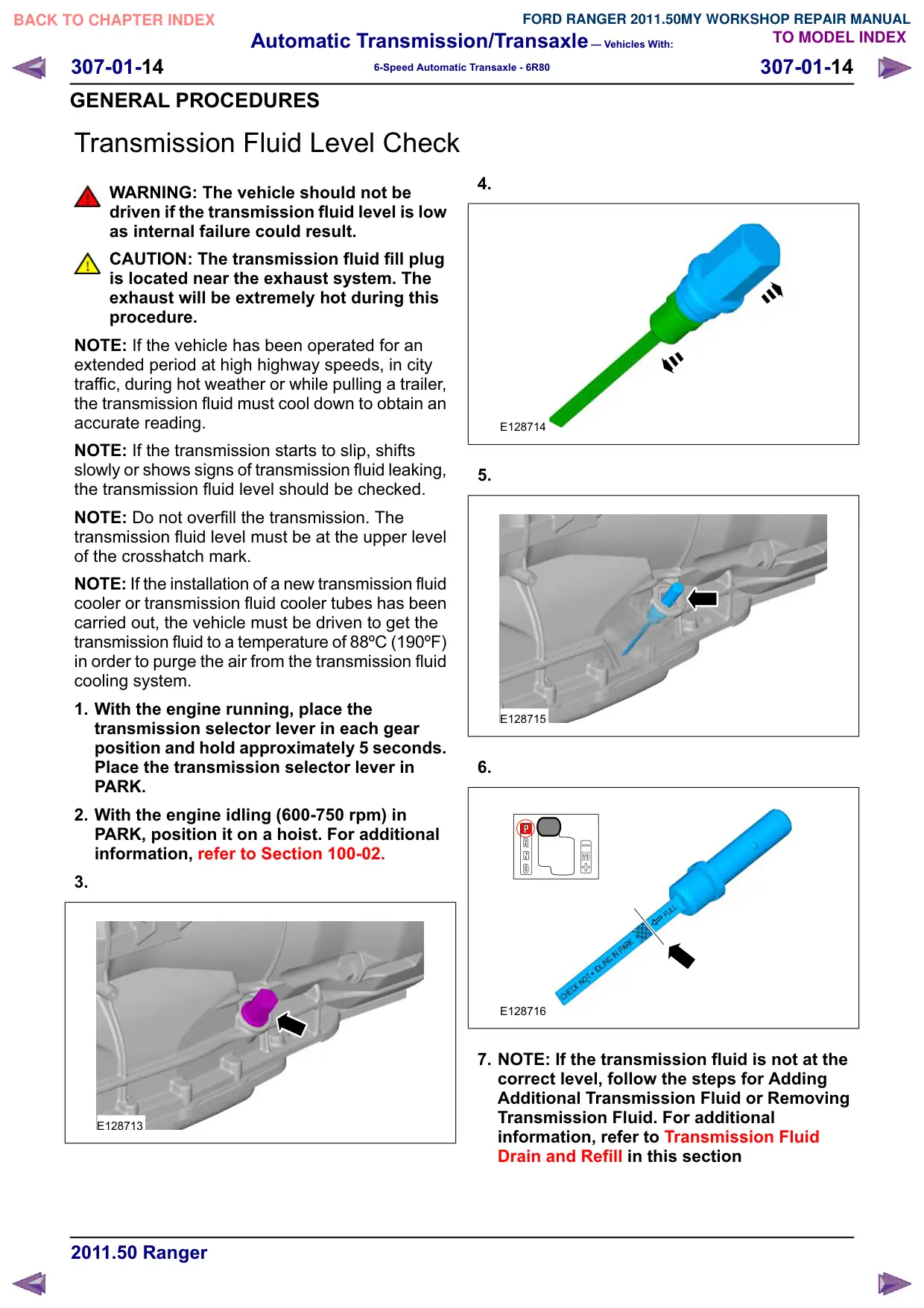

Verificação do nível do fluido da transmissão

Automatic Transmission/Transaxle – Vehicles With: 307-01-14 307-01-14 6-Speed Automatic Transaxle - 6R80 GENERAL PROCEDURES Transmission Fluid Level Check WARNING: The vehicle should not be driven if the transmission fluid level is low as internal failure could result. CAUTION: The transmission fluid fill plug is located near the exhaust system. The exhaust will be extremely hot during this procedure. NOTE: If the vehicle has been operated for an extended period at high highway speeds, in city traffic, during hot weather or while pulling a trailer, the transmission fluid must cool down to obtain an accurate reading. NOTE: If the transmission starts to slip, shifts slowly or shows signs of transmission fluid leaking, the transmission fluid level should be checked. NOTE: Do not overfill the transmission. The transmission fluid level must be at the upper level of the crosshatch mark. NOTE: If the installation of a new transmission fluid cooler or transmission fluid cooler tubes has been carried out, the vehicle must be driven to get the transmission fluid to a temperature of 88ºC (190ºF) in order to purge the air from the transmission fluid cooling system. 1. With the engine running, place the transmission selector lever in each gear position and hold approximately 5 seconds. Place the transmission selector lever in PARK. 2. With the engine idling (600-750 rpm) in PARK, position it on a hoist. For additional information, refer to Section 100-02. 3. E128713 4. E128714 5. E128715 6. E128716 7. NOTE: If the transmission fluid is not at the correct level, follow the steps for Adding Additional Transmission Fluid or Removing Transmission Fluid. For additional information, refer to Transmission Fluid Drain and Refill in this section
