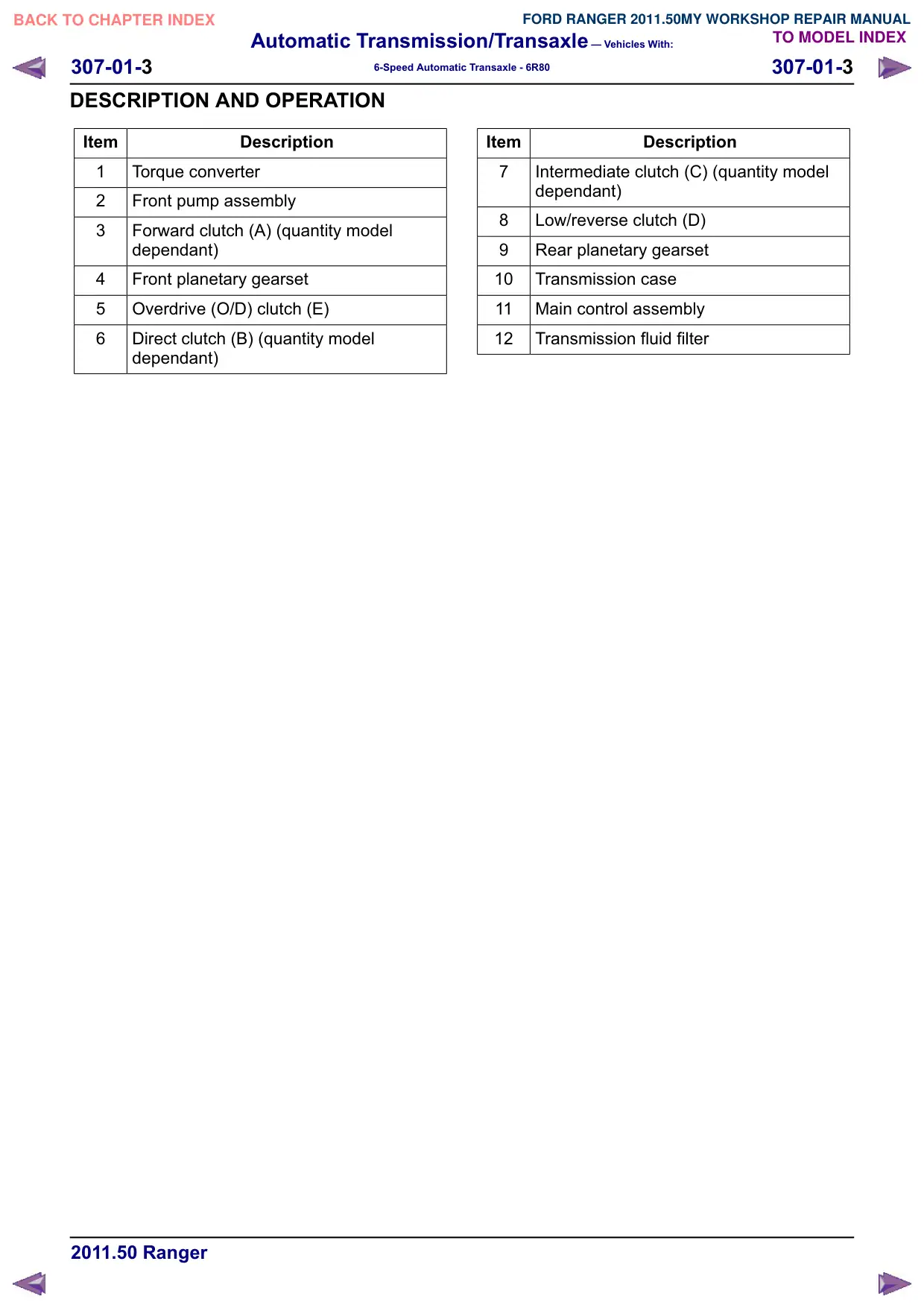

Automatic Transmission/Transaxle – Vehicles With:
307-01-3
307-01-3
6-Speed Automatic Transaxle - 6R80
DESCRIPTION AND OPERATION
Item
Description
1
Torque converter
2
Front pump assembly
3
Forward clutch (A) (quantity model
dependant)
4
Front planetary gearset
5
Overdrive (O/D) clutch (E)
6
Direct clutch (B) (quantity model
dependant)
Item
Description
7
Intermediate clutch (C) (quantity model
dependant)
8
Low/reverse clutch (D)
Rear planetary gearset
10
Transmission case
11
Main control assembly
12
Transmission fluid filter
