Módulo de controle do trem de força (PCM)

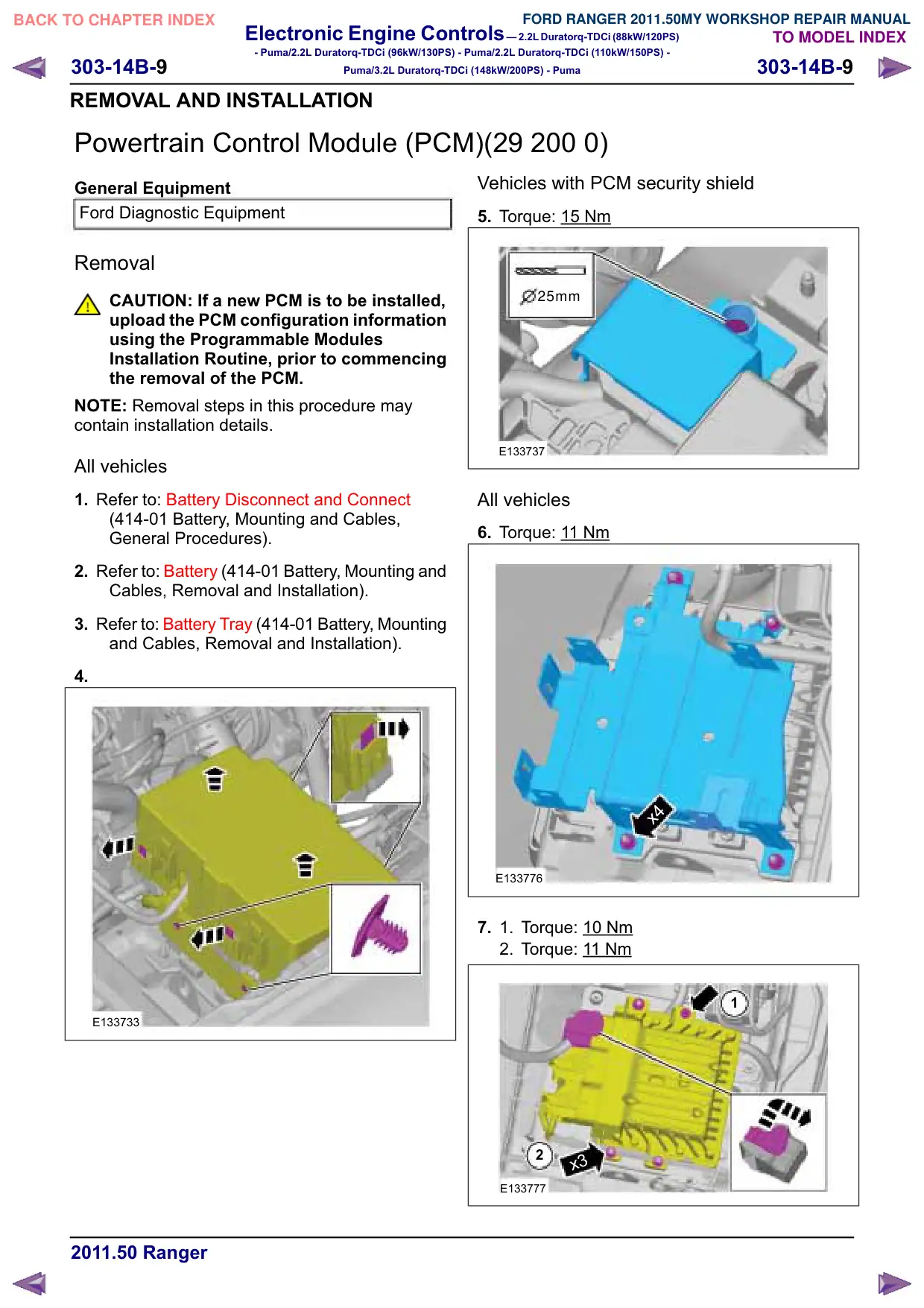

Electronic Engine Controls – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - 303-14B- 303-14B- Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION Powertrain Control Module (PCM)(29 200 0) General Equipment Ford Diagnostic Equipment Removal CAUTION: If a new PCM is to be installed, upload the PCM configuration information using the Programmable Modules Installation Routine, prior to commencing the removal of the PCM. NOTE: Removal steps in this procedure may contain installation details. All vehicles 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation). 3. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation). 4. E133733 Vehicles with PCM security shield 5. Torque: 15 Nm 25mm E133737 All vehicles 6. Torque: 1 Nm 1 x4 E133776 7. 1. Torque: 10 Nm 2. Torque: 11 Nm 1 2 x3 E133777
