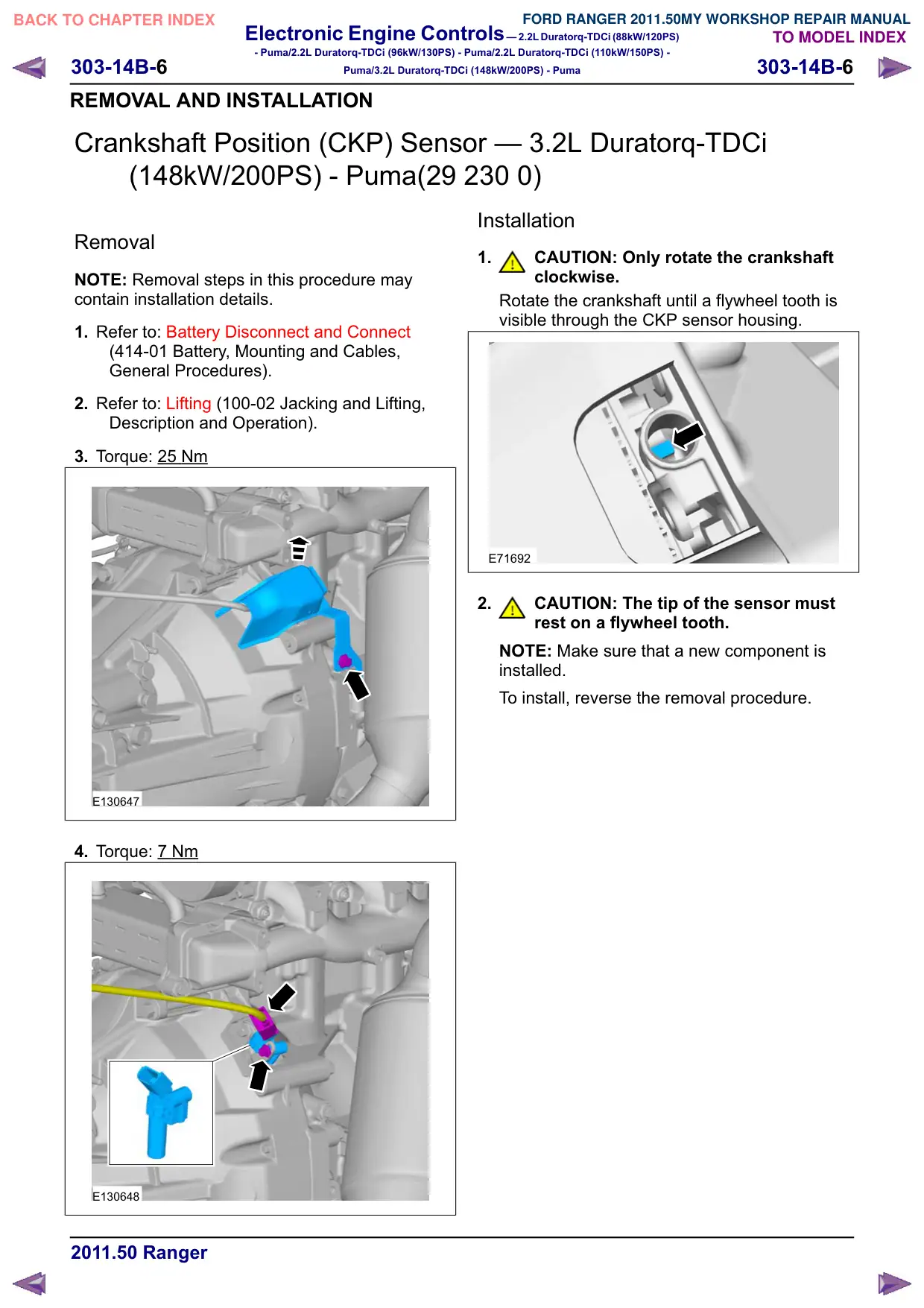

Sensor de posição do virabrequim (CKP) – 3.2L Duratorq-TDCi

Electronic Engine Controls – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - 303-14B-6 303-14B-6 Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION Crankshaft Position (CKP) Sensor – 3.2L Duratorq-TDCi (148kW/200PS) - Puma(29 230 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Torque: 25 Nm E130647 4. Torque: 7 Nm E130648 Installation 1. CAUTION: Only rotate the crankshaft clockwise. Rotate the crankshaft until a flywheel tooth is visible through the CKP sensor housing. E71692 2. CAUTION: The tip of the sensor must rest on a flywheel tooth. NOTE: Make sure that a new component is installed. To install, reverse the removal procedure.
