Filtro de ar – 3.2L Duratorq-TDCi (148kW/200PS) -

Air Cleaner – 3.2L Duratorq-TDCi (148kW/200PS) -

Oficina · página 852 de 1428 · 303-12B-5 · motor 3.2

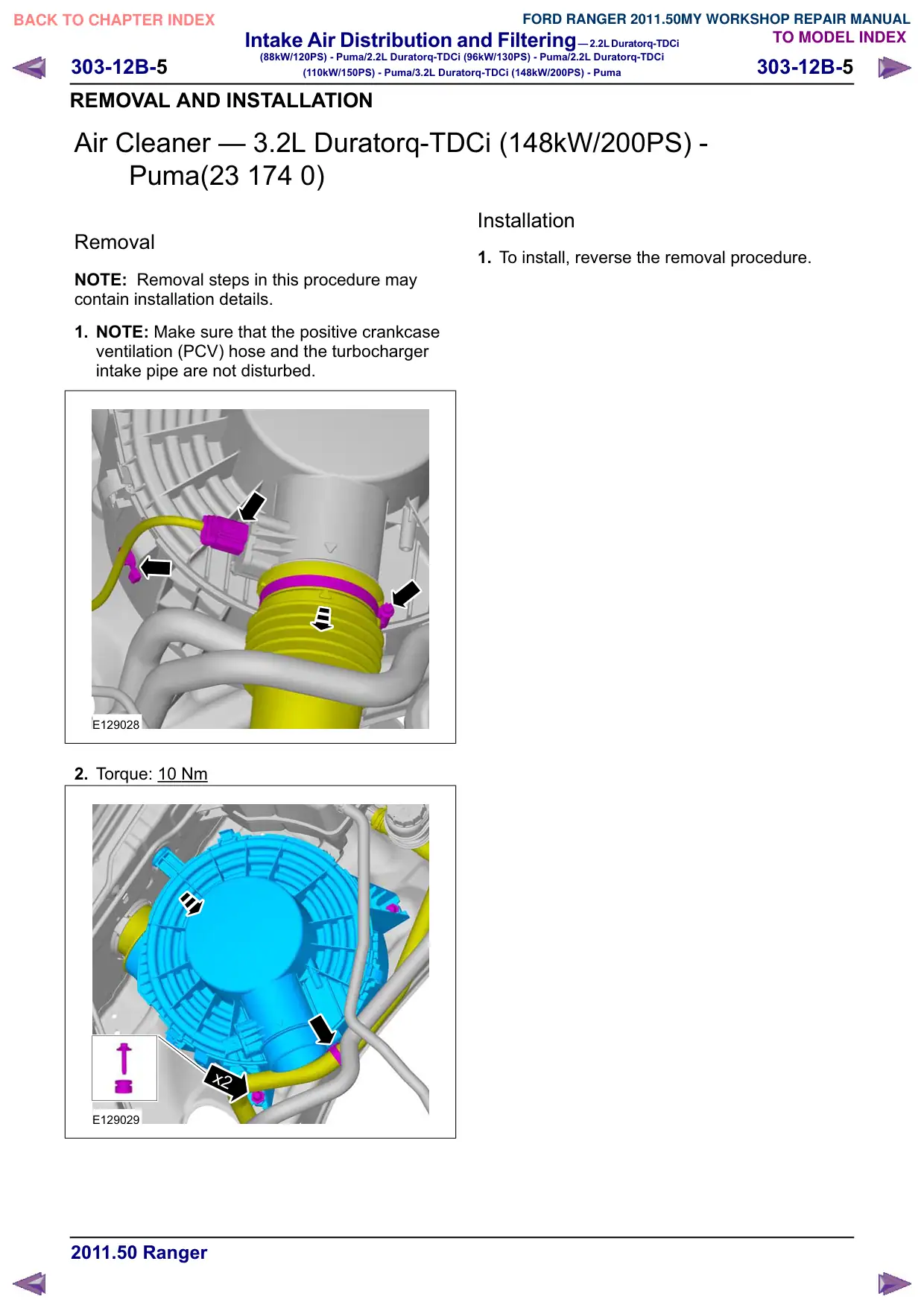

Página 852 do Manual de Oficina: Filtro de ar – 3.2L Duratorq-TDCi (148kW/200PS) -

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/852
Imagem: https://ranger.mbrace.com.br/img/oficina/852.webp

Intake Air Distribution and Filtering–2.2LDuratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi 303-12B-5 303-12B-5 (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION Air Cleaner – 3.2L Duratorq-TDCi (148kW/200PS) - Puma(23 174 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. NOTE: Make sure that the positive crankcase ventilation (PCV) hose and the turbocharger intake pipe are not disturbed. E129028 2. Torque: 10 Nm x2 E129029 Installation 1. To install, reverse the removal procedure.
