Página 848 · Índice da seção
Contents
https://ranger.mbrace.com.br/oficina/848 · imagem: https://ranger.mbrace.com.br/img/oficina/848.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-1
303-12B-1
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
.
SECTION 303-12B Intake Air Distribution and Filtering
– 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
VEHICLE APPLICATION: 2011.50 Ranger
CONTENTS
DESCRIPTION AND OPERATION
Intake Air Distribution and Filtering.....................................................................................
REMOVAL AND INSTALLATION
Air Cleaner – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi
(96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma..........
Air Cleaner – 3.2L Duratorq-TDCi (148kW/200PS) - Puma.........................
Charge Air Cooler...........................................................................................
PAGE
303-12B-2
(23 174 0)
303-12B-4
(23 174 0)
303-12B-5
(23 620 0)
303-12B-6

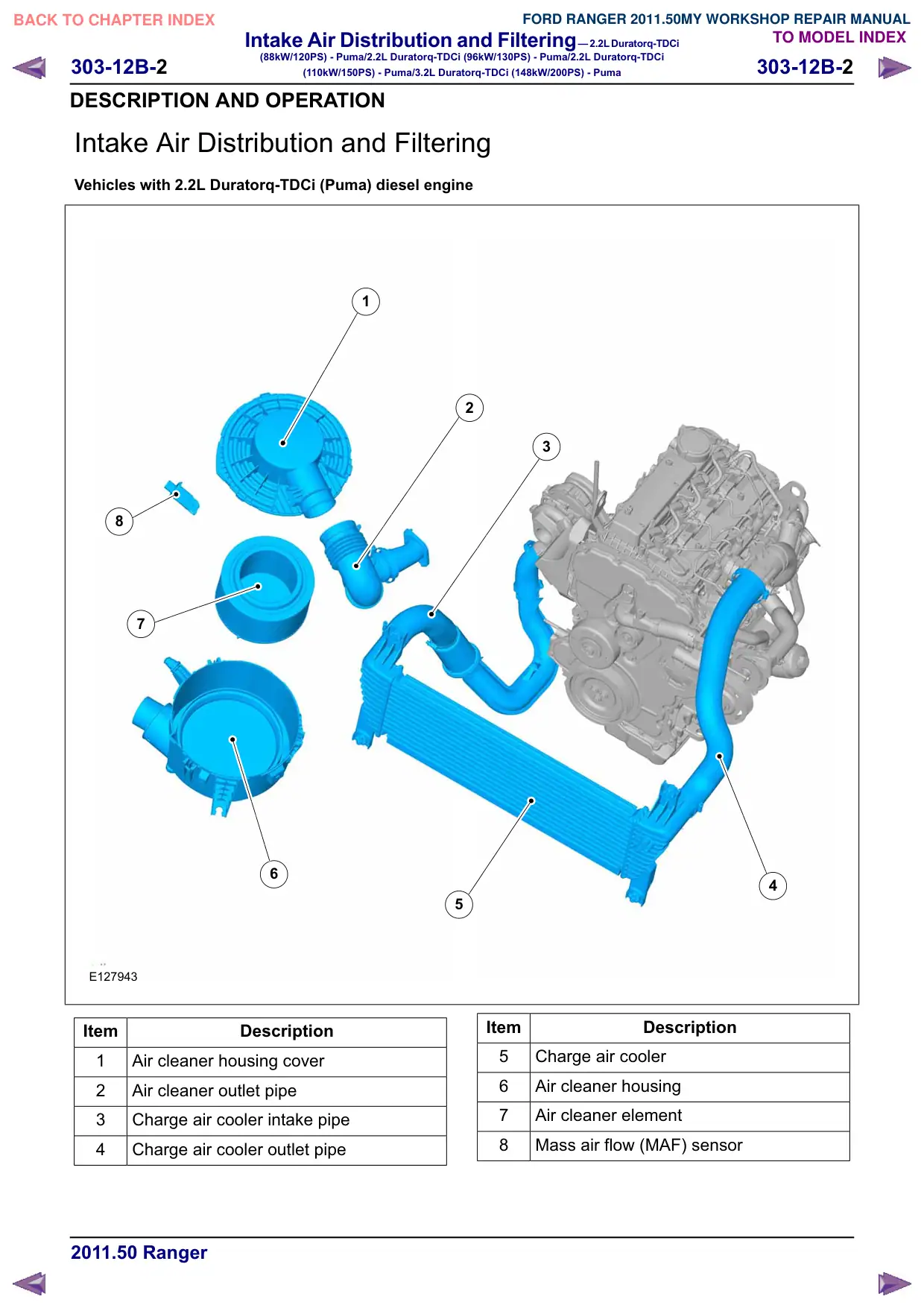

Página 849 · Distribuição e filtragem do ar de admissão
Intake Air Distribution and Filtering
https://ranger.mbrace.com.br/oficina/849 · imagem: https://ranger.mbrace.com.br/img/oficina/849.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-2
303-12B-2
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
DESCRIPTION AND OPERATION
Intake Air Distribution and Filtering
Vehicles with 2.2L Duratorq-TDCi (Puma) diesel engine
1
8
7
6
E127943
Item
Description
1
Air cleaner housing cover
2
Air cleaner outlet pipe
3
Charge air cooler intake pipe
4
Charge air cooler outlet pipe
2
3
4
5
Item
Description
5
Charge air cooler
6
Air cleaner housing
7
Air cleaner element
8
Mass air flow (MAF) sensor

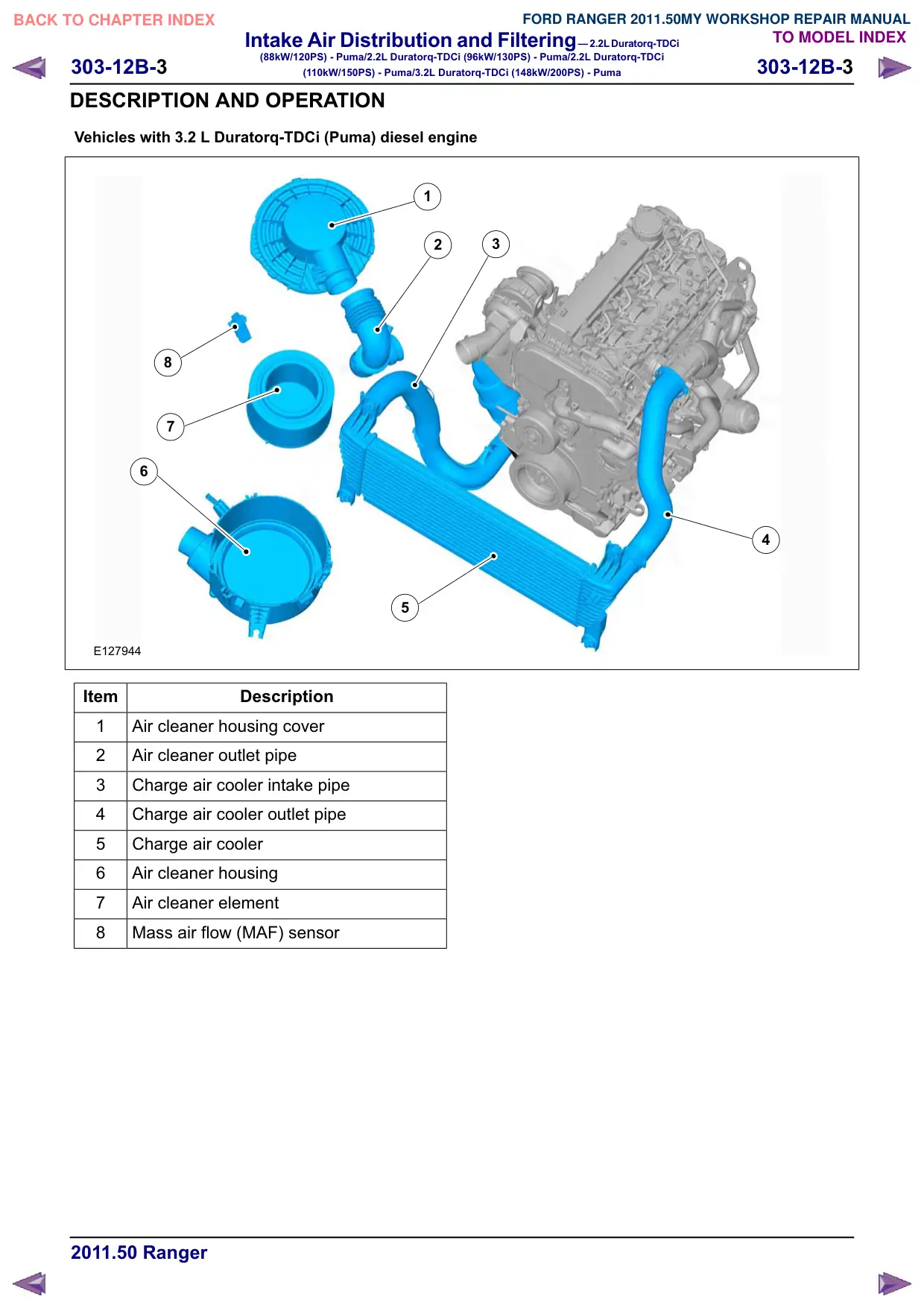

Página 850 · Distribuição e filtragem do ar de admissão
Intake Air Distribution and Filtering
https://ranger.mbrace.com.br/oficina/850 · imagem: https://ranger.mbrace.com.br/img/oficina/850.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-3
303-12B-3
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
DESCRIPTION AND OPERATION
Vehicles with 3.2 L Duratorq-TDCi (Puma) diesel engine
1
8
7
6
5
E127944
Item
Description
1
Air cleaner housing cover
2
Air cleaner outlet pipe
3
Charge air cooler intake pipe
4
Charge air cooler outlet pipe
5
Charge air cooler
6
Air cleaner housing
7
Air cleaner element
8
Mass air flow (MAF) sensor
2
3
4
Página 851 · Filtro de ar – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L
Air Cleaner – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L
https://ranger.mbrace.com.br/oficina/851 · imagem: https://ranger.mbrace.com.br/img/oficina/851.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-4
303-12B-4
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
REMOVAL AND INSTALLATION
Air Cleaner – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L
Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
(110kW/150PS) - Puma(23 174 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. NOTE: This step is applicable for FGT engines
only.
E130561
2. NOTE: Make sure that the positive crankcase
ventilation (PCV) hose and the turbocharger
intake pipe are not disturbed.
1
3
2
E127851
3. Torque: 10 Nm
x2
E129029
Installation
1. To install, reverse the removal procedure.
Página 852 · Filtro de ar – 3.2L Duratorq-TDCi (148kW/200PS) -
Air Cleaner – 3.2L Duratorq-TDCi (148kW/200PS) -
https://ranger.mbrace.com.br/oficina/852 · imagem: https://ranger.mbrace.com.br/img/oficina/852.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-5
303-12B-5
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
REMOVAL AND INSTALLATION
Air Cleaner – 3.2L Duratorq-TDCi (148kW/200PS) -
Puma(23 174 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. NOTE: Make sure that the positive crankcase
ventilation (PCV) hose and the turbocharger
intake pipe are not disturbed.
E129028
2. Torque: 10 Nm
x2
E129029
Installation
1. To install, reverse the removal procedure.
Página 853 · Intercooler (CAC)
Charge Air Cooler
https://ranger.mbrace.com.br/oficina/853 · imagem: https://ranger.mbrace.com.br/img/oficina/853.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-6
303-12B-6
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
REMOVAL AND INSTALLATION
Charge Air Cooler(23 620 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
E127554
2.
E127555
1.
x3
x2
Página 854 · Intercooler (CAC)
Charge Air Cooler
https://ranger.mbrace.com.br/oficina/854 · imagem: https://ranger.mbrace.com.br/img/oficina/854.webp
Intake Air Distribution and Filtering–2.2LDuratorq-TDCi
(88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi
303-12B-7
303-12B-7
(110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
REMOVAL AND INSTALLATION
3. Torque: 10 Nm
x3
E130964
1
2
E127791
6.
3.
Torque: 10
Nm
4. Torque: 10 Nm
x2
3
1
4
2
x2
E131826
Installation
1. To install, reverse the removal procedure.
4. Torque: 10 Nm
E131825
5.
CAUTION: Make sure that the inside of
the pipe ends are clean and free of oil
residue.
1
2
