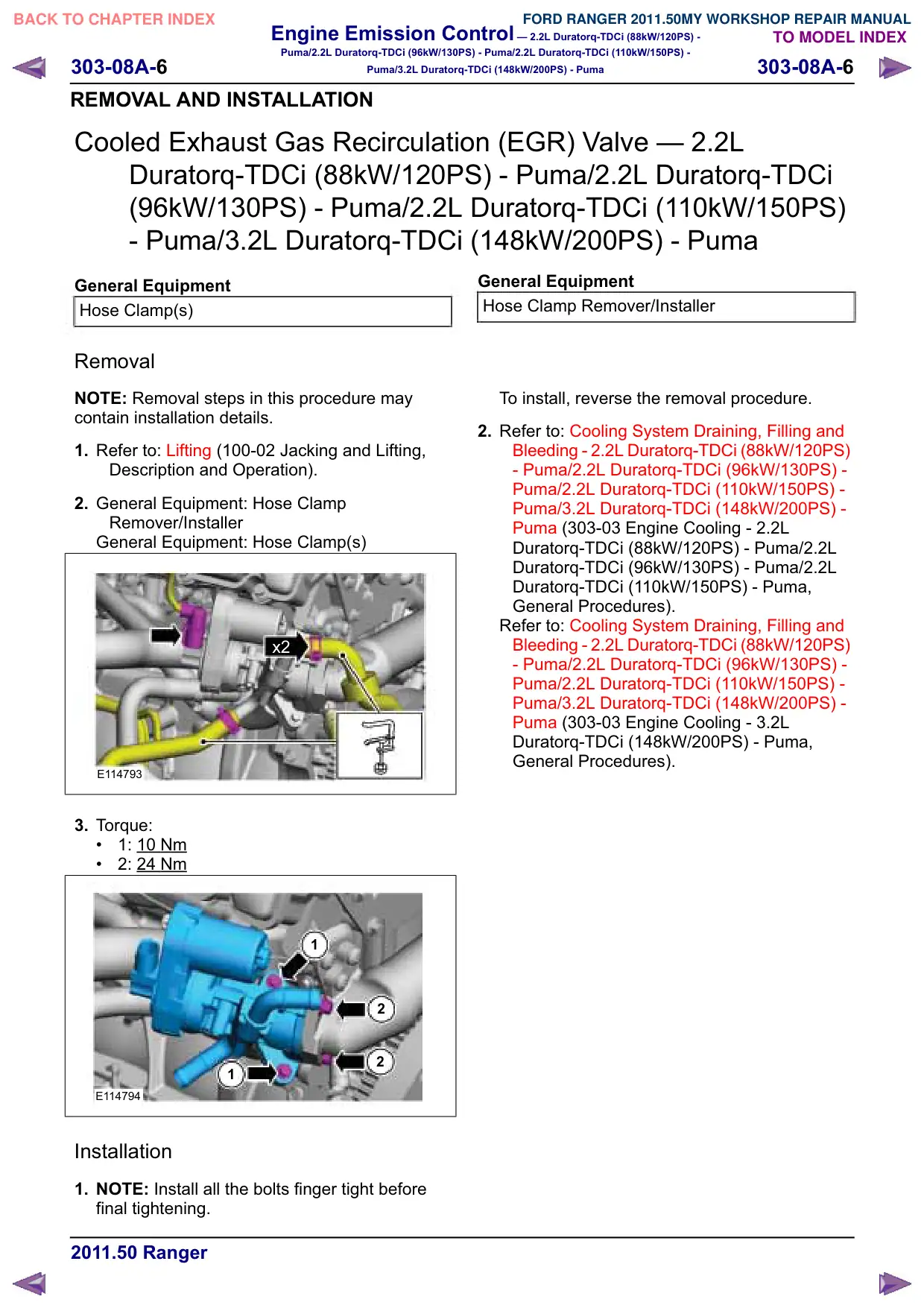

Válvula EGR refrigerada – 2.2L

Engine Emission Control – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - 303-08A-6 303-08A-6 Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma REMOVAL AND INSTALLATION Cooled Exhaust Gas Recirculation (EGR) Valve – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma General Equipment Hose Clamp(s) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. General Equipment: Hose Clamp Remover/Installer General Equipment: Hose Clamp(s) x2 E114793 3. Torque: ‡ 1: 10 Nm ‡ 2: 24 Nm 1 2 2 1 E114794 Installation 1. NOTE: Install all the bolts finger tight before final tightening. General Equipment Hose Clamp Remover/Installer To install, reverse the removal procedure. 2. Refer to: Cooling System Draining, Filling and Bleeding - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-03 Engine Cooling - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma, General Procedures). Refer to: Cooling System Draining, Filling and Bleeding - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-03 Engine Cooling - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, General Procedures).
