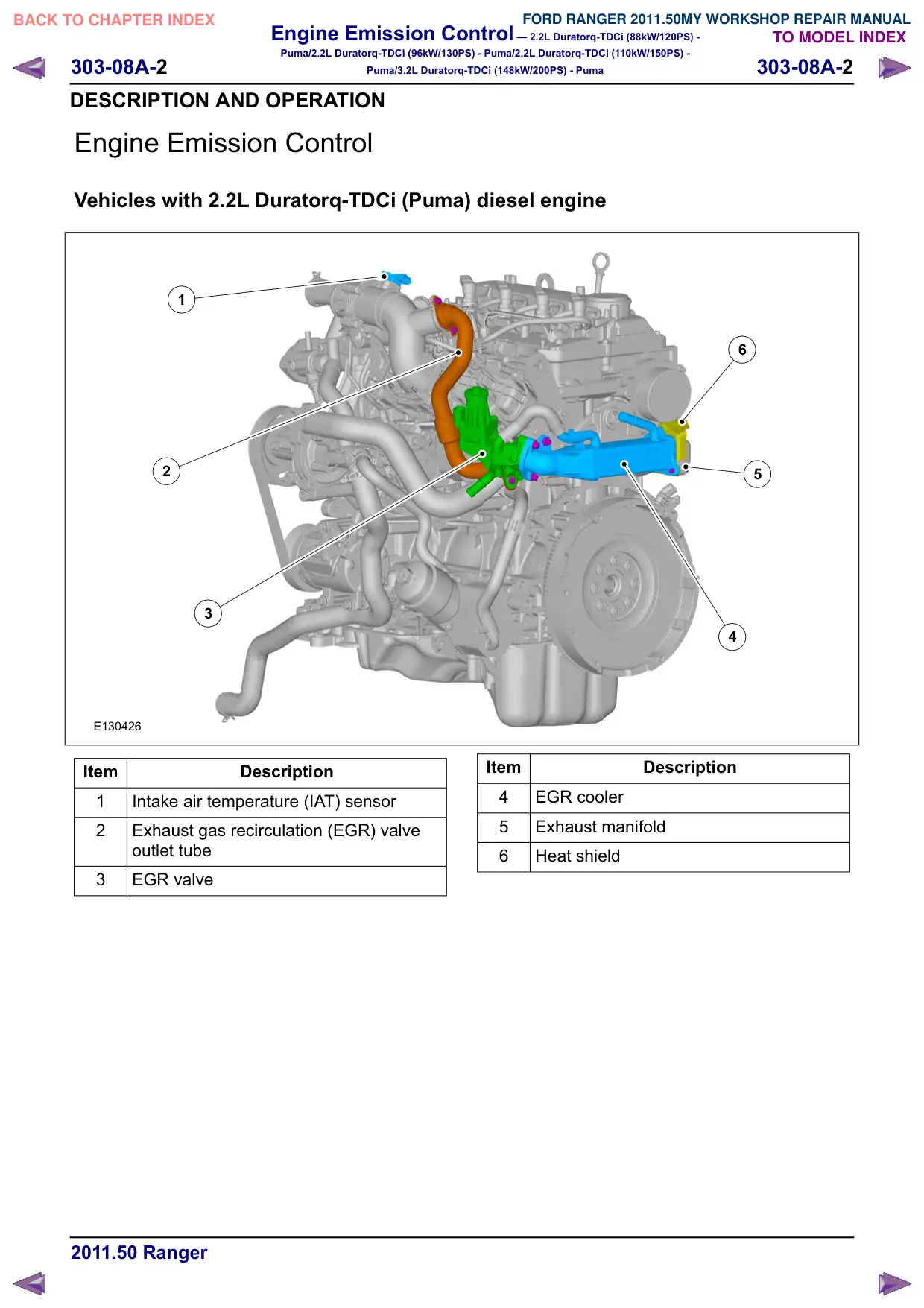

Engine Emission Control – 2.2L Duratorq-TDCi (88kW/120PS) -
Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) -
303-08A-2
303-08A-2
Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma
DESCRIPTION AND OPERATION
Engine Emission Control
Vehicles with 2.2L Duratorq-TDCi (Puma) diesel engine
1
2
3
E130426
Item
Description
1
Intake air temperature (IAT) sensor
2
Exhaust gas recirculation (EGR) valve
outlet tube
3
EGR valve
6
5
4
Item
Description
4
EGR cooler
5
Exhaust manifold
6
Heat shield
