Turbocompressor (turbina) – 3.2L Duratorq-TDCi (148kW/200PS) - Puma,

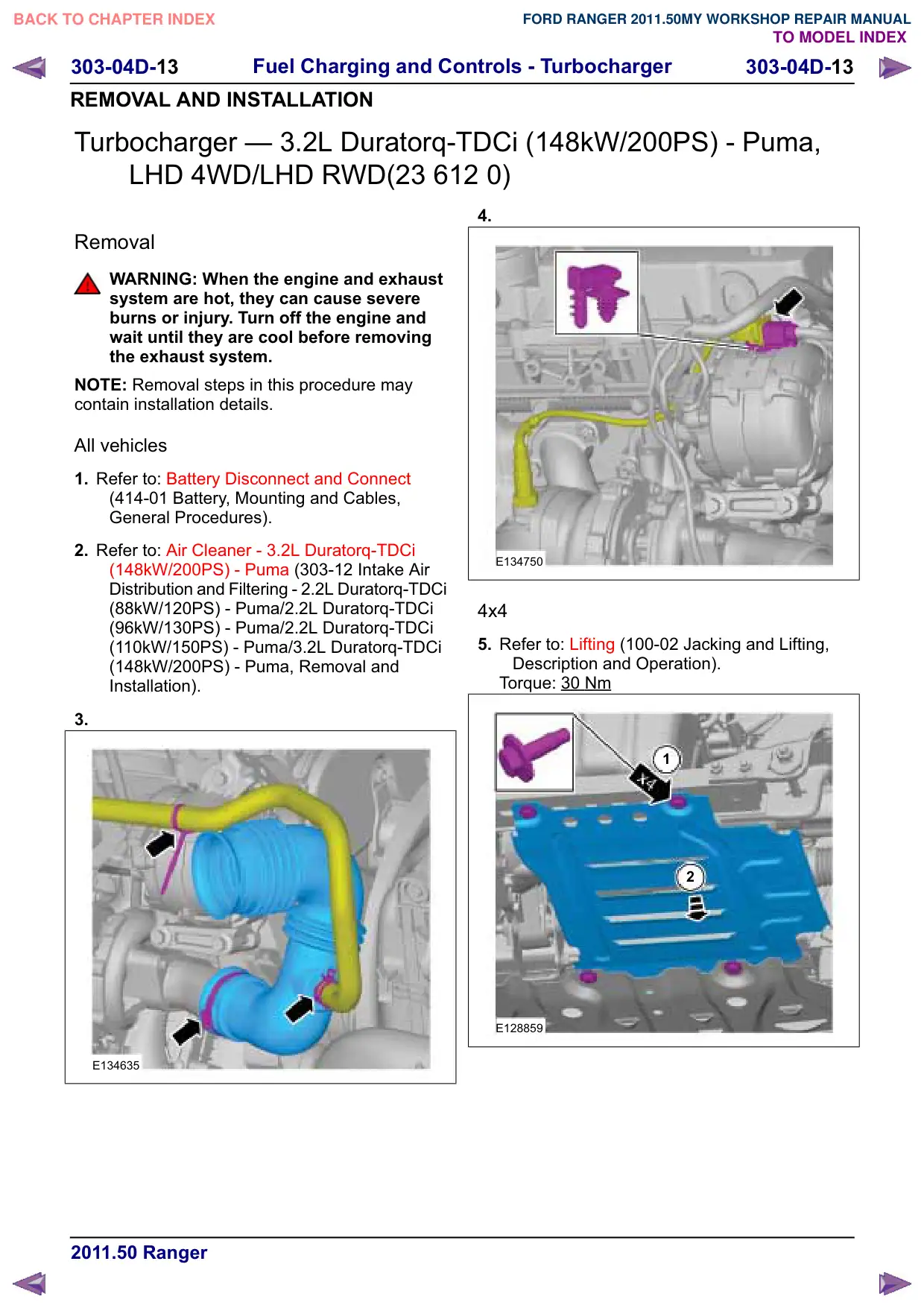

303-04D-13 Fuel Charging and Controls - Turbocharger 303-04D-13 REMOVAL AND INSTALLATION Turbocharger – 3.2L Duratorq-TDCi (148kW/200PS) - Puma, LHD 4WD/LHD RWD(23 612 0) Removal WARNING: When the engine and exhaust system are hot, they can cause severe burns or injury. Turn off the engine and wait until they are cool before removing the exhaust system. NOTE: Removal steps in this procedure may contain installation details. All vehicles 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Air Cleaner - 3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-12 Intake Air Distribution and Filtering - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 3. E134635 4. E134750 4x4 5. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). Torque: 30 Nm 1 2 E128859
