Alimentação de combustível e controles

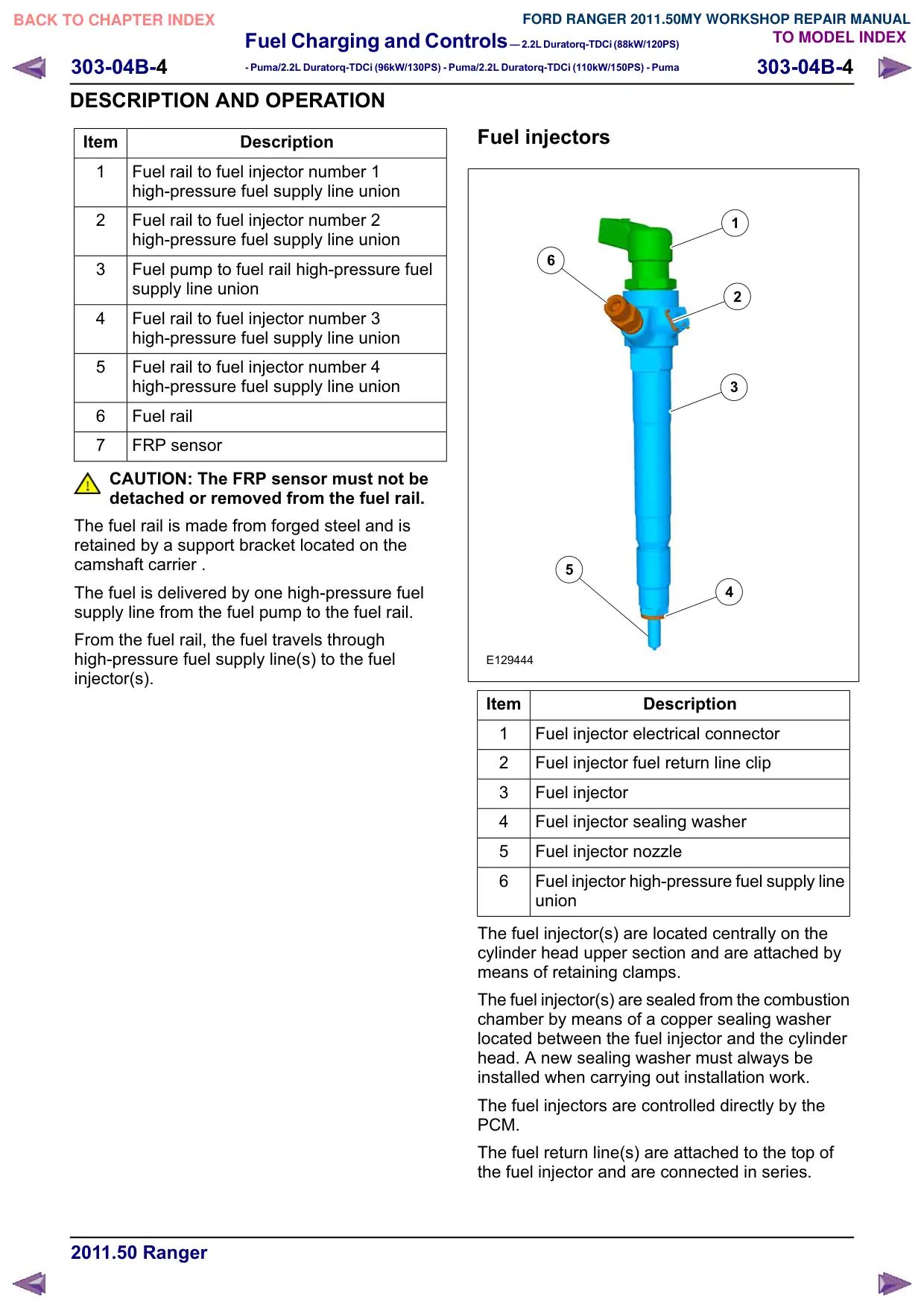

Fuel Charging and Controls – 2.2L Duratorq-TDCi (88kW/120PS) 303-04B-3 303-04B-3 - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma DESCRIPTION AND OPERATION Fuel pump 3 1 2 7 E129442 Item Description 1 Fuel pump high-pressure outlet union 2 Fuel pump fuel return union 3 Fuel metering valve 4 Fuel temperature sensor 5 Fuel pump O-ring seal 6 Fuel pump input drive 7 Fuel pump fuel supply union Fuel rail 1 2 3 E129443 5 4 6 The fuel pump is driven directly by the intake camshaft and is located at the rear of the cylinder head. The fuel pump has three pump elements, each offset from each other by 120 degrees. The fuel transfer pump is incorporated into the fuel pump and is located on the drive flange. The fuel transfer pump is a cycloid type pump. The fuel metering valve is actuated by the PCM using pulse width modulation. 4 5 6 7
