303-03C-13
Engine Cooling
303-03C-13
REMOVAL AND INSTALLATION

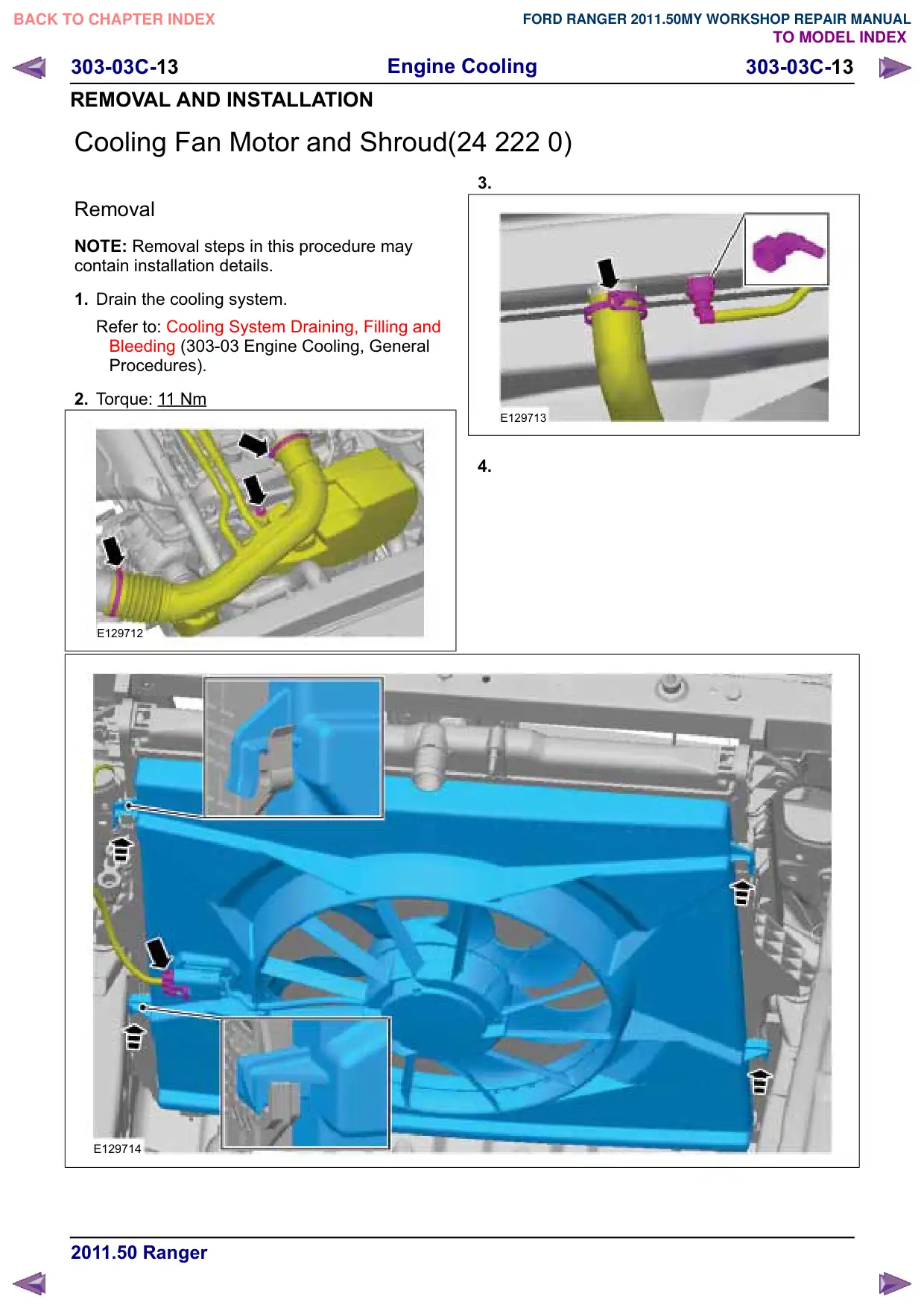

Cooling Fan Motor and Shroud(24 222 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Drain the cooling system.
Refer to: Cooling System Draining, Filling and
Bleeding (303-03 Engine Cooling, General
Procedures).
2. Torque: 1
1 Nm
E129712
E129714
3.
E129713
4.
