Retentor traseiro do virabrequim

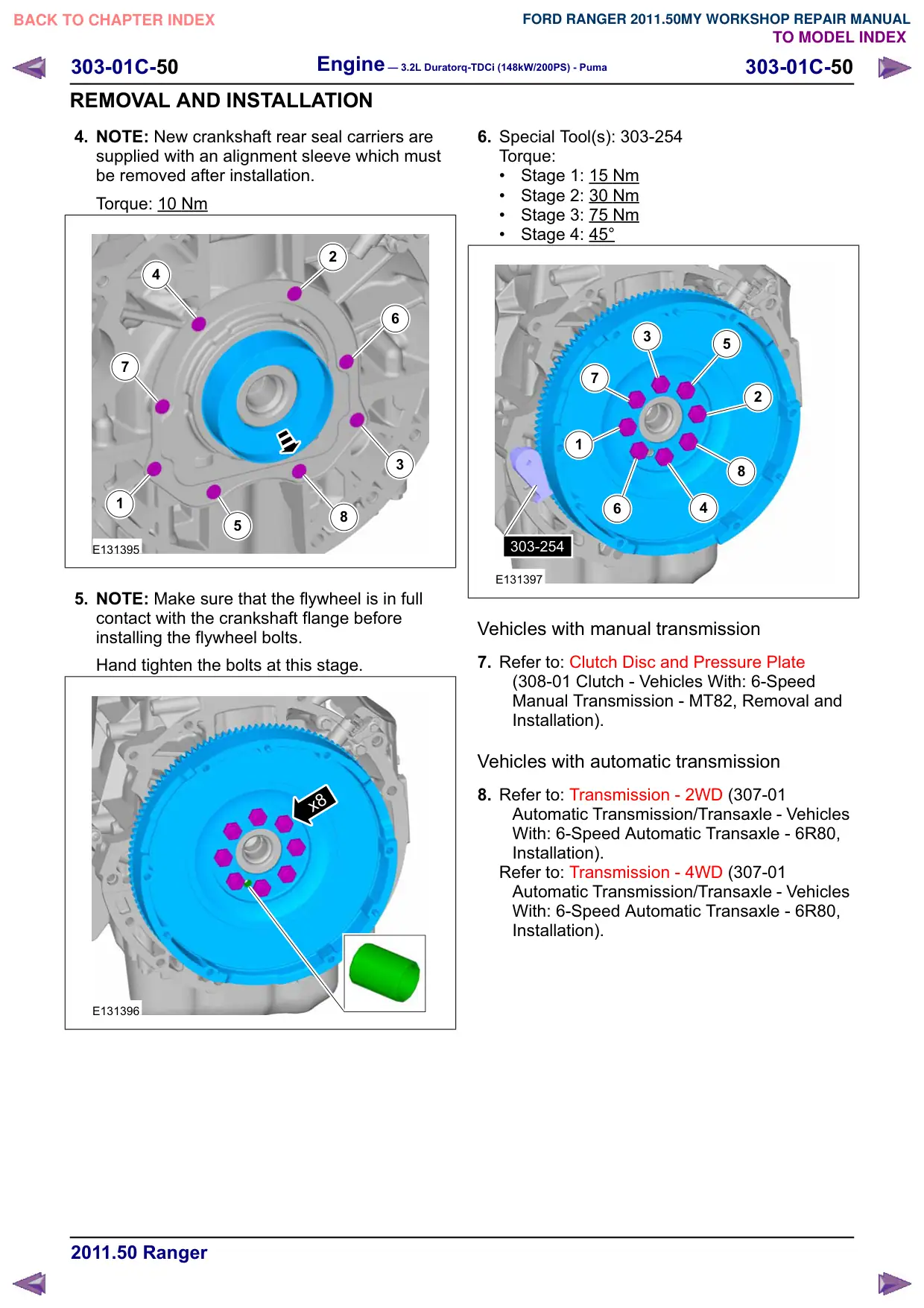

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-50 303-01C-50 REMOVAL AND INSTALLATION 4. NOTE: New crankshaft rear seal carriers are supplied with an alignment sleeve which must be removed after installation. Torque: 10 Nm 2 4 6 7 3 1 8 5 E131395 5. NOTE: Make sure that the flywheel is in full contact with the crankshaft flange before installing the flywheel bolts. Hand tighten the bolts at this stage. x8 E131396 6. Special Tool(s): 303-254 Torque: ‡ Stage 1: 15 Nm ‡ Stage 2: 30 Nm ‡ Stage 3: 75 Nm ‡ Stage 4: 45° 3 5 7 2 1 8 6 4 303-254 E131397 Vehicles with manual transmission 7. Refer to: Clutch Disc and Pressure Plate (308-01 Clutch - Vehicles With: 6-Speed Manual Transmission - MT82, Removal and Installation). Vehicles with automatic transmission 8. Refer to: Transmission - 2WD (307-01 Automatic Transmission/Transaxle - Vehicles With: 6-Speed Automatic Transaxle - 6R80, Installation). Refer to: Transmission - 4WD (307-01 Automatic Transmission/Transaxle - Vehicles With: 6-Speed Automatic Transaxle - 6R80, Installation).
