Bomba de óleo

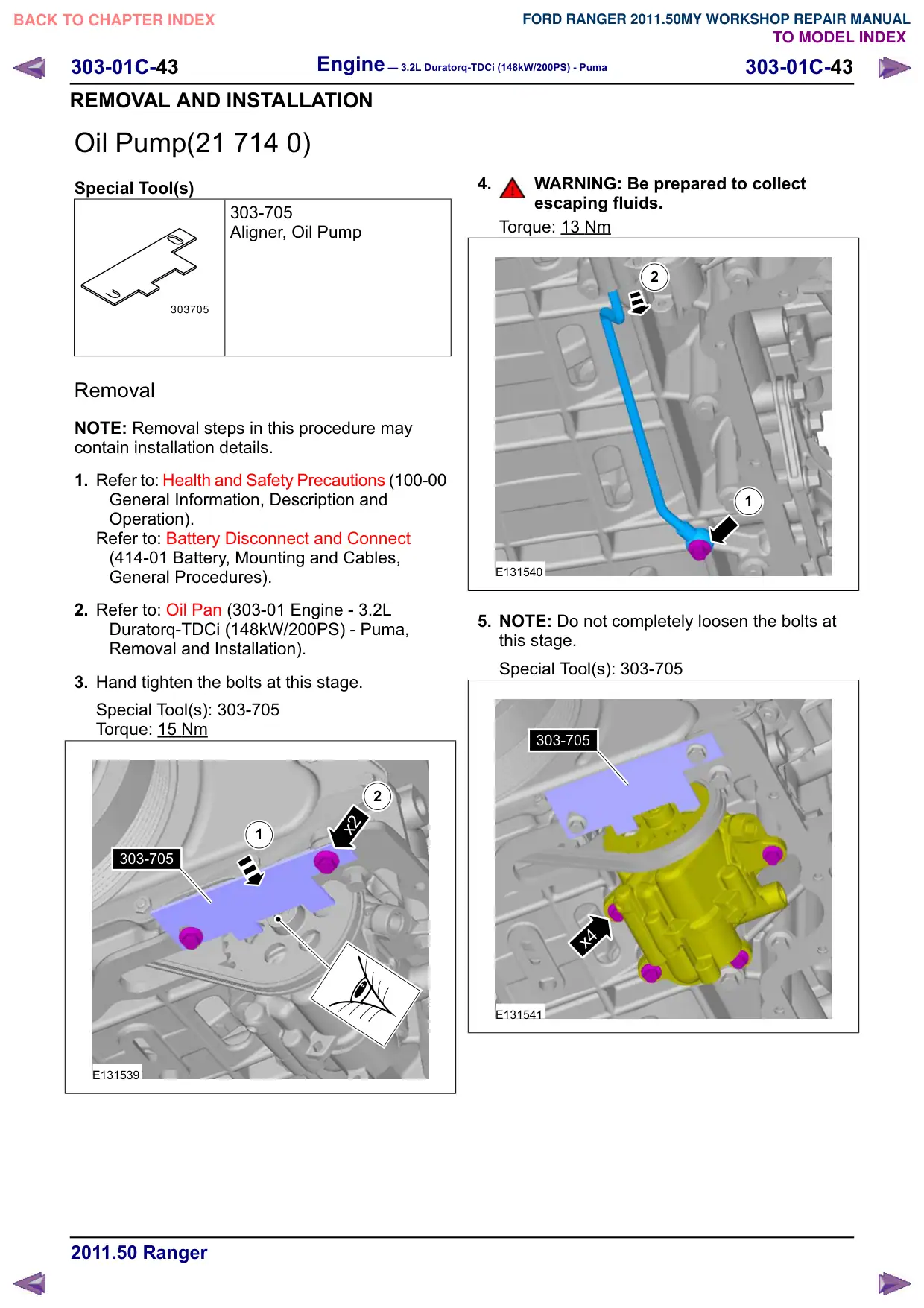

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-43 303-01C-43 REMOVAL AND INSTALLATION Oil Pump(21 714 0) Special Tool(s) 303-705 Aligner, Oil Pump 303705 Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Oil Pan (303-01 Engine - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 3. Hand tighten the bolts at this stage. Special Tool(s): 303-705 Torque: 15 Nm 2 x2 1 303-705 E131539 4. WARNING: Be prepared to collect escaping fluids. Torque: 13 Nm 2 1 E131540 5. NOTE: Do not completely loosen the bolts at this stage. Special Tool(s): 303-705 303-705 x4 E131541
