Cárter

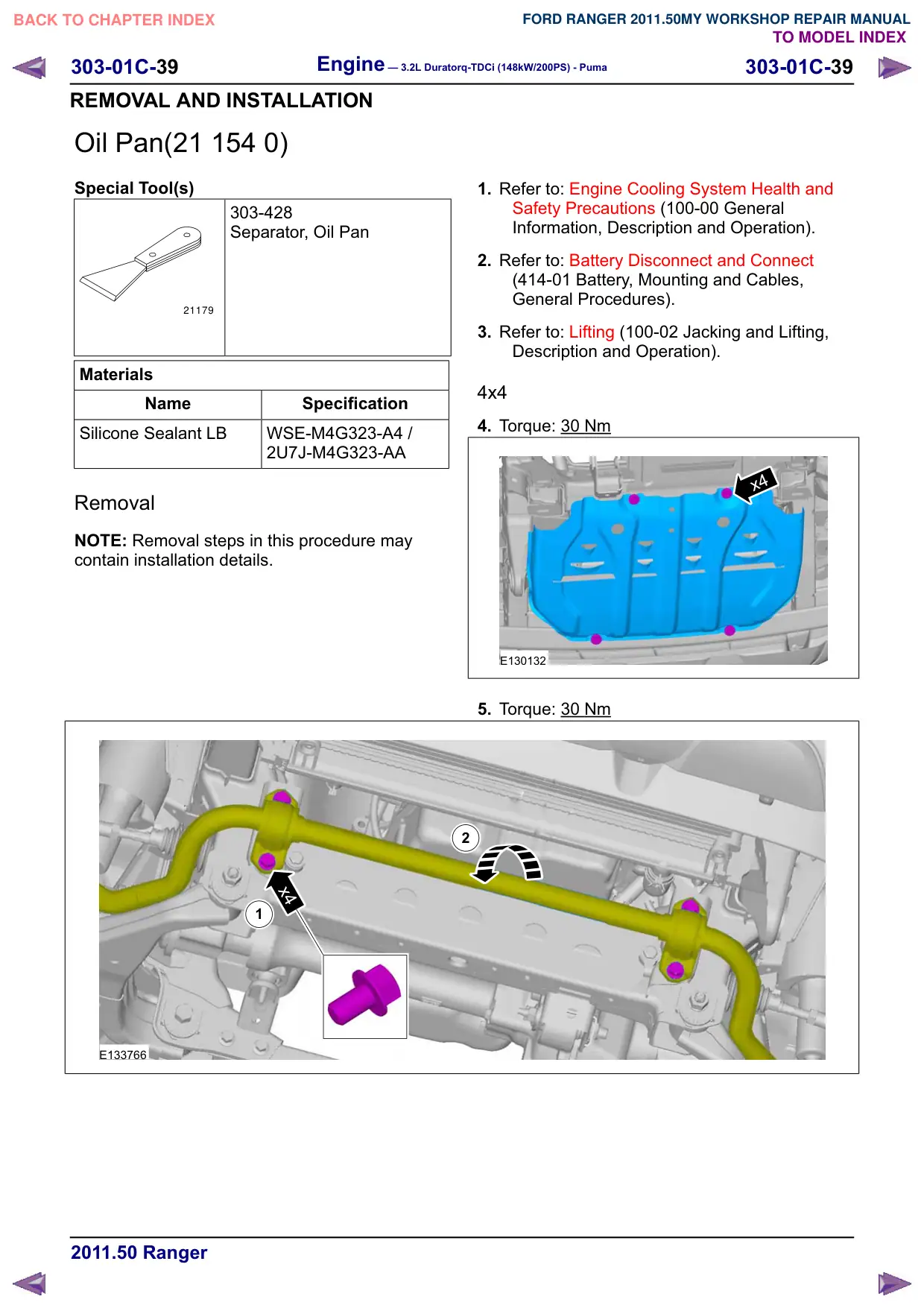

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-39 303-01C-39 REMOVAL AND INSTALLATION Oil Pan(21 154 0) Special Tool(s) 303-428 Separator, Oil Pan 21179 Materials Name Specification Silicone Sealant LB WSE-M4G323-A4 / 2U7J-M4G323-AA Removal NOTE: Removal steps in this procedure may contain installation details. x4 1 E133766 1. Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 4x4 4. Torque: 30 Nm x4 E130132 5. Torque: 30 Nm 2
