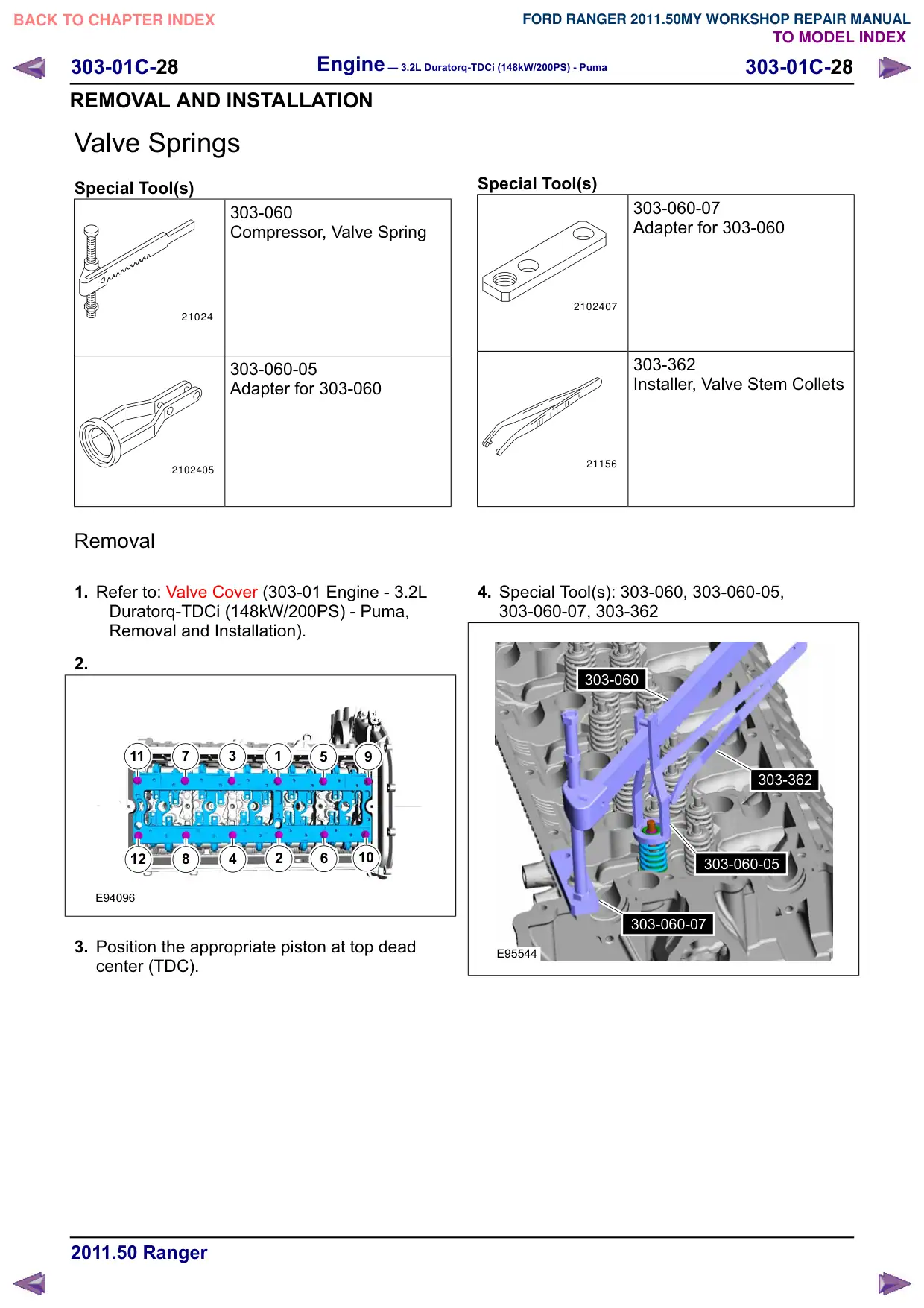

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma
303-01C-28
303-01C-28
REMOVAL AND INSTALLATION
Valve Springs
Special Tool(s)
303-060
Compressor, Valve Spring
21024
303-060-05
Adapter for 303-060
2102405
Removal
1. Refer to: Valve Cover (303-01 Engine - 3.2L
Duratorq-TDCi (148kW/200PS) - Puma,
Removal and Installation).
2.
x12
11
7
3
1
5
12
8
4
2
6
10
E94096
3. Position the appropriate piston at top dead
center (TDC).
Special Tool(s)
303-060-07
Adapter for 303-060
2102407
303-362
Installer, Valve Stem Collets
21156
4. Special Tool(s): 303-060, 303-060-05,
303-060-07, 303-362
303-060
303-362
303-060-05
303-060-07
303-060-07
E95544
