Eixos de comando

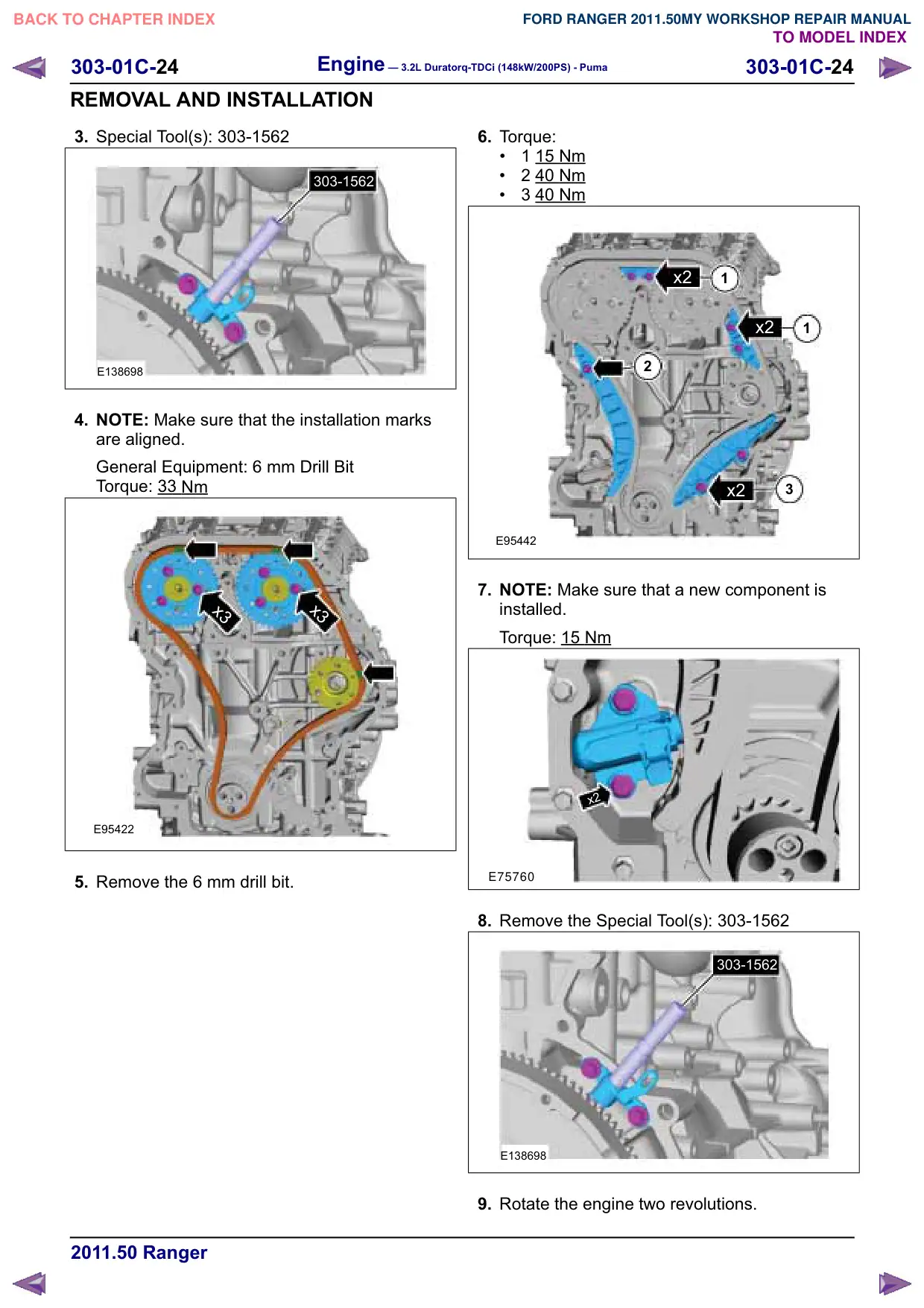

303-01C-24 Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-24 REMOVAL AND INSTALLATION 3. Special Tool(s): 303-1562 303-1562 E138698 4. NOTE: Make sure that the installation marks are aligned. General Equipment: 6 mm Drill Bit Torque: 33 Nm x3 x3 E95422 5. Remove the 6 mm drill bit. 6. Torque: ‡ 1 15 Nm ‡ 2 40 Nm ‡ 3 40 Nm x2 1 x2 1 2 x2 3 E95442 7. NOTE: Make sure that a new component is installed. Torque: 15 Nm x2 E75760 8. Remove the Special Tool(s): 303-1562 303-1562 E138698 9. Rotate the engine two revolutions.
