Eixos de comando

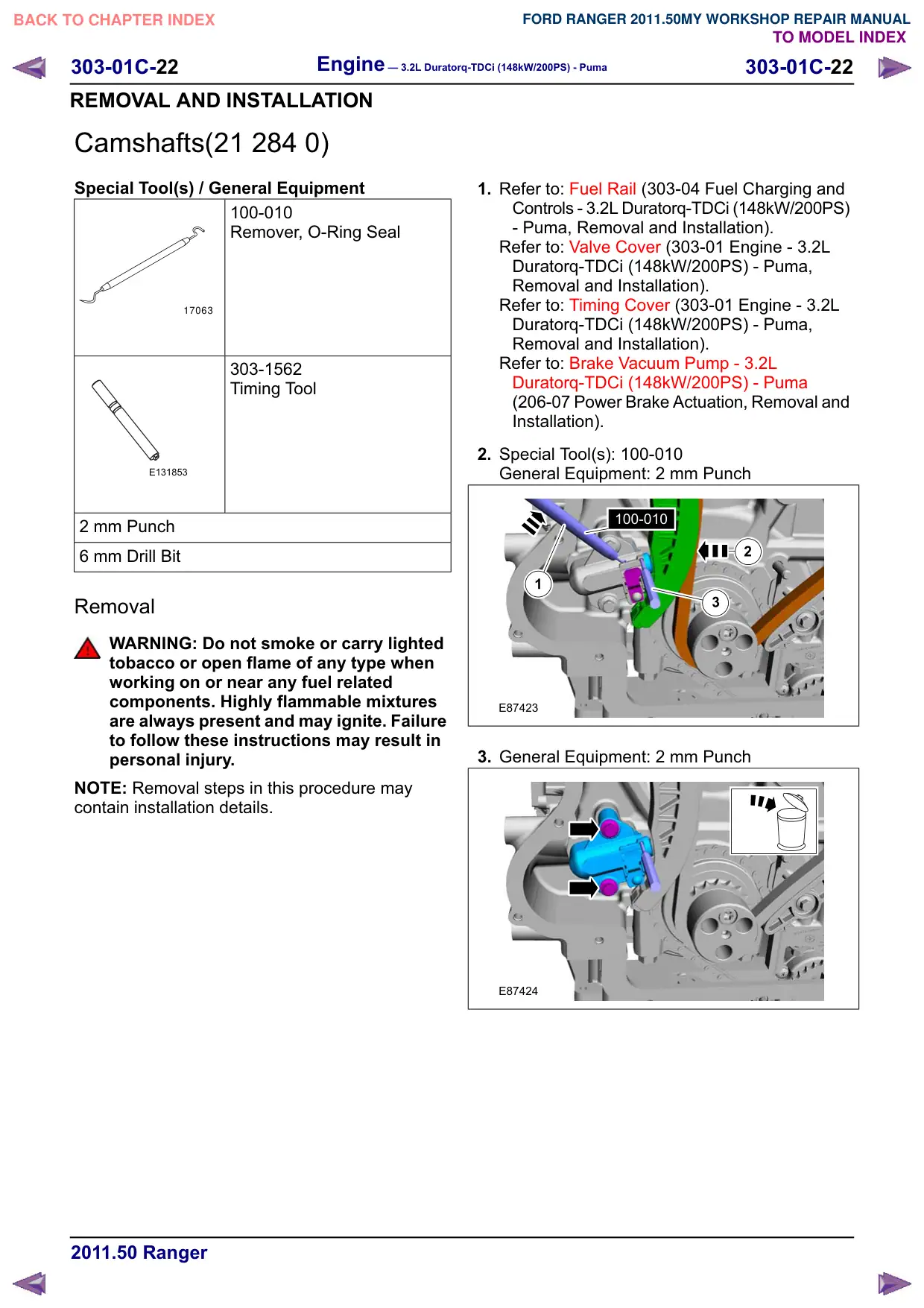

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-22 303-01C-22 REMOVAL AND INSTALLATION Camshafts(21 284 0) Special Tool(s) / General Equipment 100-010 Remover, O-Ring Seal 17063 303-1562 Timing Tool E131853 2 mm Punch 6 mm Drill Bit Removal WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Fuel Rail (303-04 Fuel Charging and Controls - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). Refer to: Valve Cover (303-01 Engine - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). Refer to: Timing Cover (303-01 Engine - 3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). Refer to: Brake Vacuum Pump - 3.2L Duratorq-TDCi (148kW/200PS) - Puma (206-07 Power Brake Actuation, Removal and Installation). 2. Special Tool(s): 100-010 General Equipment: 2 mm Punch 100-010 100-010 2 2 1 1 3 3 E87423 3. General Equipment: 2 mm Punch E87424
