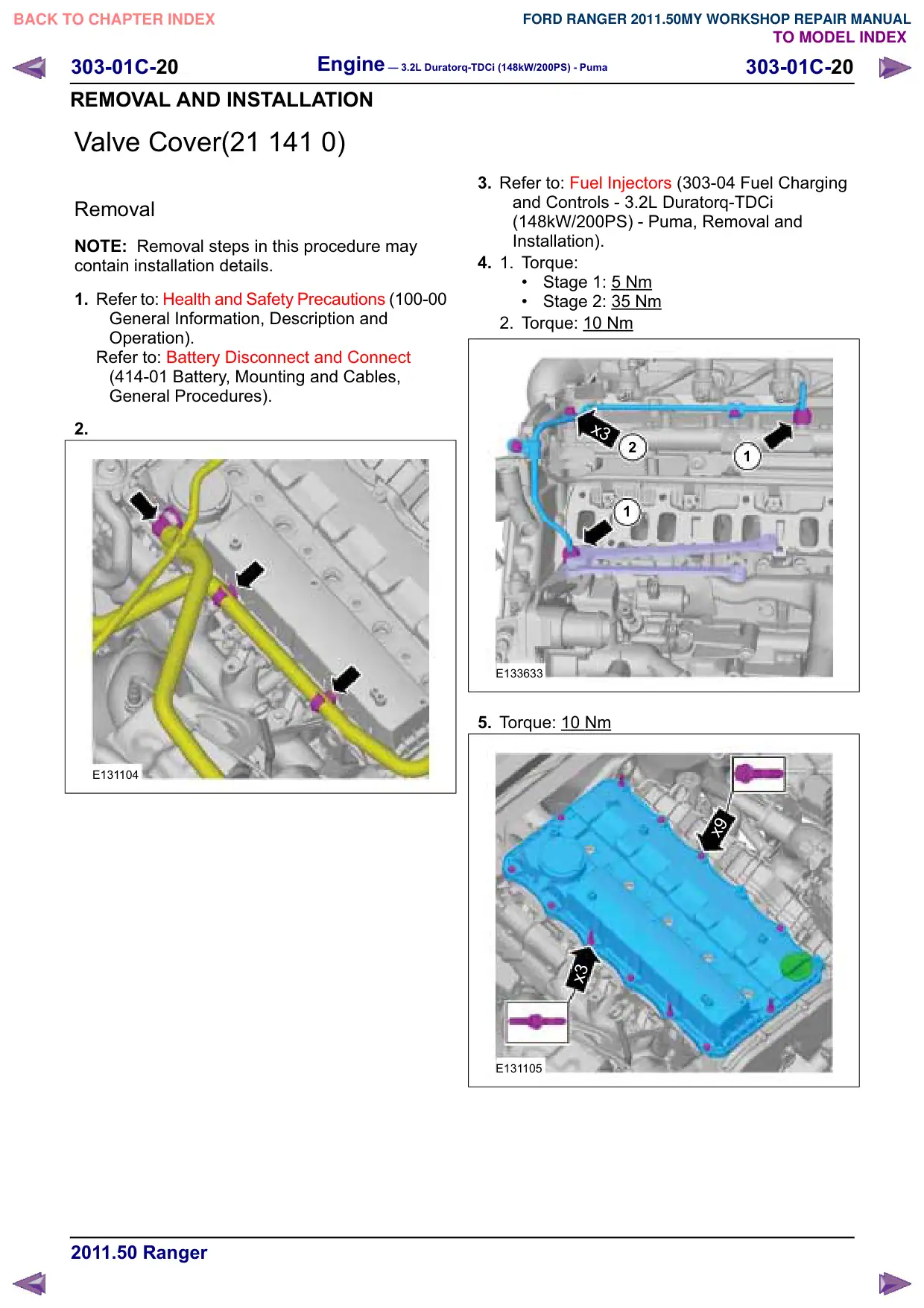

303-01C-20
Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma
303-01C-20
REMOVAL AND INSTALLATION
Valve Cover(21 141 0)
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Refer to: Health and Safety Precautions (100-00
General Information, Description and
Operation).
Refer to: Battery Disconnect and Connect
(414-01 Battery, Mounting and Cables,
General Procedures).
2.
E131104
3. Refer to: Fuel Injectors (303-04 Fuel Charging
and Controls - 3.2L Duratorq-TDCi
(148kW/200PS) - Puma, Removal and
Installation).
4.
1.
Torque:
Stage 1: 5 Nm
Stage 2: 35 Nm
2. Torque: 10 Nm
x3
2
1
1
E133633
5. Torque: 10
Nm
x9
x3
E131105
