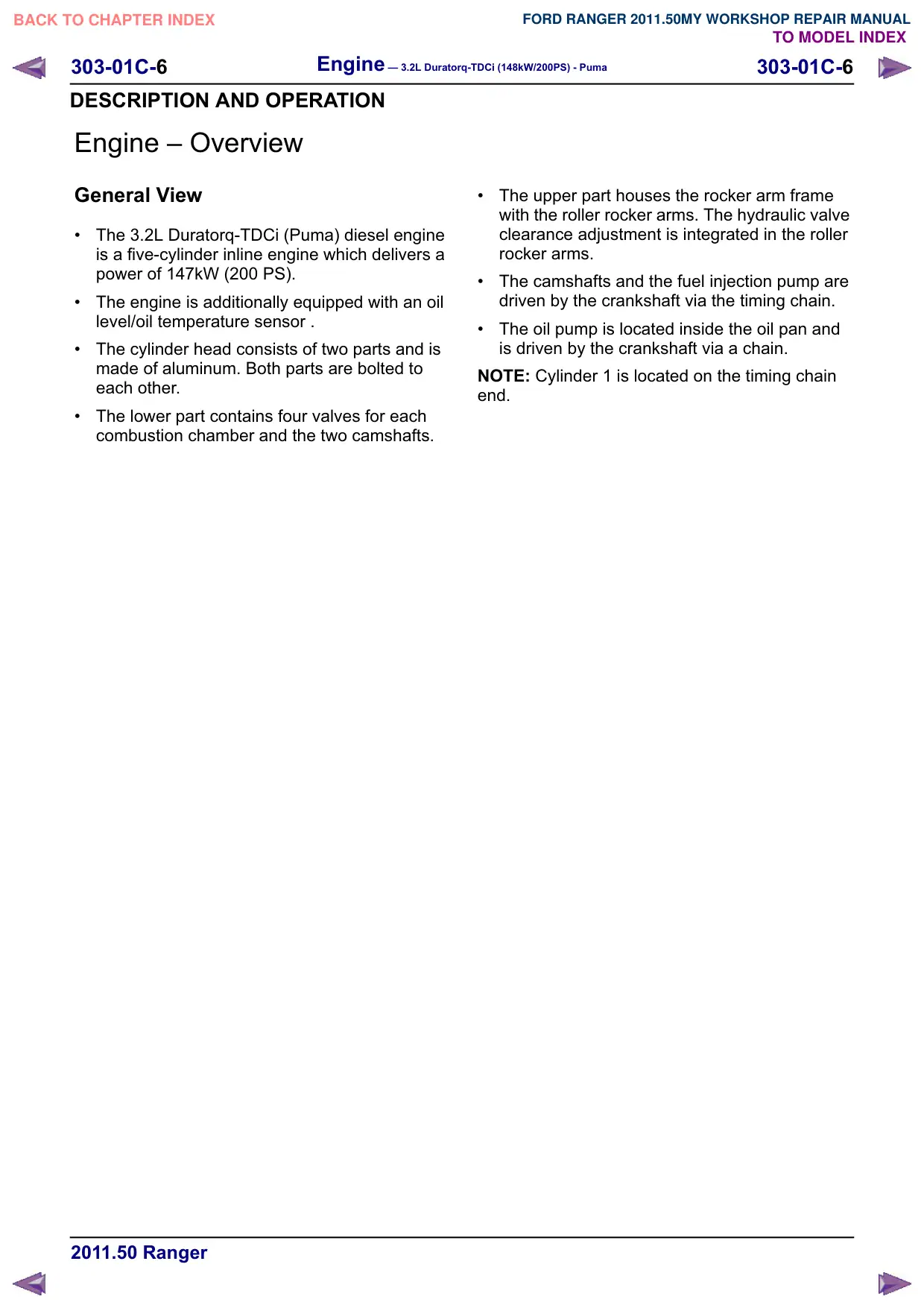

Engine – 3.2L Duratorq-TDCi (148kW/200PS) - Puma 303-01C-6 303-01C-6 DESCRIPTION AND OPERATION Engine œ Overview General View ‡ The 3.2L Duratorq-TDCi (Puma) diesel engine is a five-cylinder inline engine which delivers a power of 147kW (200 PS). ‡ The engine is additionally equipped with an oil level/oil temperature sensor . ‡ The cylinder head consists of two parts and is made of aluminum. Both parts are bolted to each other. ‡ The lower part contains four valves for each combustion chamber and the two camshafts. ‡ The upper part houses the rocker arm frame with the roller rocker arms. The hydraulic valve clearance adjustment is integrated in the roller rocker arms. ‡ The camshafts and the fuel injection pump are driven by the crankshaft via the timing chain. ‡ The oil pump is located inside the oil pan and is driven by the crankshaft via a chain. NOTE: Cylinder 1 is located on the timing chain end.
