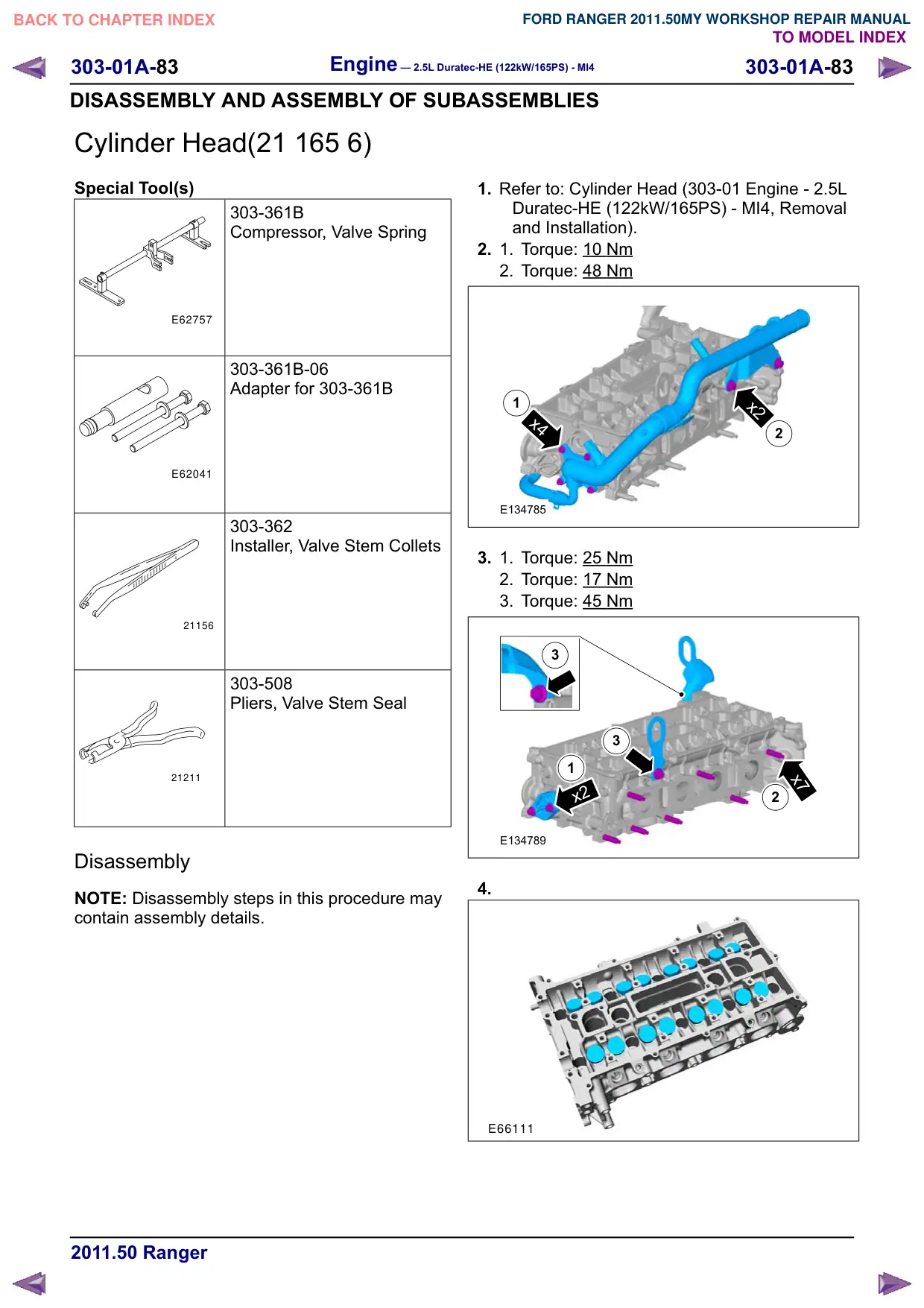

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4
303-01A-83
303-01A-83
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Cylinder Head(21 165 6)
Special Tool(s)
303-361B
Compressor, Valve Spring
E62757
303-361B-06
Adapter for 303-361B
E62041
303-362
Installer, Valve Stem Collets
21156
303-508
Pliers, Valve Stem Seal
21211
Disassembly
NOTE: Disassembly steps in this procedure may
contain assembly details.
1. Refer to: Cylinder Head (303-01 Engine - 2.5L
Duratec-HE (122kW/165PS) - MI4, Removal
and Installation).
2.
1.
Torque: 10 Nm
2. Torque: 48 Nm
1
x2
x4
2
E134785
3.
1.
Torque: 25 Nm
2. Torque: 17 Nm
3. Torque: 45 Nm
3
3
1
x7
x2
2
E134789
4.

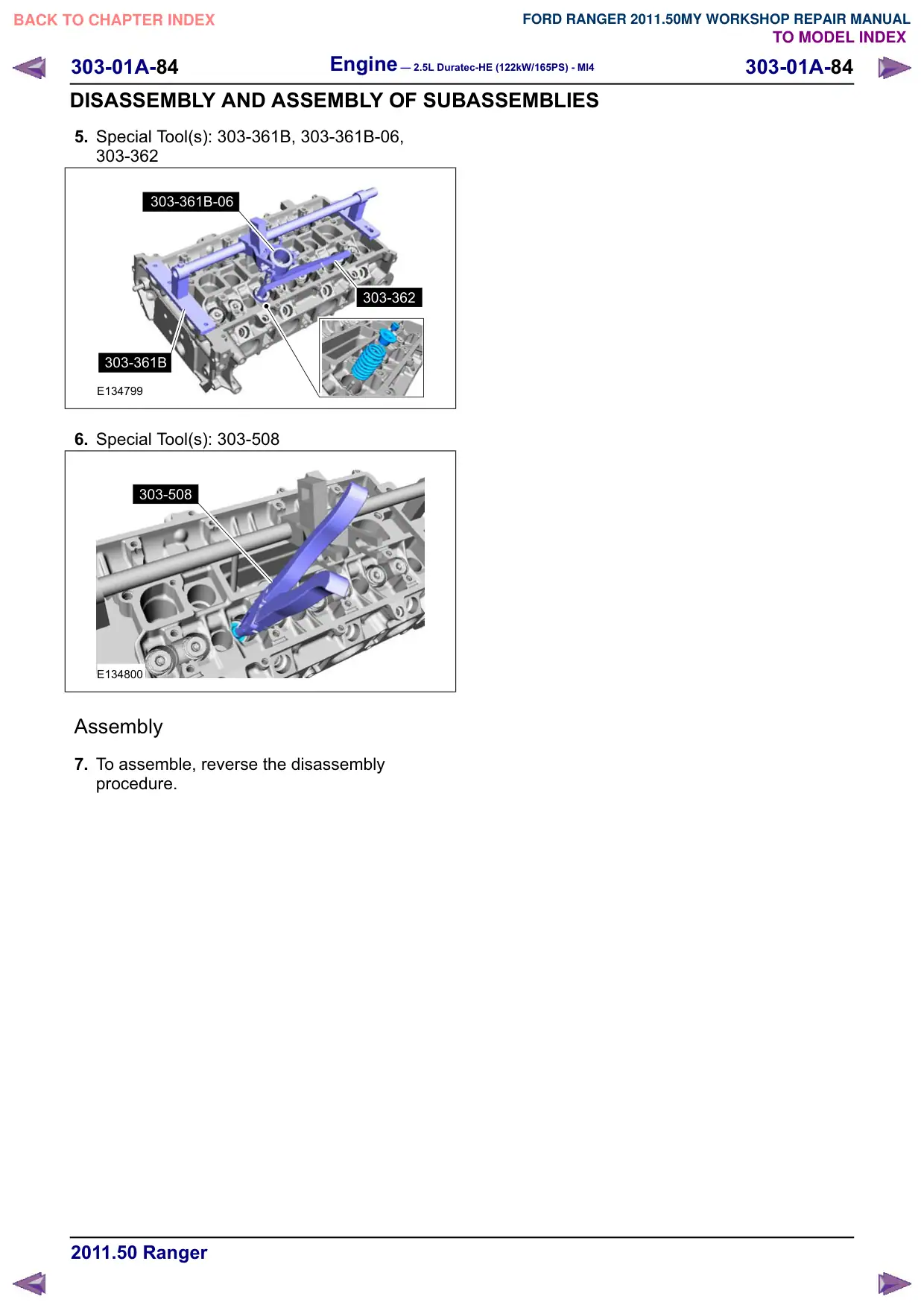

E66111
