Bomba de óleo

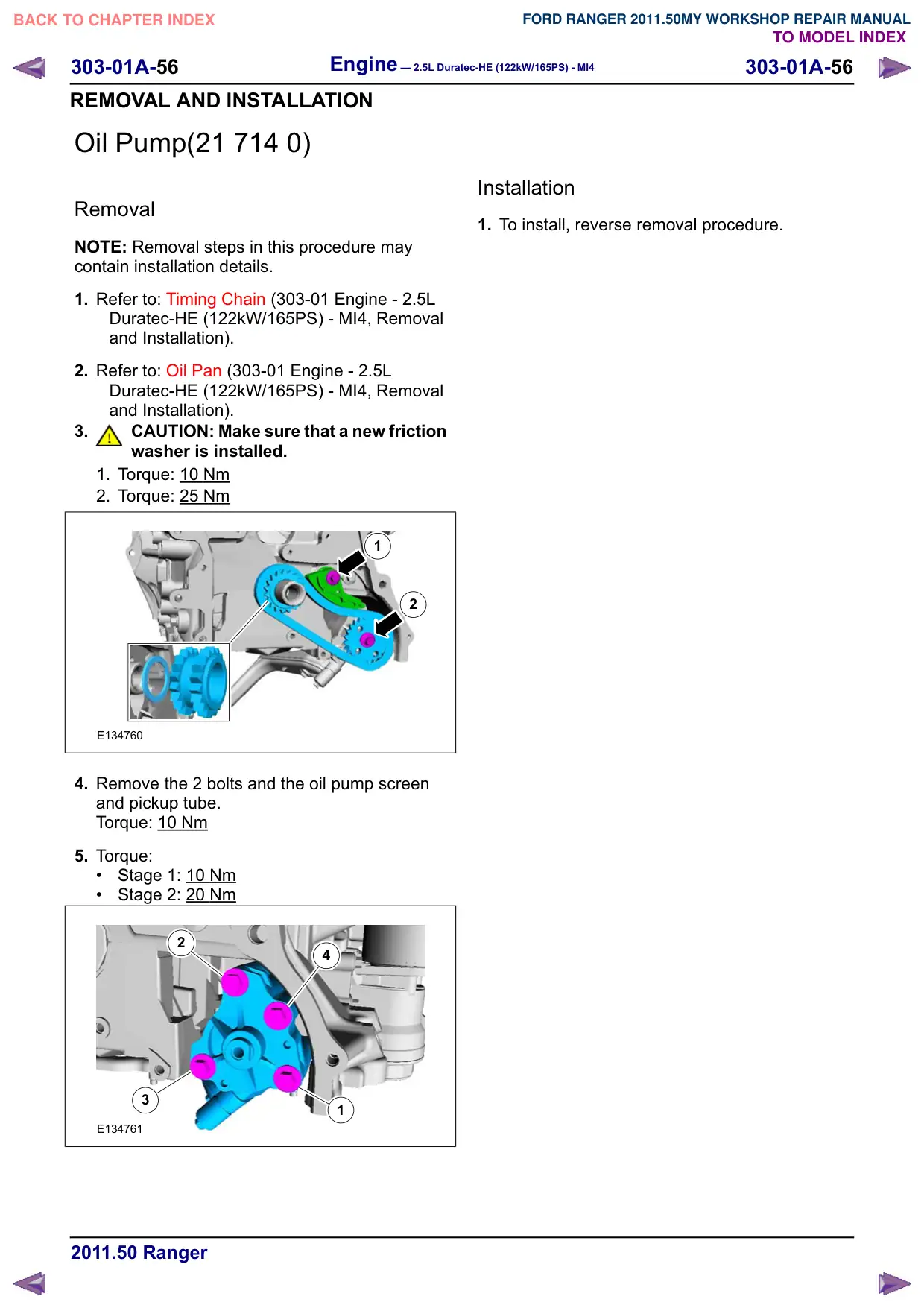

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4 303-01A-56 303-01A-56 REMOVAL AND INSTALLATION Oil Pump(21 714 0) Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Timing Chain (303-01 Engine - 2.5L Duratec-HE (122kW/165PS) - MI4, Removal and Installation). 2. Refer to: Oil Pan (303-01 Engine - 2.5L Duratec-HE (122kW/165PS) - MI4, Removal and Installation). 3. CAUTION: Make sure that a new friction washer is installed. 1. Torque: 10 Nm 2. Torque: 25 Nm 1 2 E134760 4. Remove the 2 bolts and the oil pump screen and pickup tube. Torque: 10 Nm 5. Torque: ‡ Stage 1: 10 Nm ‡ Stage 2: 20 Nm 2 4 3 1 E134761 Installation 1. To install, reverse removal procedure.
