Cárter

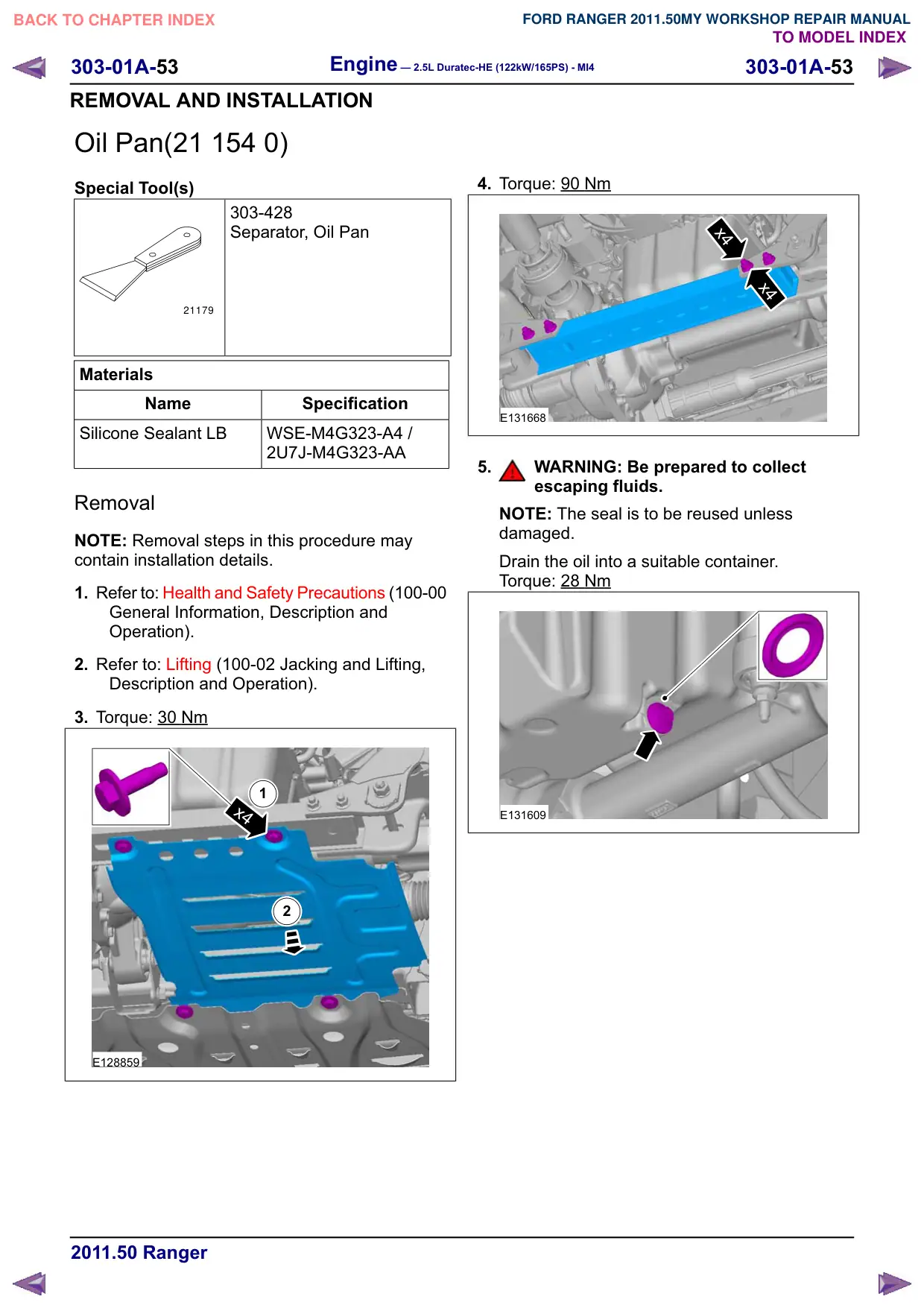

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4 303-01A-53 303-01A-53 REMOVAL AND INSTALLATION Oil Pan(21 154 0) Special Tool(s) 303-428 Separator, Oil Pan 21179 Materials Name Specification Silicone Sealant LB WSE-M4G323-A4 / 2U7J-M4G323-AA Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 3. Torque: 30 Nm 1 x4 2 E128859 4. Torque: 90 Nm x4 x4 E131668 5. WARNING: Be prepared to collect escaping fluids. NOTE: The seal is to be reused unless damaged. Drain the oil into a suitable container. Torque: 28 Nm E131609
