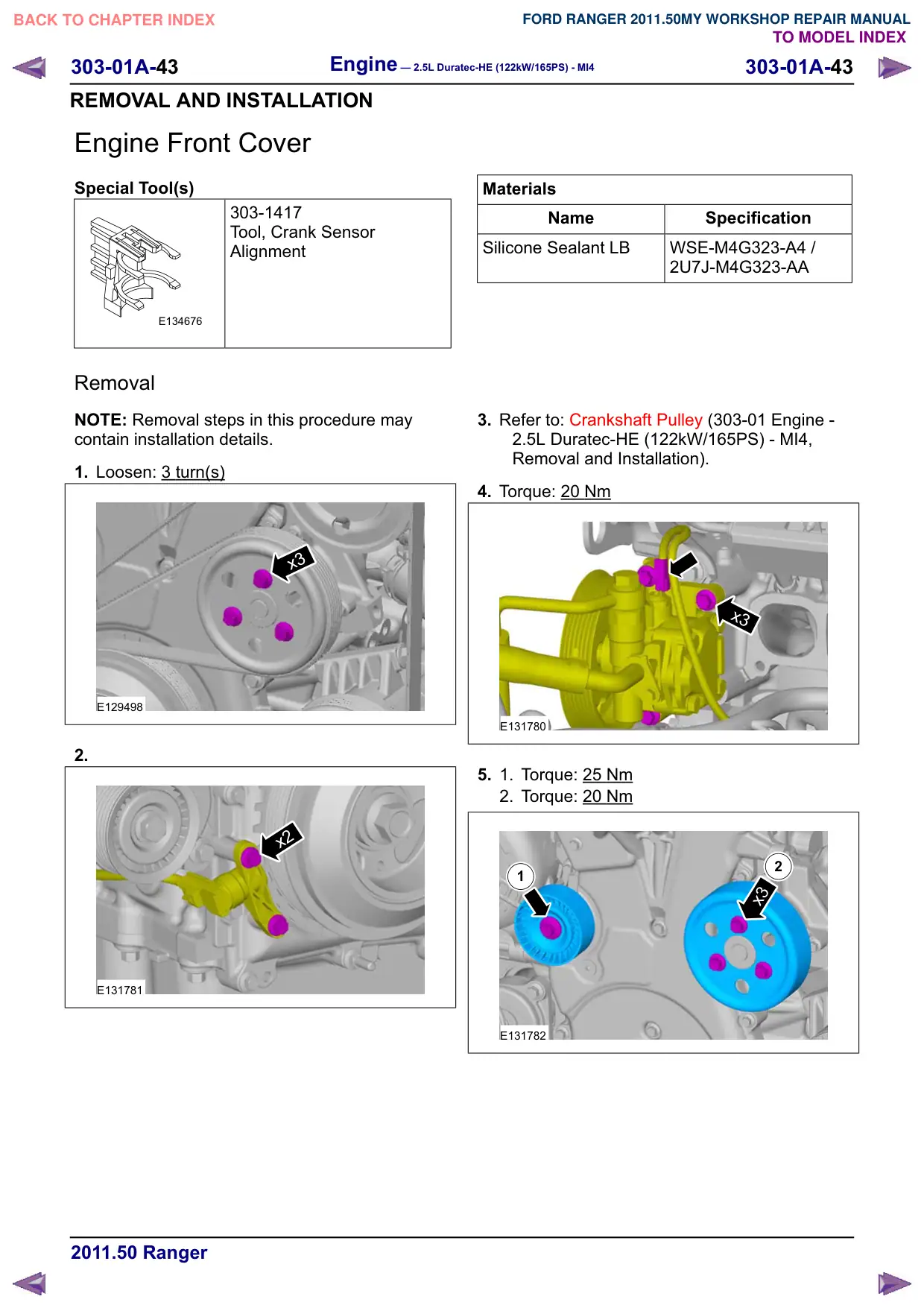

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4
303-01A-43
303-01A-43
REMOVAL AND INSTALLATION
Engine Front Cover
Special Tool(s)
303-1417
Tool, Crank Sensor
Alignment
E134676
Removal
NOTE: Removal steps in this procedure may
contain installation details.
1. Loosen: 3 turn(s)
x3
E129498
2.
x2
E131781
Materials
Name
Specification
Silicone Sealant LB
WSE-M4G323-A4 /
2U7J-M4G323-AA
3. Refer to: Crankshaft Pulley (303-01 Engine -
2.5L Duratec-HE (122kW/165PS) - MI4,
Removal and Installation).
4. Torque: 20 Nm
x3
E131780
5.
1.
Torque: 25 Nm
2. Torque: 20 Nm
2
1
x3
E131782
