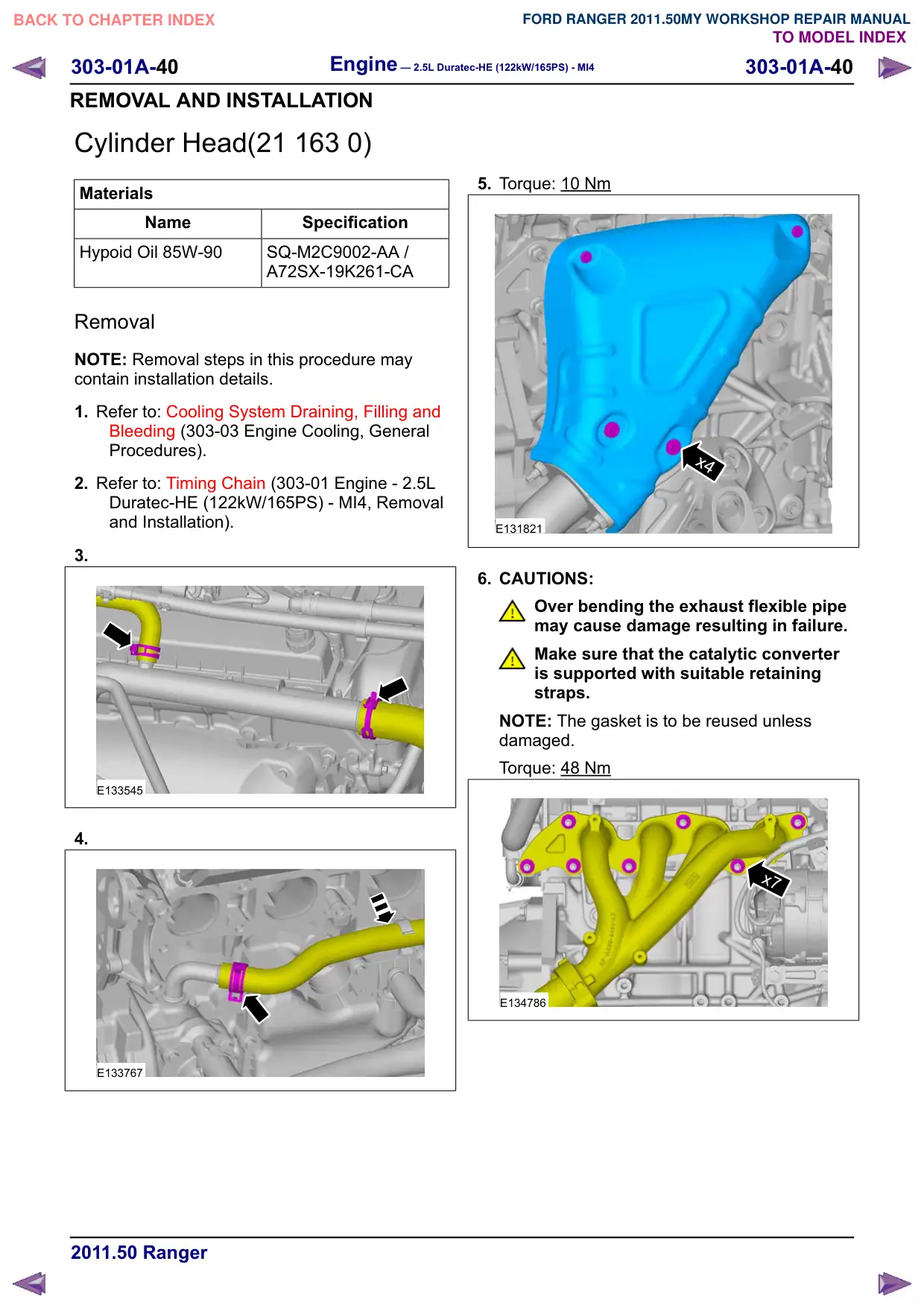

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4 303-01A-40 303-01A-40 REMOVAL AND INSTALLATION Cylinder Head(21 163 0) Materials Name Specification Hypoid Oil 85W-90 SQ-M2C9002-AA / A72SX-19K261-CA Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Cooling System Draining, Filling and Bleeding (303-03 Engine Cooling, General Procedures). 2. Refer to: Timing Chain (303-01 Engine - 2.5L Duratec-HE (122kW/165PS) - MI4, Removal and Installation). 3. E133545 4. E133767 5. Torque: 10 Nm x4 E131821 6. CAUTIONS: Over bending the exhaust flexible pipe may cause damage resulting in failure. Make sure that the catalytic converter is supported with suitable retaining straps. NOTE: The gasket is to be reused unless damaged. Torque: 48 Nm x7 E134786
