Polia do virabrequim

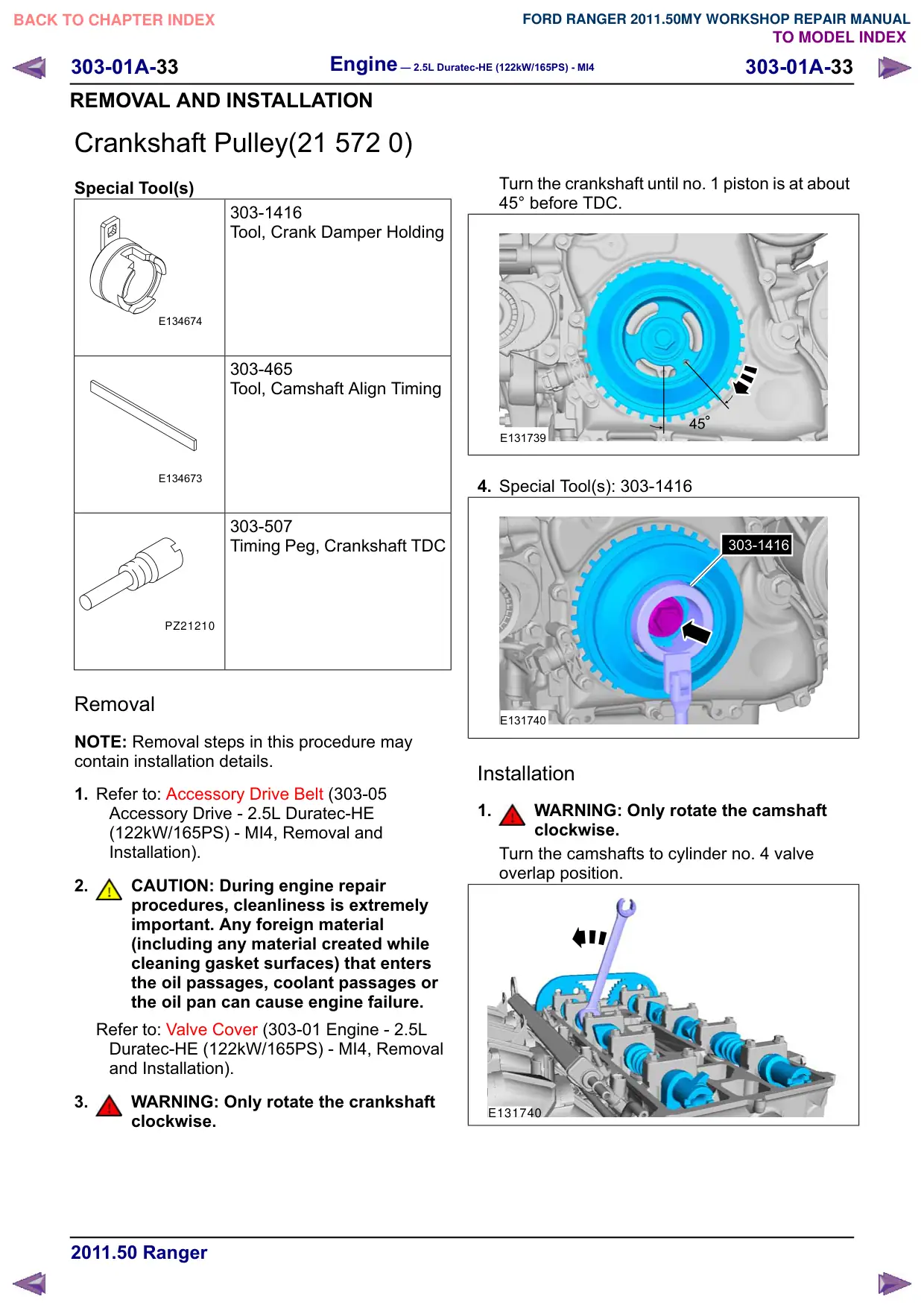

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4 303-01A-33 303-01A-33 REMOVAL AND INSTALLATION Crankshaft Pulley(21 572 0) Special Tool(s) 303-1416 Tool, Crank Damper Holding E134674 303-465 Tool, Camshaft Align Timing E134673 303-507 Timing Peg, Crankshaft TDC PZ21210 Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Accessory Drive Belt (303-05 Accessory Drive - 2.5L Duratec-HE (122kW/165PS) - MI4, Removal and Installation). 2. CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure. Refer to: Valve Cover (303-01 Engine - 2.5L Duratec-HE (122kW/165PS) - MI4, Removal and Installation). 3. WARNING: Only rotate the crankshaft clockwise. Turn the crankshaft until no. 1 piston is at about 45° before TDC. E131739 4. Special Tool(s): 303-1416 303-1416 E131740 Installation 1. WARNING: Only rotate the camshaft clockwise. Turn the camshafts to cylinder no. 4 valve overlap position. E131740
