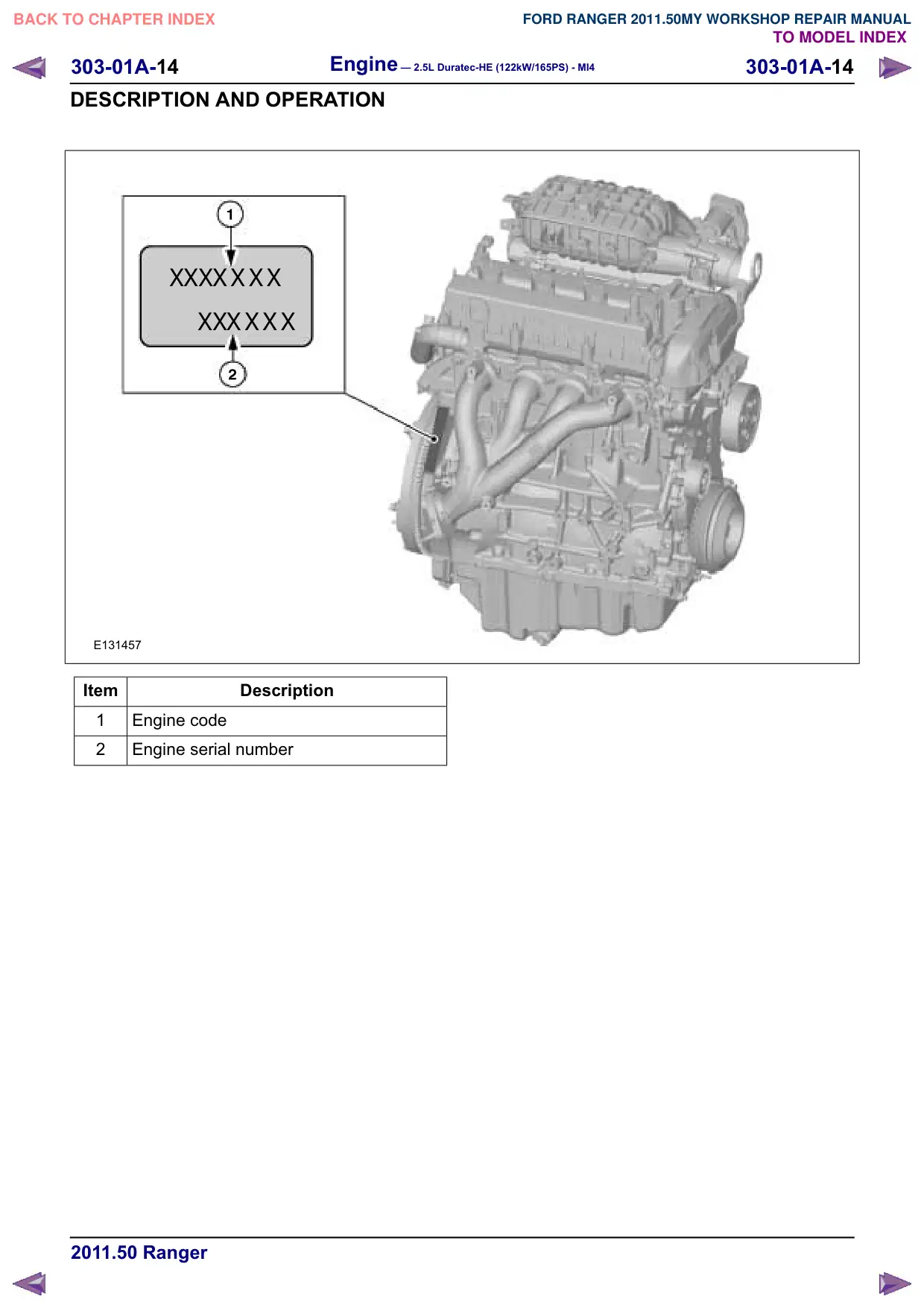

Engine – 2.5L Duratec-HE (122kW/165PS) - MI4
303-01A-13
303-01A-13
DESCRIPTION AND OPERATION
4
3
2
1
11
10
8
E131456
Item
Description
1
Engine front cover
2
Coolant pump
3
Thermostat
4
Intake manifold
5
Oil level indicator
6
Crankcase ventilation oil separator
7
Oil filter and cooler
8
Oil pan
Coolant pump pulley
13
14
12
5
15
6
18
17
7
16
Item
Description
10
Cranksahft pulley
11
Accessory drive belt idler pulley
12
Fuel rail
13
Ignition coils
14
Oil filler cap
15
Valve cover
16
Exhaust manifold
17
Flywheel
18
Water outlet connector
