Folga do anel do pistão na canaleta
Piston Ring-to-Groove Clearance
Texto da página
Link desta página: https://ranger.mbrace.com.br/oficina/276
Imagem: https://ranger.mbrace.com.br/img/oficina/276.webp
Engine System - General Information
303-00-15
303-00-15
GENERAL PROCEDURES

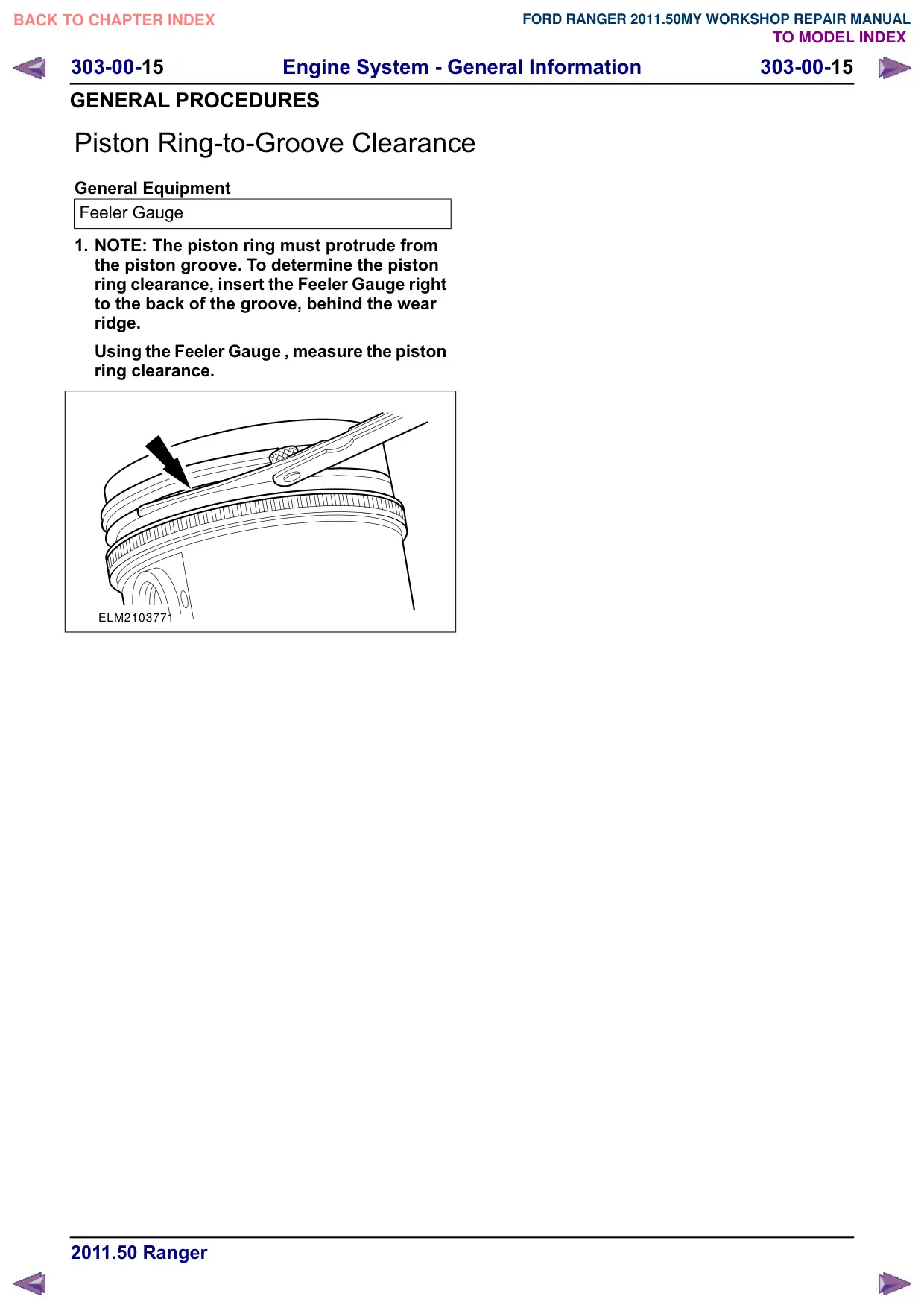

Piston Ring-to-Groove Clearance
General Equipment
Feeler Gauge
1. NOTE: The piston ring must protrude from
the piston groove. To determine the piston
ring clearance, insert the Feeler Gauge right
to the back of the groove, behind the wear
ridge.
Using the Feeler Gauge , measure the piston
ring clearance.
ELM2103771
