Engine System - General Information
303-00-12
303-00-12
GENERAL PROCEDURES

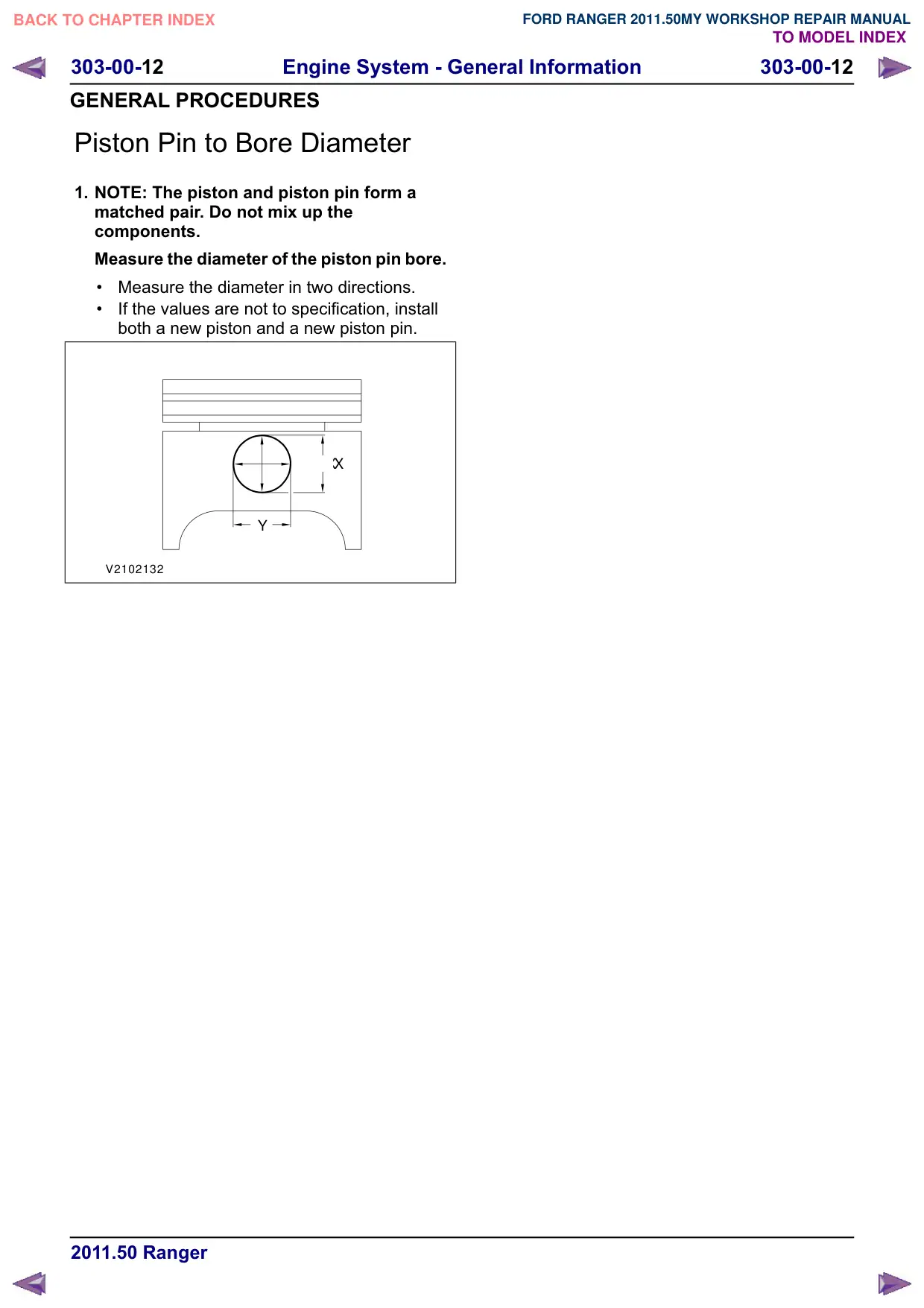

Piston Pin to Bore Diameter
1. NOTE: The piston and piston pin form a
matched pair. Do not mix up the
components.
Measure the diameter of the piston pin bore.
Measure the diameter in two directions.
If the values are not to specification, install
both a new piston and a new piston pin.
xXX
Y
V2102132
