Bomba da direção hidráulica – 2.2L Duratorq-TDCi (88kW/120PS) -

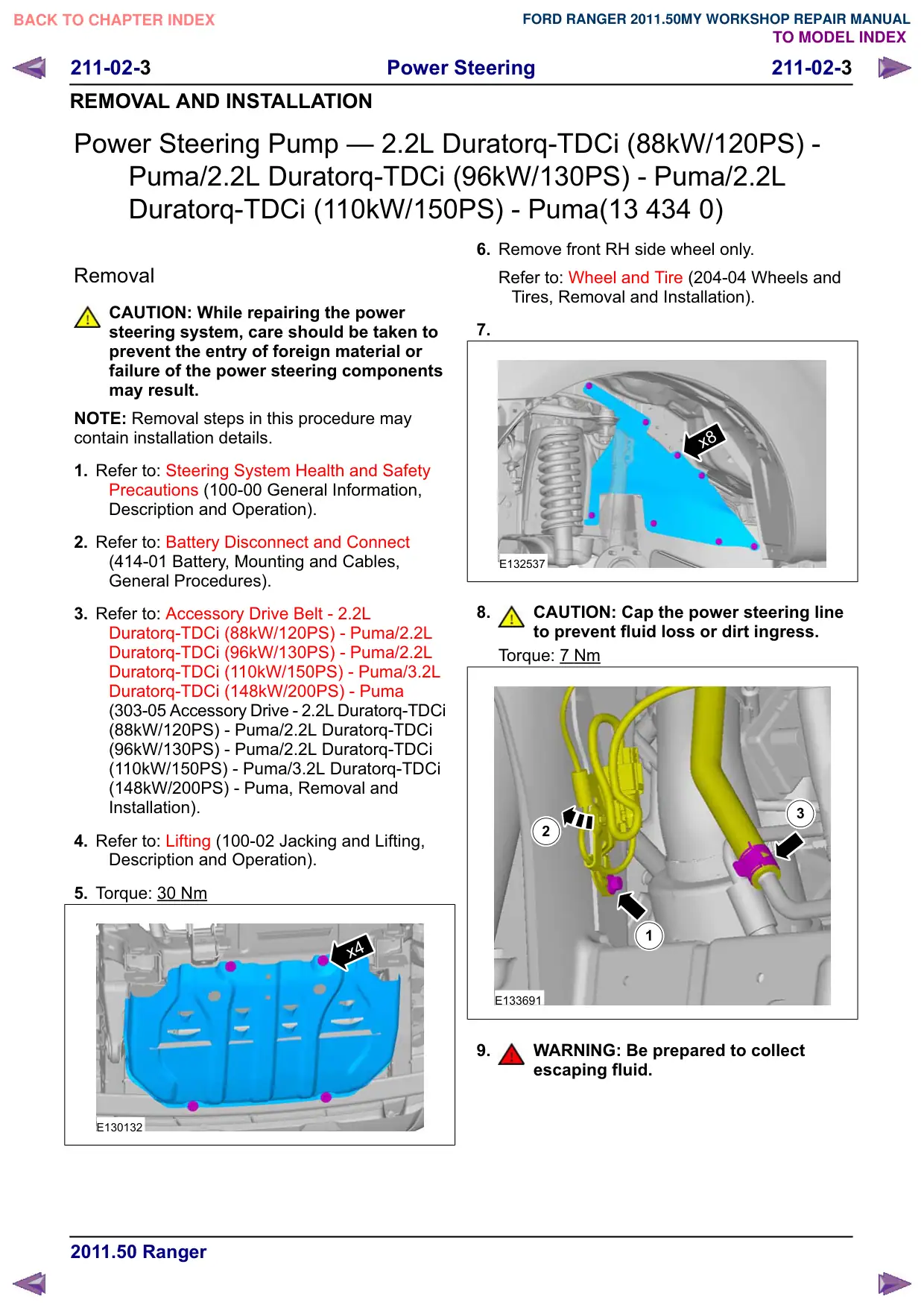

211-02-3 Power Steering 211-02-3 REMOVAL AND INSTALLATION Power Steering Pump – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma(13 434 0) Removal CAUTION: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Steering System Health and Safety Precautions (100-00 General Information, Description and Operation). 2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 3. Refer to: Accessory Drive Belt - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-05 Accessory Drive - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 4. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 5. Torque: 30 Nm x4 E130132 6. Remove front RH side wheel only. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation). 7. x8 E132537 8. CAUTION: Cap the power steering line to prevent fluid loss or dirt ingress. Torque: 7 Nm 3 2 1 E133691 9. WARNING: Be prepared to collect escaping fluid.
