Sangria do sistema de direção hidráulica

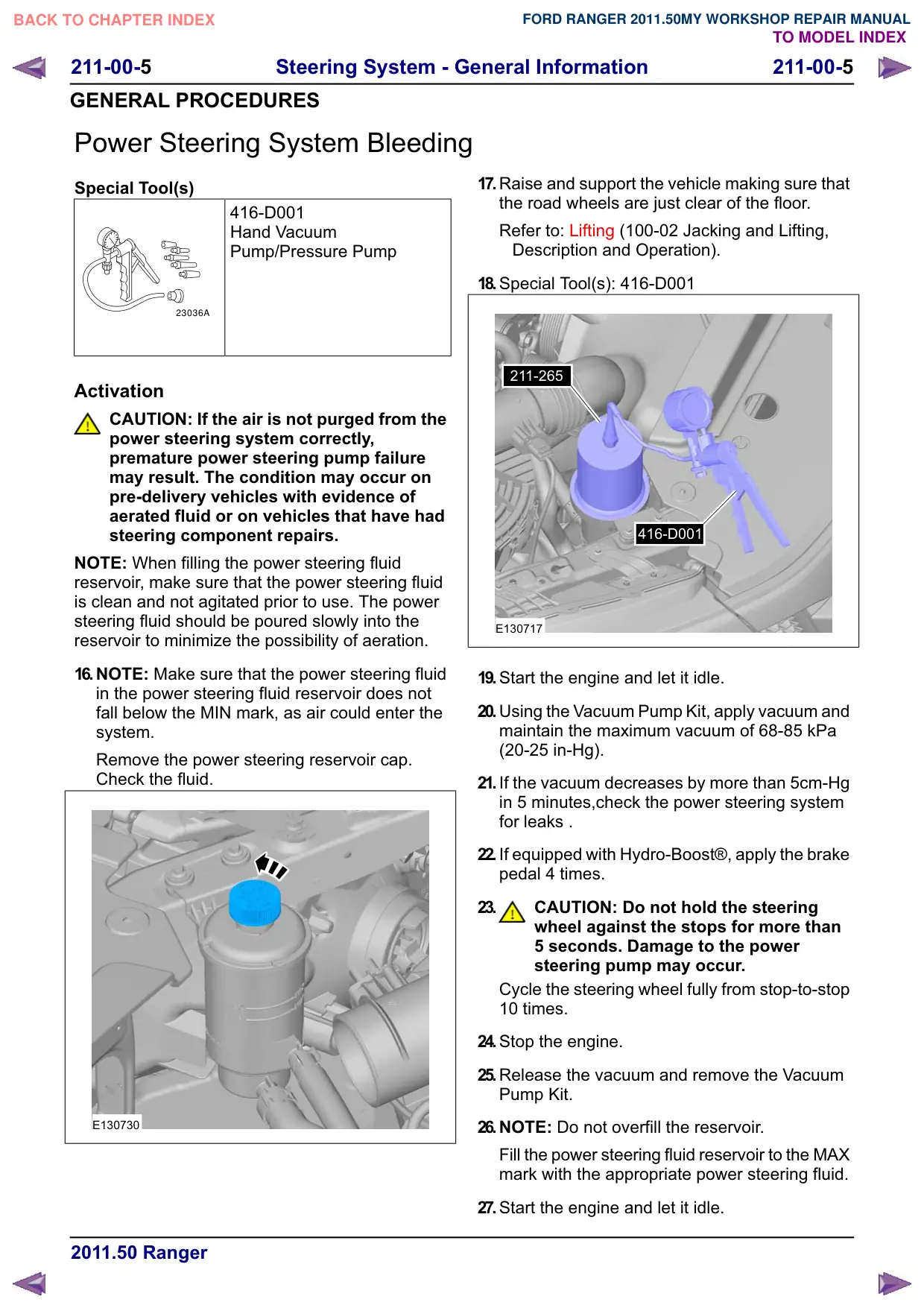

Steering System - General Information 211-00-5 211-00-5 GENERAL PROCEDURES Power Steering System Bleeding Special Tool(s) 416-D001 Hand Vacuum Pump/Pressure Pump 23036A Activation CAUTION: If the air is not purged from the power steering system correctly, premature power steering pump failure may result. The condition may occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs. NOTE: When filling the power steering fluid reservoir, make sure that the power steering fluid is clean and not agitated prior to use. The power steering fluid should be poured slowly into the reservoir to minimize the possibility of aeration. 16.NOTE: Make sure that the power steering fluid in the power steering fluid reservoir does not fall below the MIN mark, as air could enter the system. Remove the power steering reservoir cap. Check the fluid. E130730 17.Raise and support the vehicle making sure that the road wheels are just clear of the floor. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 18.Special Tool(s): 416-D001 211-265 416-D001 E130717 19.Start the engine and let it idle. 20.Using the Vacuum Pump Kit, apply vacuum and maintain the maximum vacuum of 68-85 kPa (20-25 in-Hg). 21.If the vacuum decreases by more than 5cm-Hg in 5 minutes,check the power steering system for leaks . 22.If equipped with Hydro-Boost®, apply the brake pedal 4 times. 23. CAUTION: Do not hold the steering wheel against the stops for more than 5 seconds. Damage to the power steering pump may occur. Cycle the steering wheel fully from stop-to-stop 10 times. 24.Stop the engine. 25.Release the vacuum and remove the Vacuum Pump Kit. 26.NOTE: Do not overfill the reservoir. Fill the power steering fluid reservoir to the MAX mark with the appropriate power steering fluid. 27.Start the engine and let it idle.
