Capa do para-choque dianteiro

Front Bumper Cover

Oficina · página 1412 de 1428 · 501-19-1 · parte 1 de 5

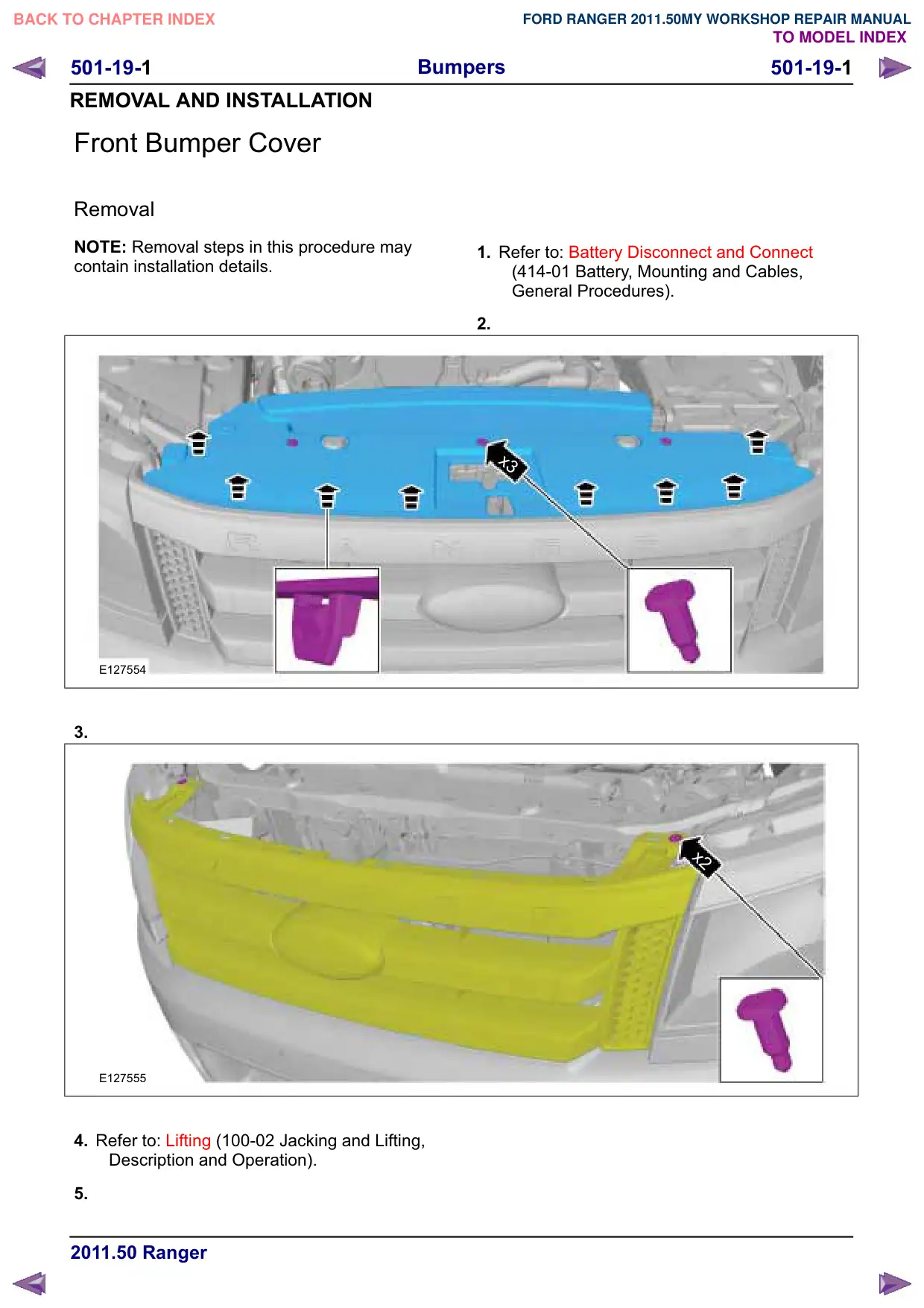

Página 1412 do Manual de Oficina: Capa do para-choque dianteiro

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/1412
Imagem: https://ranger.mbrace.com.br/img/oficina/1412.webp

501-19-1 501-19-1 Bumpers REMOVAL AND INSTALLATION Front Bumper Cover Removal NOTE: Removal steps in this procedure may contain installation details. E127554 3. E127555 4. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 5. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. x3 x2
