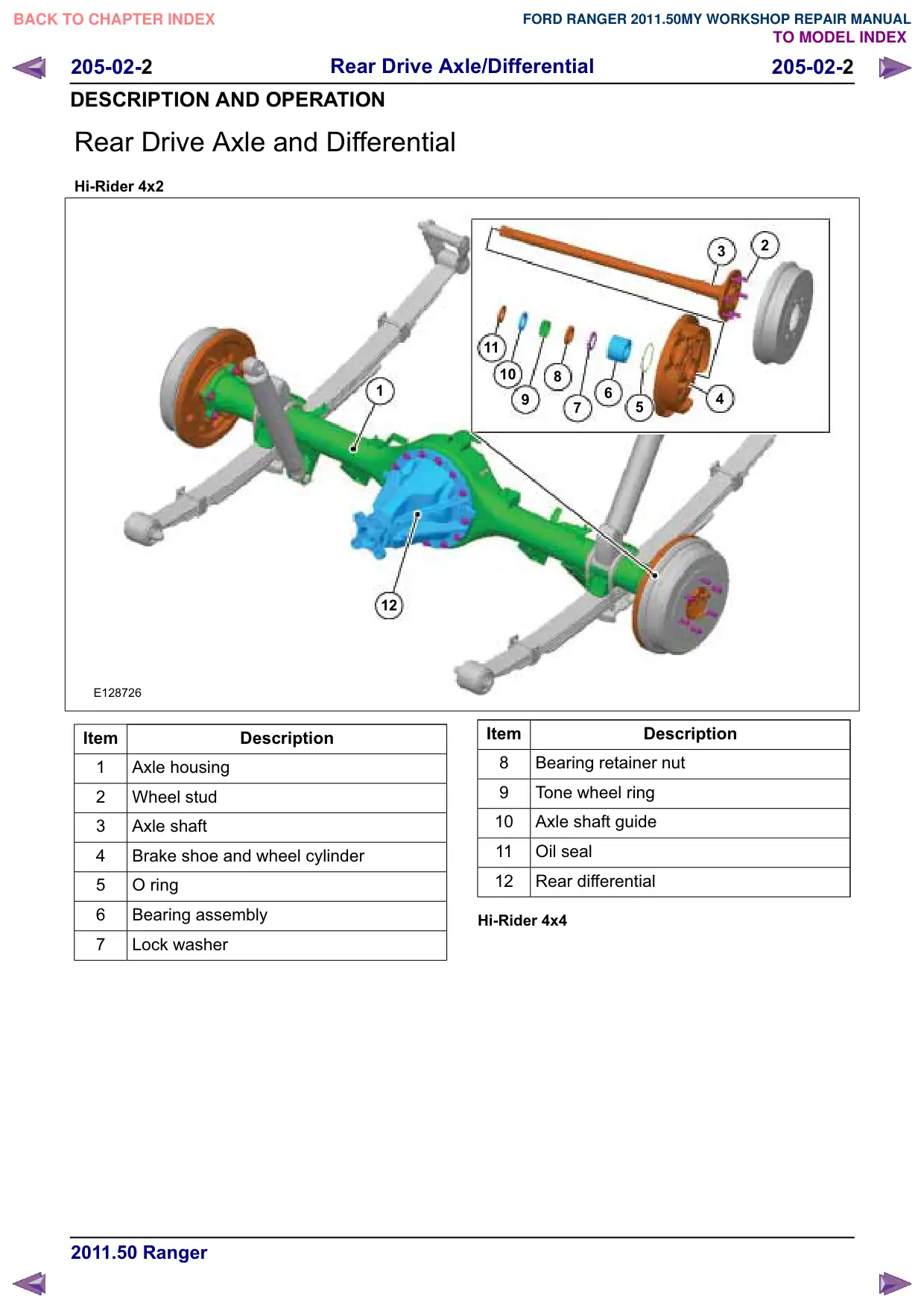

Rear Drive Axle and Differential
Texto da página
Link desta página: https://ranger.mbrace.com.br/oficina/130
Imagem: https://ranger.mbrace.com.br/img/oficina/130.webp
205-02-2
Rear Drive Axle/Differential
205-02-2
DESCRIPTION AND OPERATION
Rear Drive Axle and Differential
Hi-Rider 4x2
1
12
E128726
Item
Description
1
Axle housing
2
Wheel stud
3
Axle shaft
4
Brake shoe and wheel cylinder
5
O ring
6
Bearing assembly
7
Lock washer
2
3
11
10
8
6
4
7
5
Item
Description
8
Bearing retainer nut
Tone wheel ring
10
Axle shaft guide
11
Oil seal
12
Rear differential
Hi-Rider 4x4
