Conjunto do farol

Headlamp Assembly

Oficina · página 1277 de 1428 · 417-01-11 · parte 1 de 2

Página 1277 do Manual de Oficina: Conjunto do farol

Explicar no Gemini Ampliar imagem Traduzir texto

Texto da página

Link desta página: https://ranger.mbrace.com.br/oficina/1277
Imagem: https://ranger.mbrace.com.br/img/oficina/1277.webp

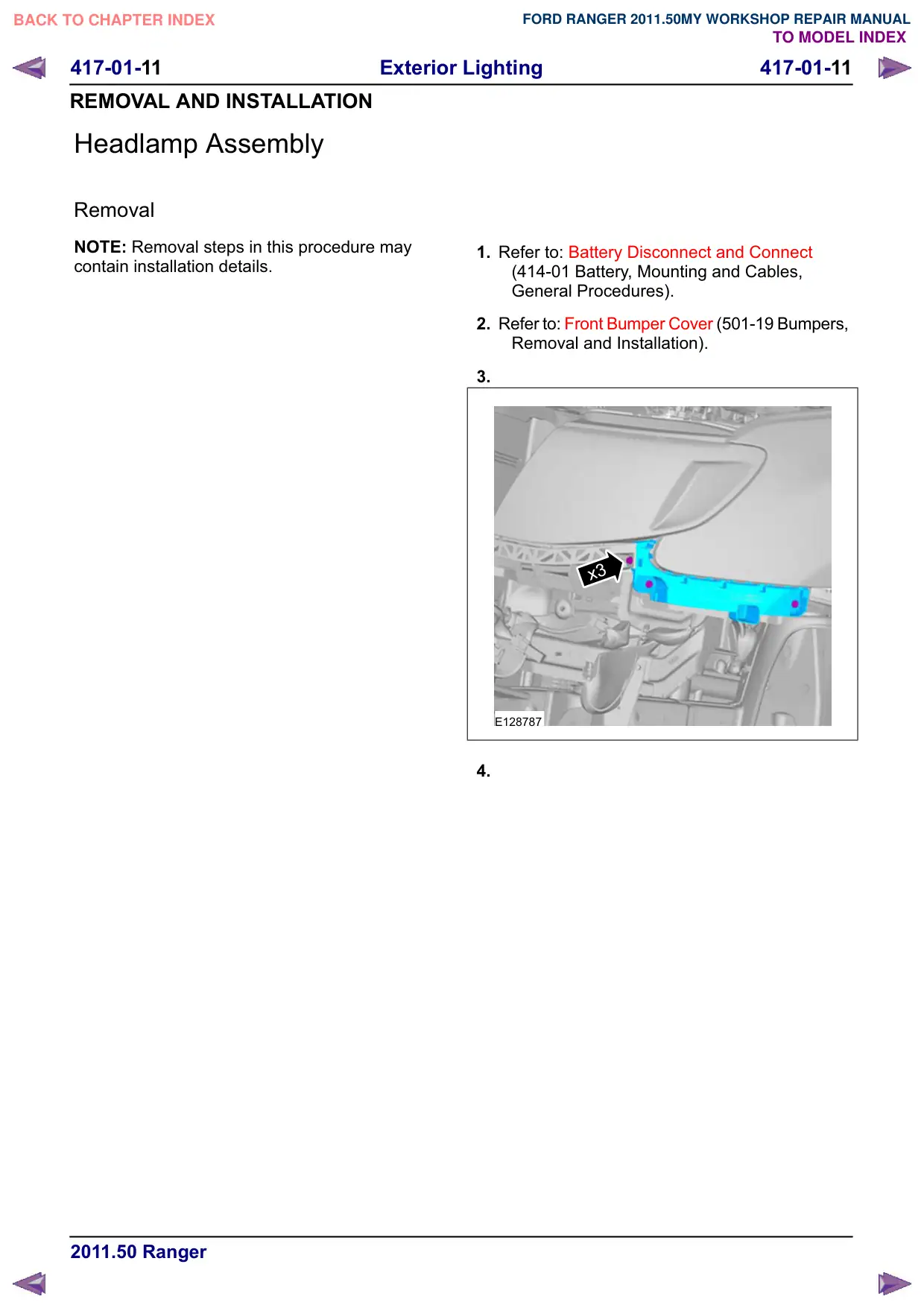

417-01-11 Exterior Lighting 417-01-11 REMOVAL AND INSTALLATION Headlamp Assembly Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation). 3. x3 E128787 4.
