Eixo cardã dianteiro – 4WD

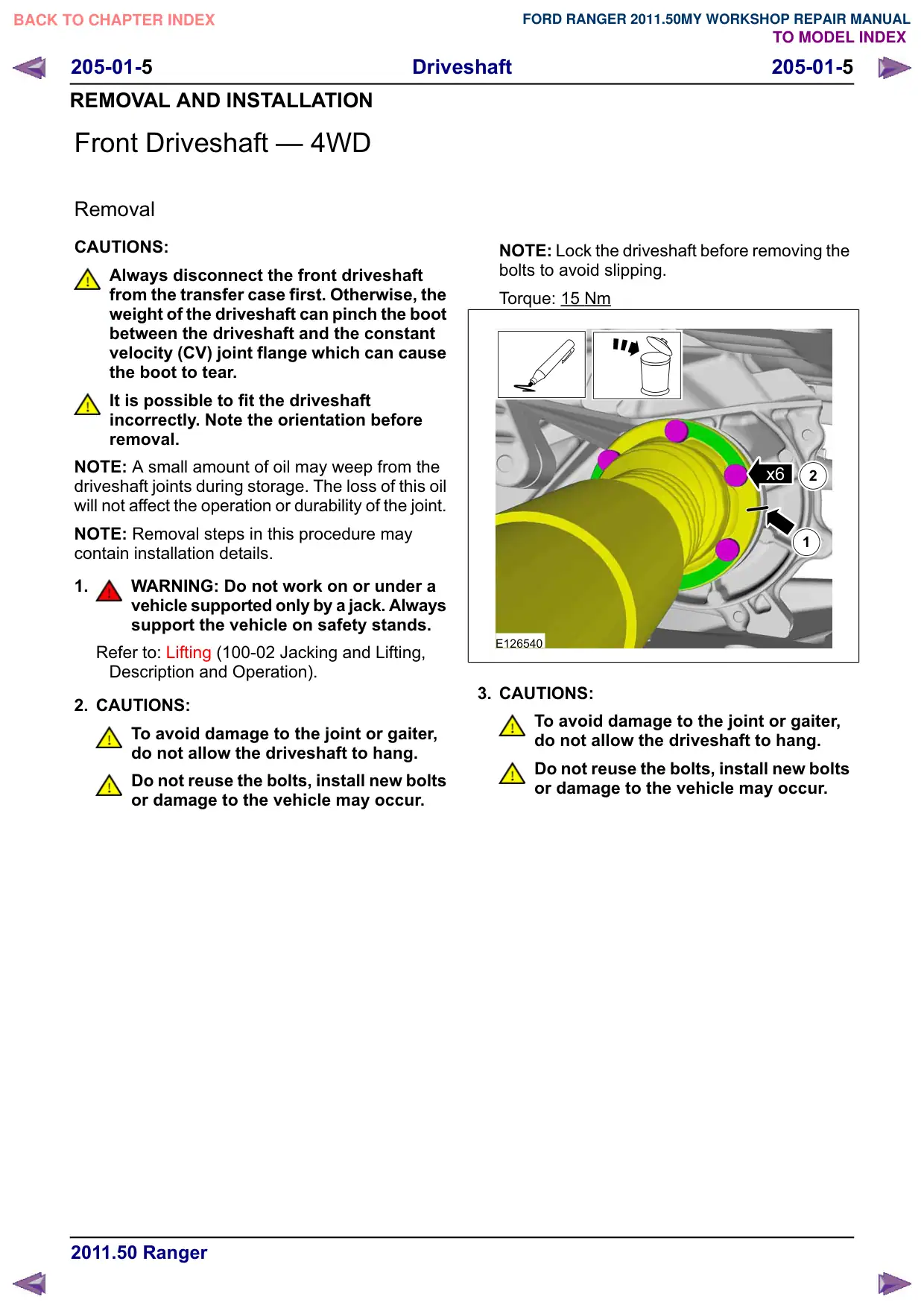

Driveshaft 205-01-5 205-01-5 REMOVAL AND INSTALLATION Front Driveshaft – 4WD Removal CAUTIONS: Always disconnect the front driveshaft from the transfer case first. Otherwise, the weight of the driveshaft can pinch the boot between the driveshaft and the constant velocity (CV) joint flange which can cause the boot to tear. It is possible to fit the driveshaft incorrectly. Note the orientation before removal. NOTE: A small amount of oil may weep from the driveshaft joints during storage. The loss of this oil will not affect the operation or durability of the joint. NOTE: Removal steps in this procedure may contain installation details. 1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. CAUTIONS: To avoid damage to the joint or gaiter, do not allow the driveshaft to hang. Do not reuse the bolts, install new bolts or damage to the vehicle may occur. NOTE: Lock the driveshaft before removing the bolts to avoid slipping. Torque: 15 Nm x6 2 1 E126540 3. CAUTIONS: To avoid damage to the joint or gaiter, do not allow the driveshaft to hang. Do not reuse the bolts, install new bolts or damage to the vehicle may occur.
