Eixo cardã – 2WD

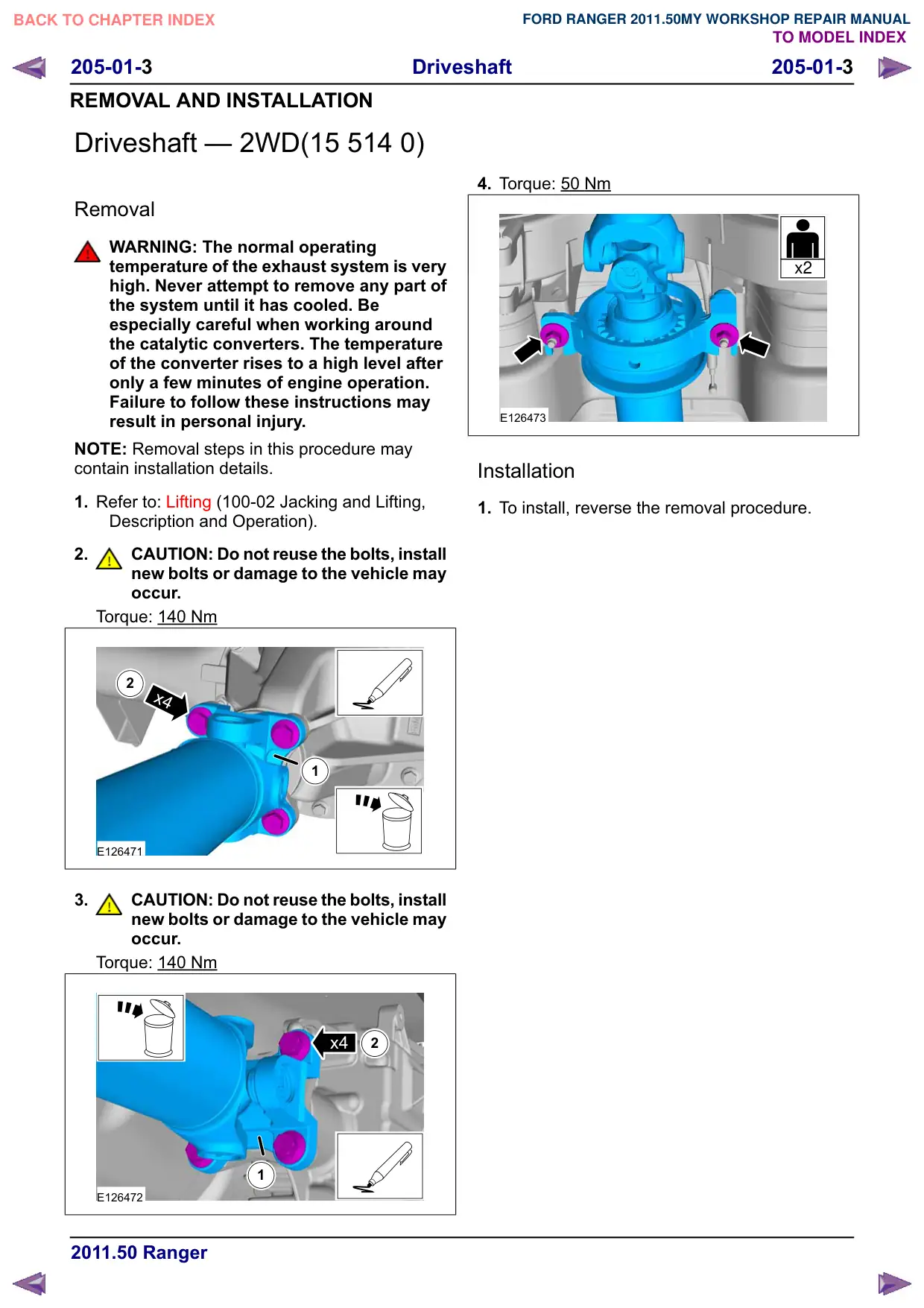

Driveshaft 205-01-3 205-01-3 REMOVAL AND INSTALLATION Driveshaft – 2WD(15 514 0) Removal WARNING: The normal operating temperature of the exhaust system is very high. Never attempt to remove any part of the system until it has cooled. Be especially careful when working around the catalytic converters. The temperature of the converter rises to a high level after only a few minutes of engine operation. Failure to follow these instructions may result in personal injury. NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. CAUTION: Do not reuse the bolts, install new bolts or damage to the vehicle may occur. Torque: 140 Nm 2 x4 1 E126471 3. CAUTION: Do not reuse the bolts, install new bolts or damage to the vehicle may occur. Torque: 140 Nm x4 2 1 E126472 4. Torque: 50 Nm x2 E126473 Installation 1. To install, reverse the removal procedure.
