413-13-2
Parking Aid
413-13-2
DESCRIPTION AND OPERATION
Parking Aid

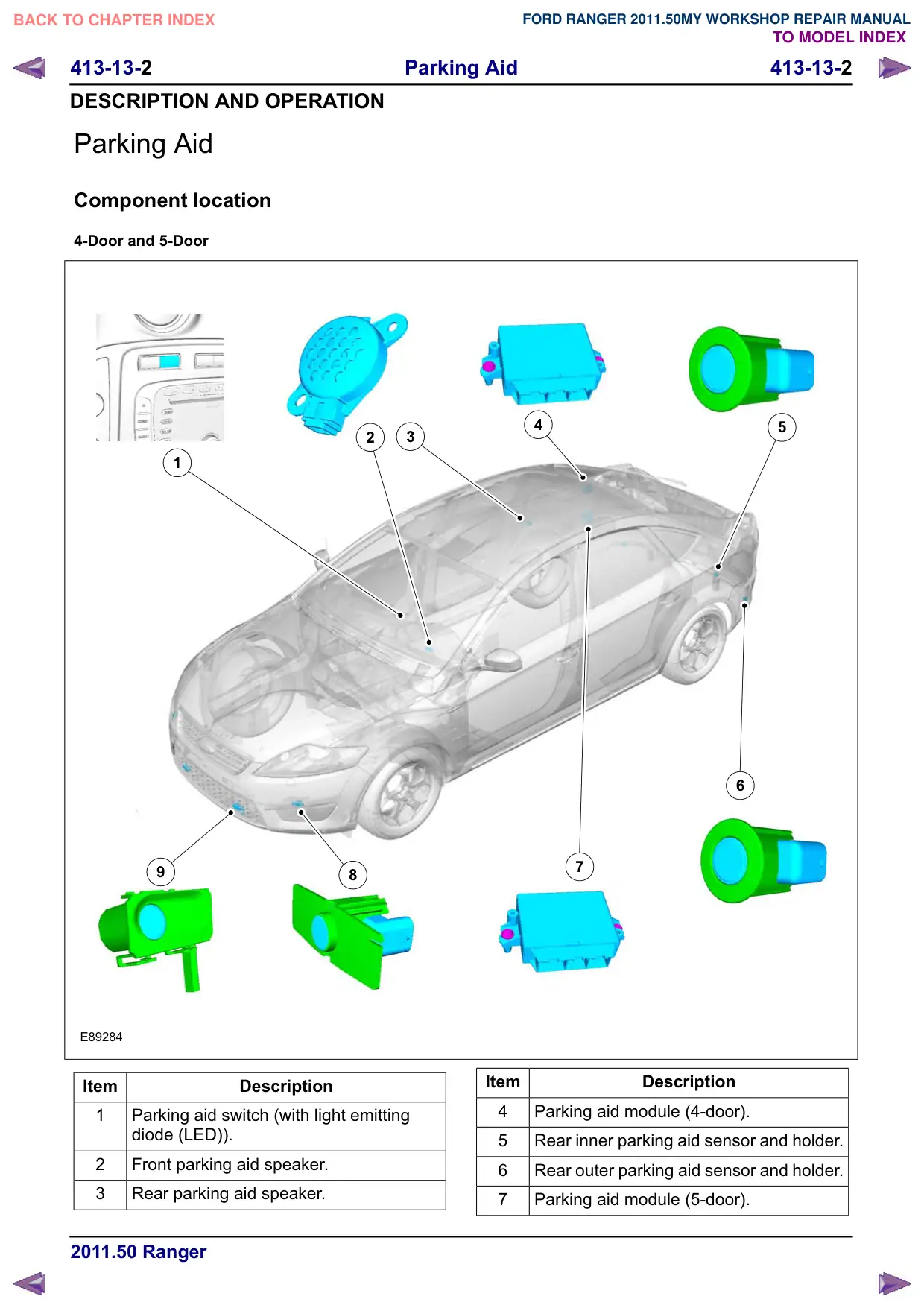

Component location
4-Door and 5-Door
2
3
1
8
E89284
Item
Description
1
Parking aid switch (with light emitting
diode (LED)).
2
Front parking aid speaker.
3
Rear parking aid speaker.
4
5
6
7
Item
Description
4
Parking aid module (4-door).
5
Rear inner parking aid sensor and holder.
6
Rear outer parking aid sensor and holder.
7
Parking aid module (5-door).
