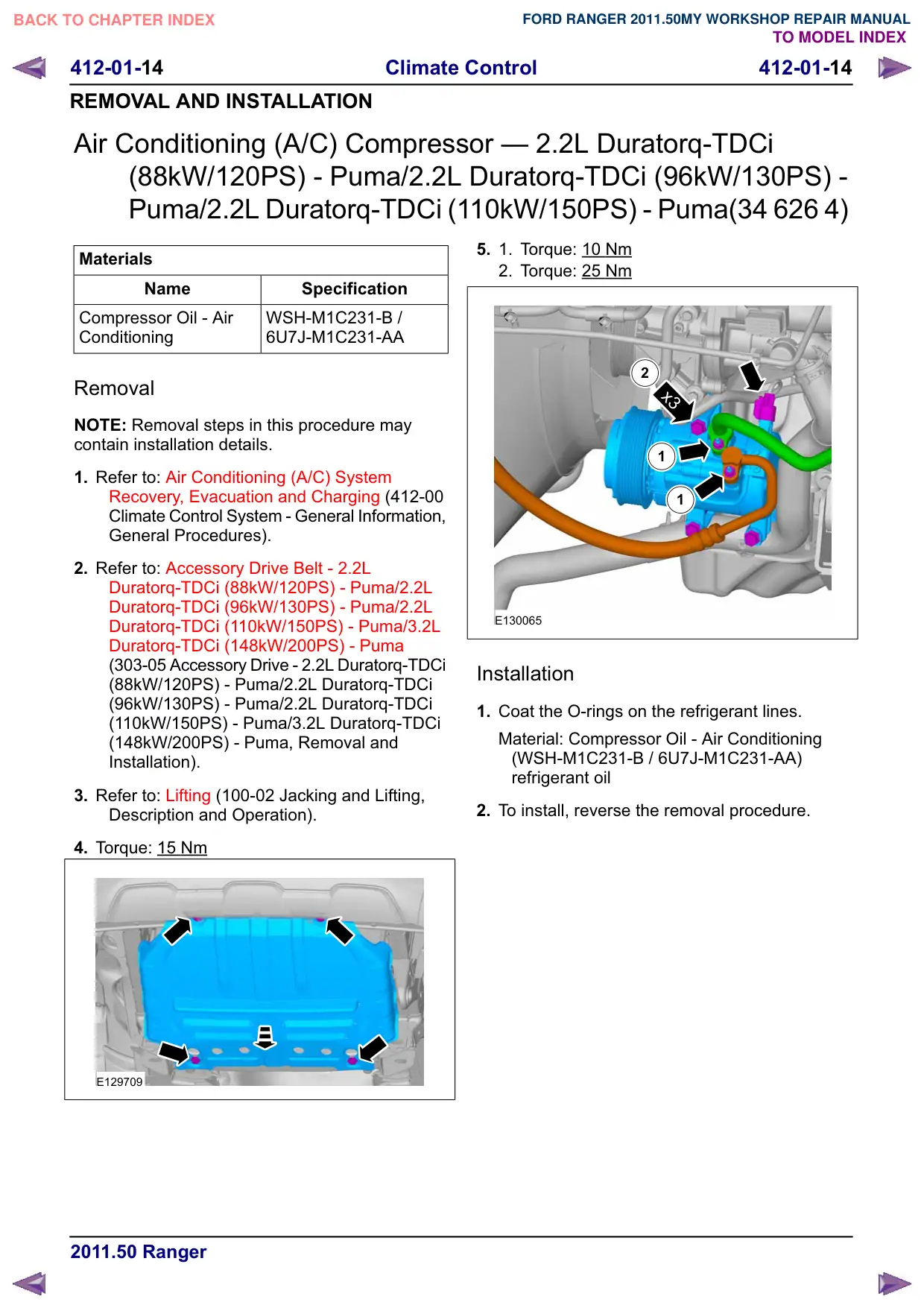

Compressor do ar-condicionado (A/C) – 2.2L Duratorq-TDCi

412-01-14 Climate Control 412-01-14 REMOVAL AND INSTALLATION Air Conditioning (A/C) Compressor – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma(34 626 4) Materials Name Specification Compressor Oil - Air WSH-M1C231-B / Conditioning 6U7J-M1C231-AA Removal NOTE: Removal steps in this procedure may contain installation details. 1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures). 2. Refer to: Accessory Drive Belt - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma (303-05 Accessory Drive - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 3. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 4. Torque: 15 Nm E129709 5. 1. Torque: 10 Nm 2. Torque: 25 Nm 2 x3 1 1 E130065 Installation 1. Coat the O-rings on the refrigerant lines. Material: Compressor Oil - Air Conditioning (WSH-M1C231-B / 6U7J-M1C231-AA) refrigerant oil 2. To install, reverse the removal procedure.
