Fuel Tank and Lines
310-01A-2
DESCRIPTION AND OPERATION

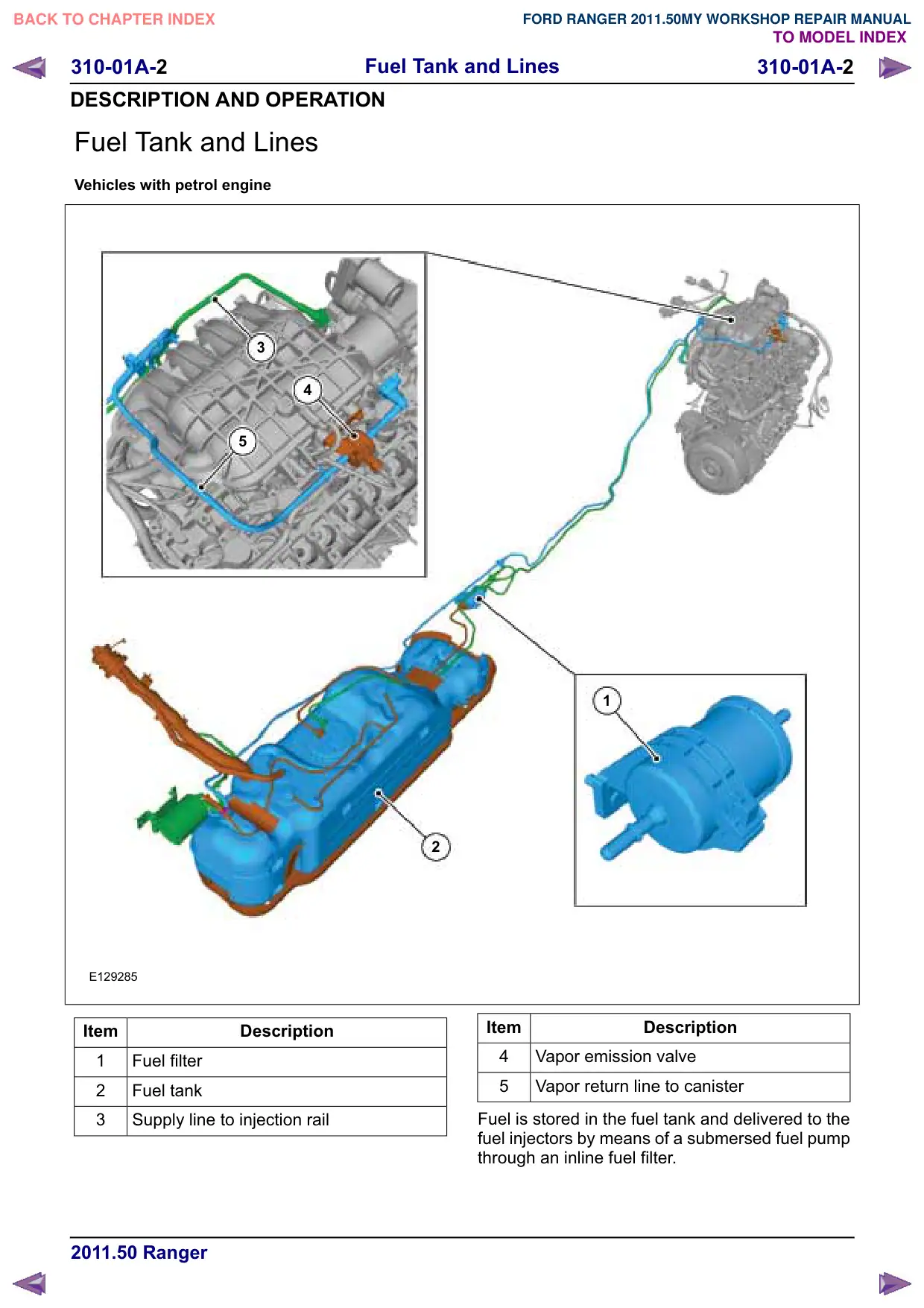

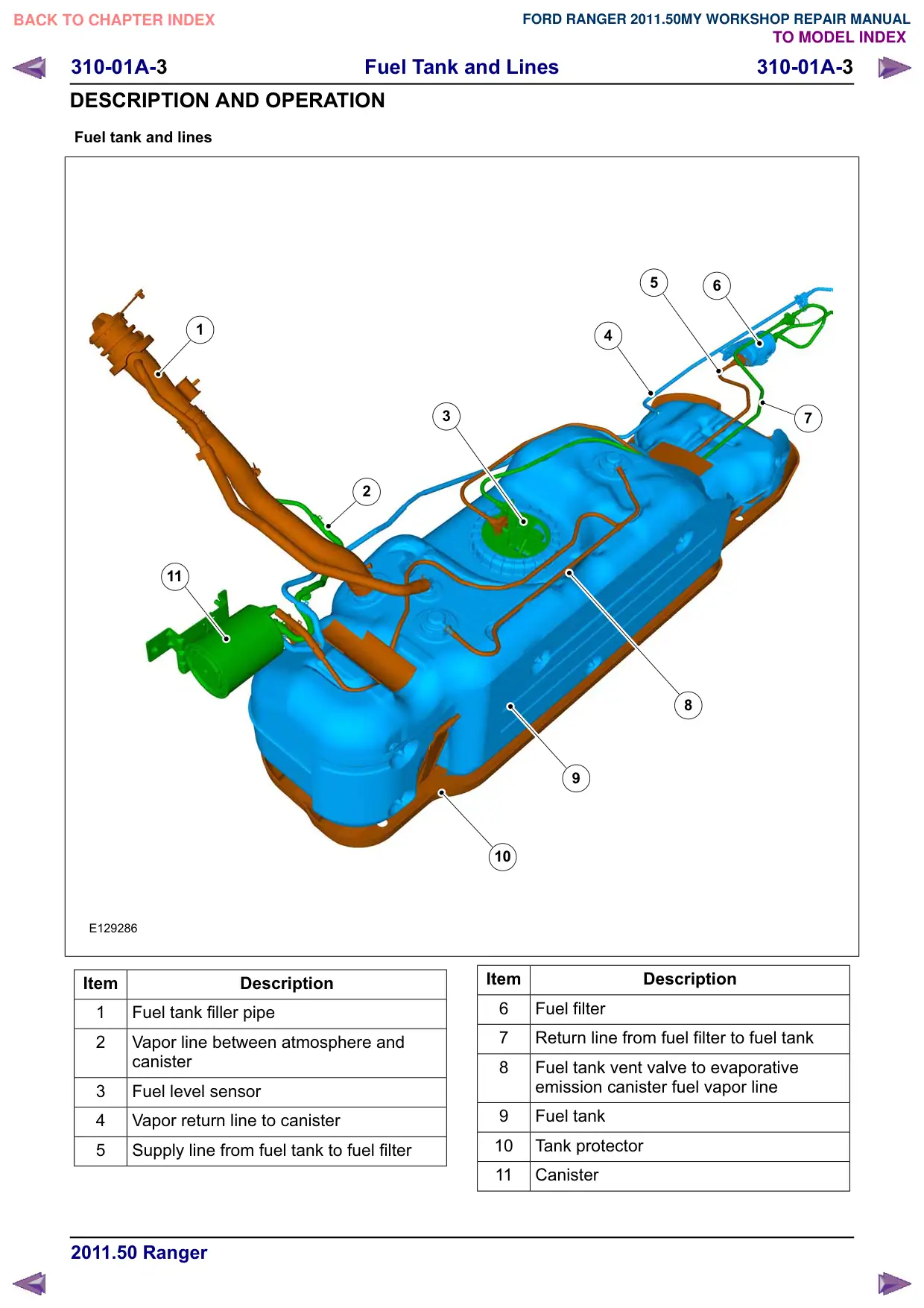

Fuel Tank and Lines
Vehicles with petrol engine
3
4
5
E129285
Item
Description
1
Fuel filter
2
Fuel tank
3
Supply line to injection rail
1
2
Item
Description
4
Vapor emission valve
5
Vapor return line to canister
Fuel is stored in the fuel tank and delivered to the
fuel injectors by means of a submersed fuel pump
through an inline fuel filter.
