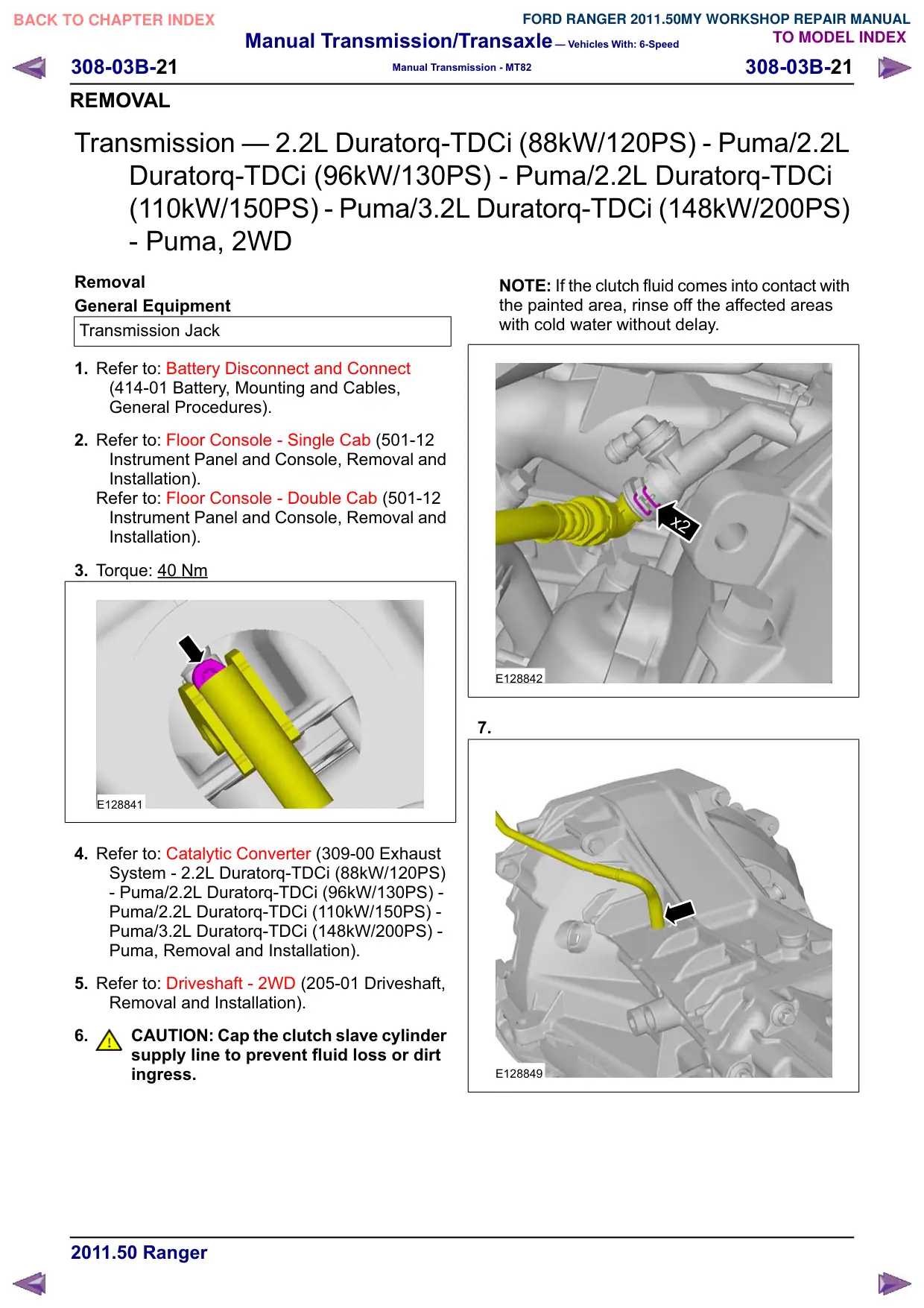

Transmissão – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L

Manual Transmission/Transaxle – Vehicles With: 6-Speed 308-03B-21 308-03B-21 Manual Transmission - MT82 REMOVAL Transmission – 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, 2WD Removal General Equipment Transmission Jack 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 2. Refer to: Floor Console - Single Cab (501-12 Instrument Panel and Console, Removal and Installation). Refer to: Floor Console - Double Cab (501-12 Instrument Panel and Console, Removal and Installation). 3. Torque: 40 Nm E128841 4. Refer to: Catalytic Converter (309-00 Exhaust System - 2.2L Duratorq-TDCi (88kW/120PS) - Puma/2.2L Duratorq-TDCi (96kW/130PS) - Puma/2.2L Duratorq-TDCi (110kW/150PS) - Puma/3.2L Duratorq-TDCi (148kW/200PS) - Puma, Removal and Installation). 5. Refer to: Driveshaft - 2WD (205-01 Driveshaft, Removal and Installation). 6. CAUTION: Cap the clutch slave cylinder supply line to prevent fluid loss or dirt ingress. NOTE: If the clutch fluid comes into contact with the painted area, rinse off the affected areas with cold water without delay. x2 E128842 7. E128849
