Drenagem e abastecimento da transmissão

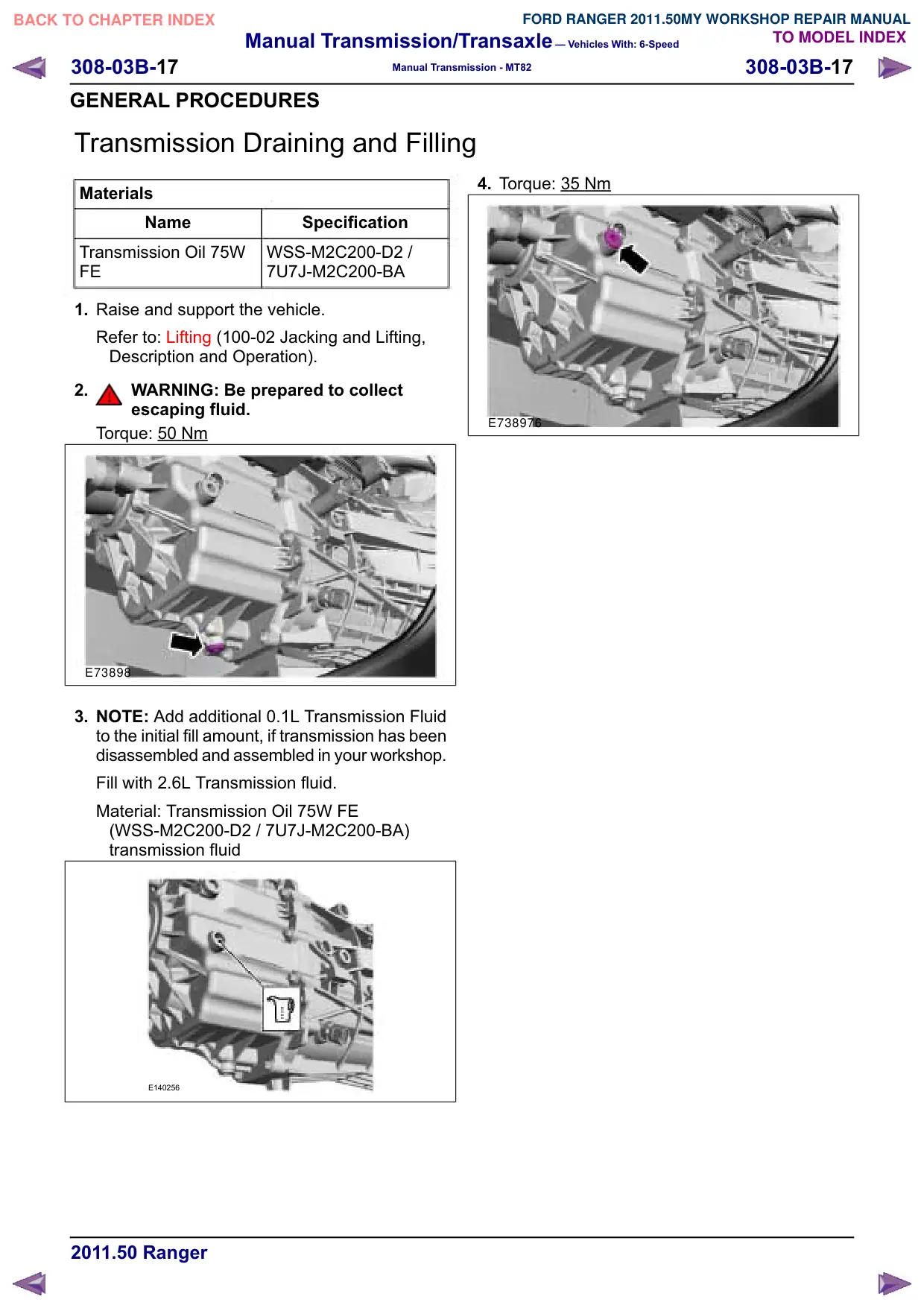

Manual Transmission/Transaxle – Vehicles With: 6-Speed 308-03B-17 308-03B-17 Manual Transmission - MT82 GENERAL PROCEDURES Transmission Draining and Filling Materials Name Specification Transmission Oil 75W WSS-M2C200-D2 / FE 7U7J-M2C200-BA 1. Raise and support the vehicle. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation). 2. WARNING: Be prepared to collect escaping fluid. Torque: 50 Nm E73898 3. NOTE: Add additional 0.1L Transmission Fluid to the initial fill amount, if transmission has been disassembled and assembled in your workshop. Fill with 2.6L Transmission fluid. Material: Transmission Oil 75W FE (WSS-M2C200-D2 / 7U7J-M2C200-BA) transmission fluid E140256 4. Torque: 35 Nm E738976
