Eixo de comando de troca de marchas

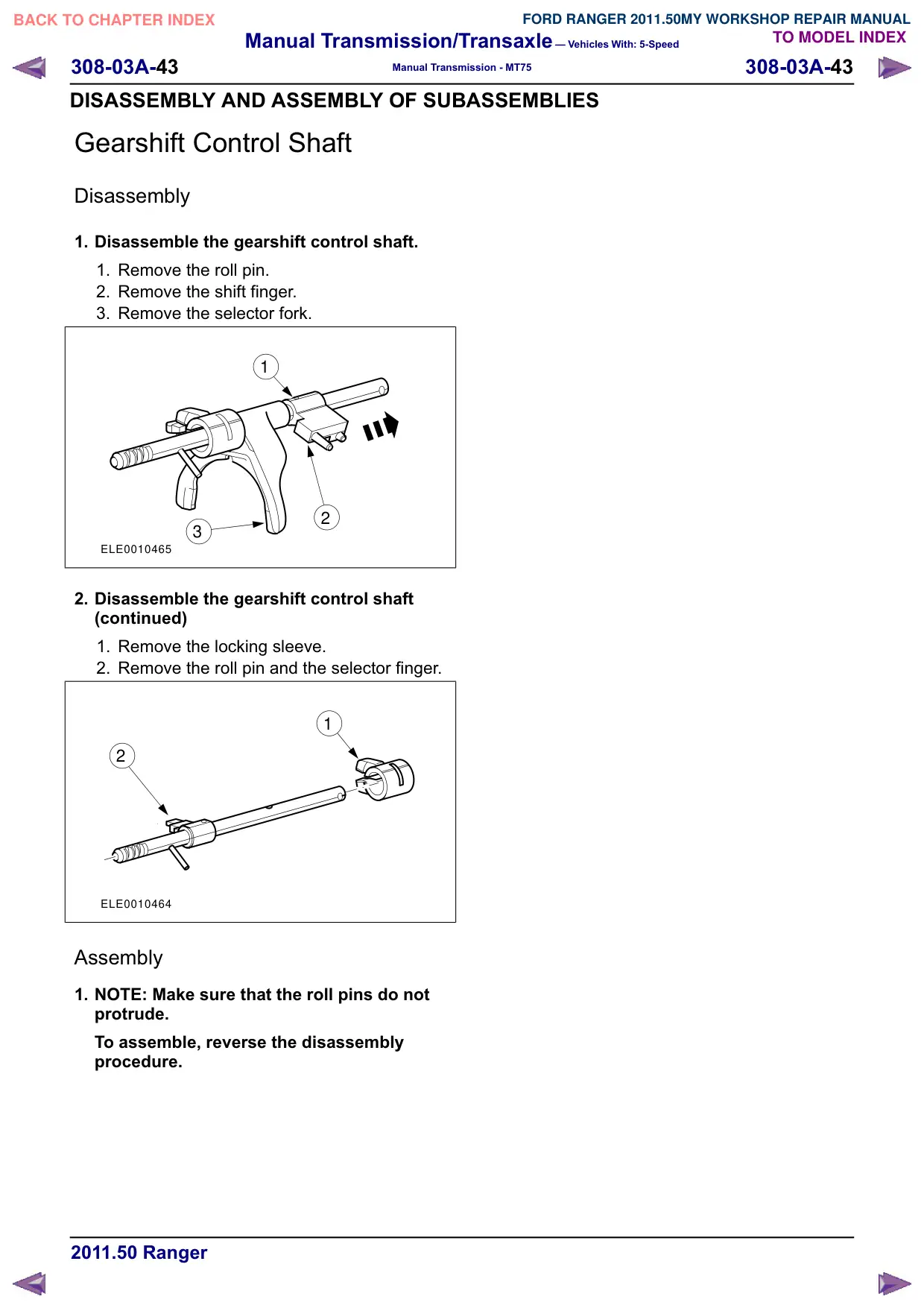

Manual Transmission/Transaxle – Vehicles With: 5-Speed 308-03A-43 308-03A-43 Manual Transmission - MT75 DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES Gearshift Control Shaft Disassembly 1. Disassemble the gearshift control shaft. 1. Remove the roll pin. 2. Remove the shift finger. 3. Remove the selector fork. 1 2 3 ELE0010465 2. Disassemble the gearshift control shaft (continued) 1. Remove the locking sleeve. 2. Remove the roll pin and the selector finger. 1 2 ELE0010464 Assembly 1. NOTE: Make sure that the roll pins do not protrude. To assemble, reverse the disassembly procedure.
