1.4.1 Localização sugerida da antena

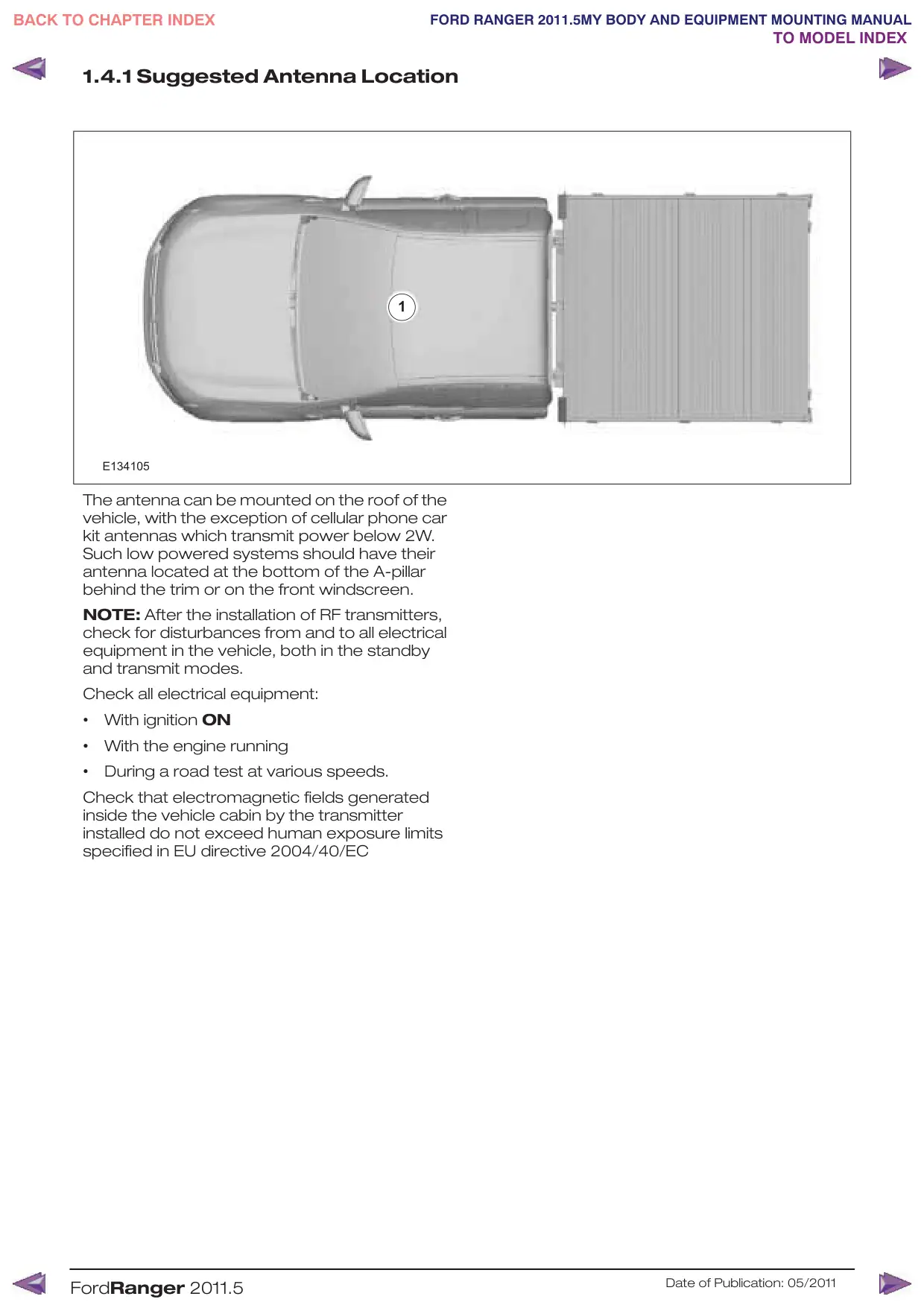

1.4.1 Suggested Antenna Location 1 E134105 The antenna can be mounted on the roof of the vehicle, with the exception of cellular phone car kit antennas which transmit power below 2W. Such low powered systems should have their antenna located at the bottom of the A-pillar behind the trim or on the front windscreen. NOTE: After the installation of RF transmitters, check for disturbances from and to all electrical equipment in the vehicle, both in the standby and transmit modes. Check all electrical equipment: • With ignition ON • With the engine running • During a road test at various speeds. Check that electromagnetic fields generated inside the vehicle cabin by the transmitter installed do not exceed human exposure limits specified in EU directive 2004/40/EC FordRanger 2011.5 Date of Publication: 05/2011
