5.1.3 Cabine-chassi

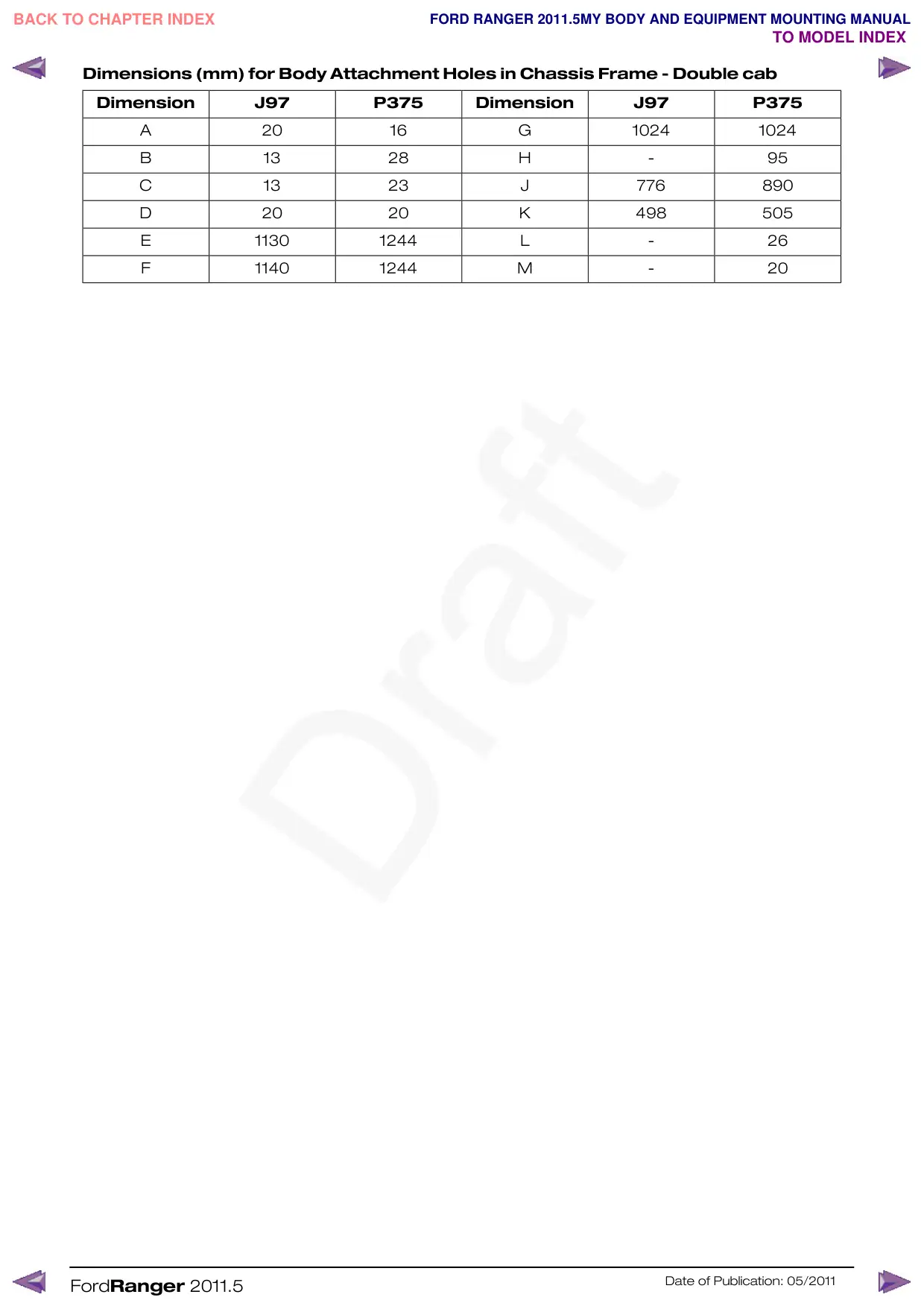

Dimensions (mm) for Body Attachment Holes in Chassis Frame - Double cab Dimension J97 P375 Dimension J97 P375 A 20 16 B 13 28 C 13 23 D 20 20 E 1130 1244 F 1140 1244 FordRanger 2011.5 G 1024 1024 H - 95 J 776 890 K 498 505 L - 26 M - 20 Date of Publication: 05/2011
