4.2.2 Lâmpadas externas adicionais

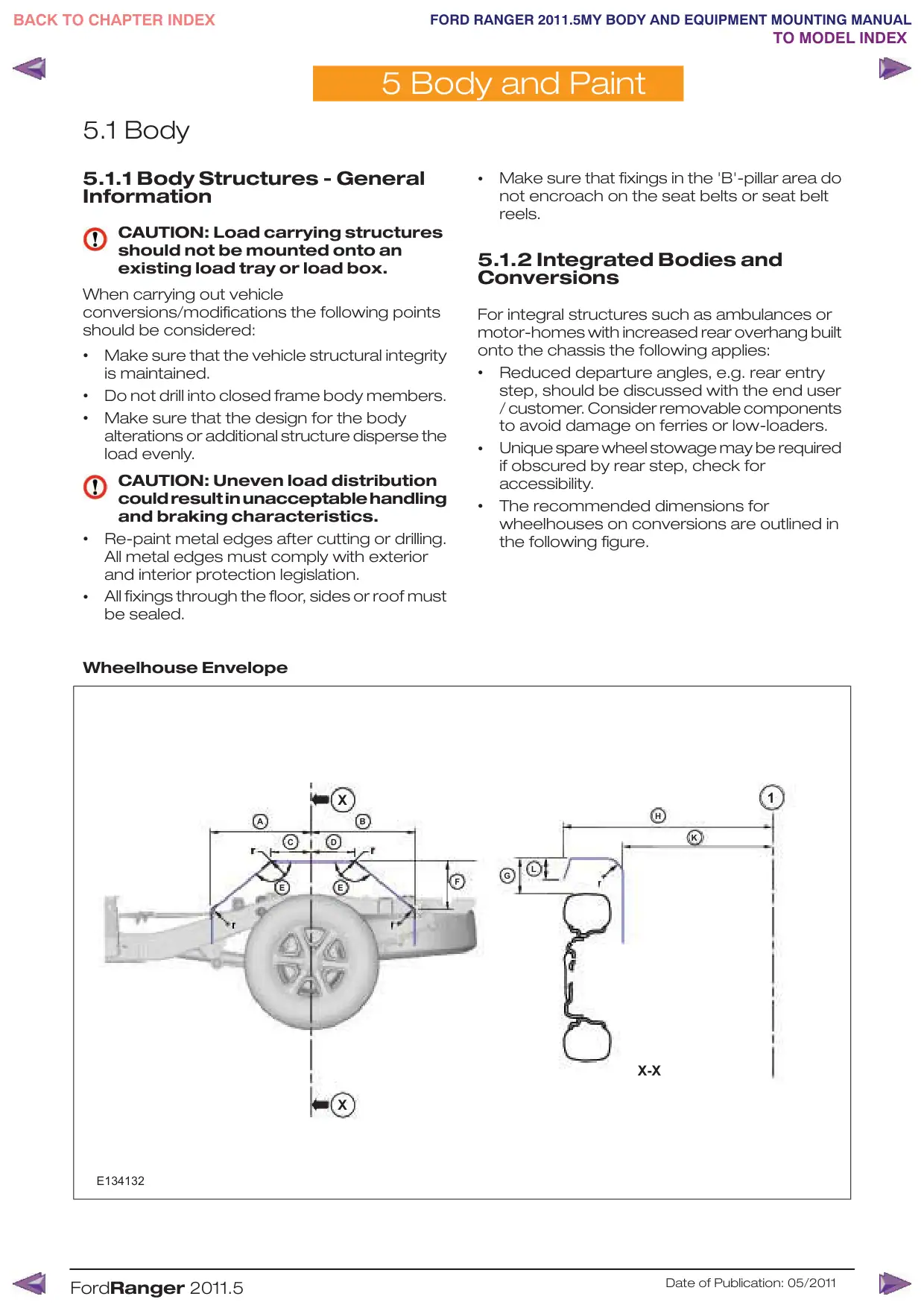

4.2 Exterior Lighting WARNING: Make sure that the modified vehicle complies with all relevant legal requirements. 4.2.1 Reversing Lamps The reverse lamps are activated by the reverse switch on the transmission and passing through the Central Junction Box where the signal is sensed. A marginal increase in current (via a relay or buffered electrical input) is permissible to trigger a rear-view camera system, or audible device. Lighting Loads Lamp Controlling Device Number plate lamp Body control module Position / Parking lamp Body control module Front direction indicator Body control module Brake lamps Body control module Rear direction indicator Body control module Reverse lamp Body control module Rear fog lamp Body control module Trailer tow maximum power ratings shown, also see trailer tow below. Lighting Fuses F74 20A Headlamp F75 15A Front fog lamp F76 10A Reversing lamp Trailer Tow Vehicles fitted with a trailer tow as standard also come with a trailer control module for lighting. When fitting low power LED lights that require less than 2W, the lights may flicker when in use. A trailer patch harness should be used with low power LED lights. CAUTION: Do not connect the trailer patch harness to the vehicle when the trailer is not connected. NOTE:The trailer patch harness is available from your Ford authorised dealer. 4.2.3 Lamps – Hazard / Direction Indication The maximum permissible load with the standard system is: • 3 x 5W – front and rear indicators + side repeaters (Left Hand Side) • 3 x 5W – front and rear indicators + side repeaters (Right Hand Side) FordRanger 2011.5 4.2.2 Additional External Lamps All power for additional exterior lamps must be taken through the Auxiliary Fuse Box with a suitable switch and / or relay as required. Vehicle Trailer Tow 2x5W 28W 5W 21W - 21W 28W 21W 24W 21W 24W 21W 48W 4.2.4 Electrically operated Door Mirrors WARNING: Do not tamper with the base system (controlled by Central Junction Box and multiplex architecture) and any feeds taken from the associated wiring or controller. NOTE: These options are not suitable for aftermarket or Body Builder fit. Date of Publication: 05/2011
