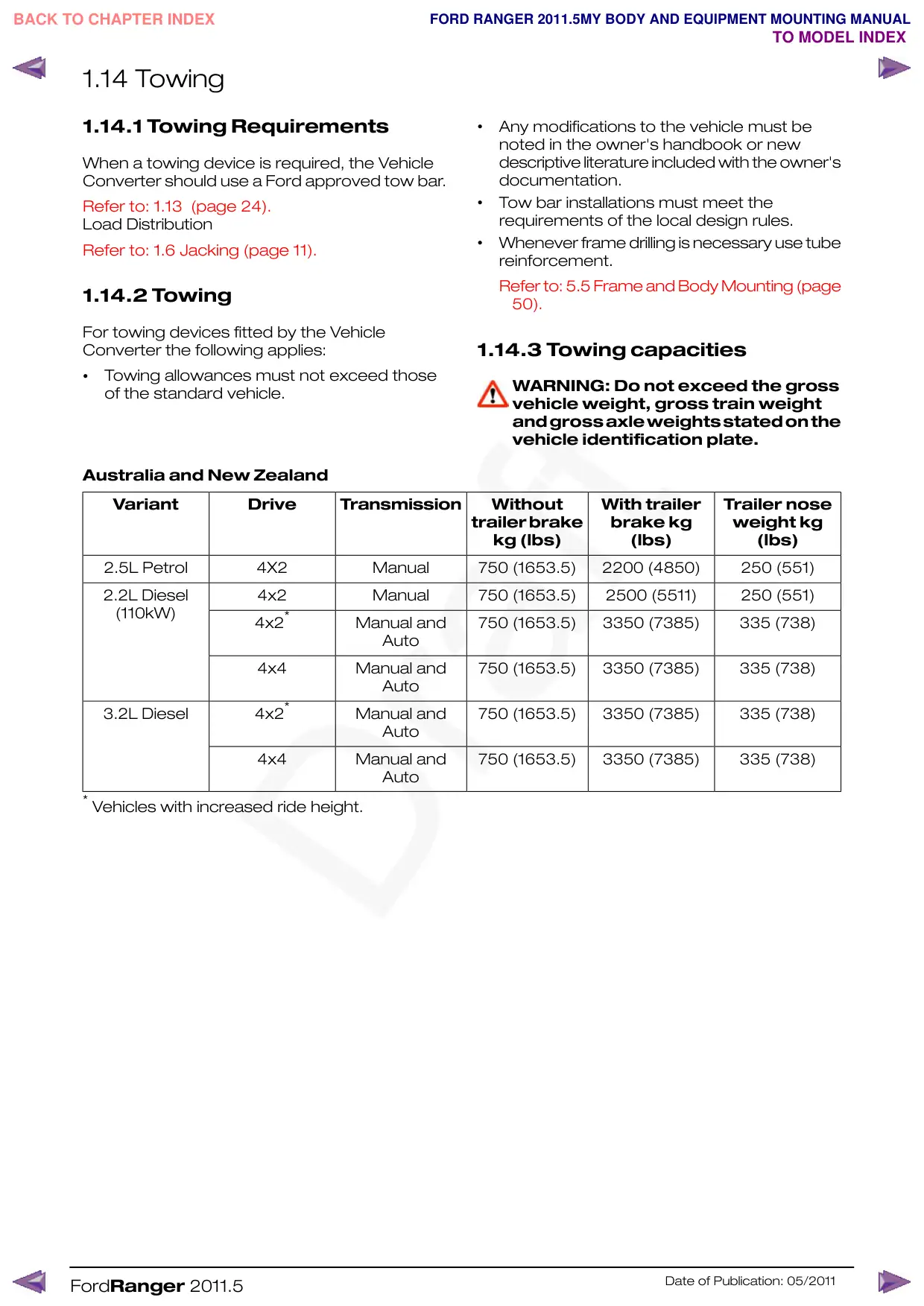

1.14 Towing 1.14.1 Towing Requirements When a towing device is required, the Vehicle Converter should use a Ford approved tow bar. Refer to: 1.13 (page 24). Load Distribution Refer to: 1.6 Jacking (page 11). 1.14.2 Towing For towing devices fitted by the Vehicle Converter the following applies: • Towing allowances must not exceed those of the standard vehicle. Australia and New Zealand Variant Drive Transmission 2.5L Petrol 4X2 Manual 2.2L Diesel 4x2 Manual (110kW) 4x2* Manual and Auto 4x4 Manual and Auto 4x2* 3.2L Diesel Manual and Auto 4x4 Manual and Auto * Vehicles with increased ride height. FordRanger 2011.5 • Any modifications to the vehicle must be noted in the owner's handbook or new descriptive literature included with the owner's documentation. • Tow bar installations must meet the requirements of the local design rules. • Whenever frame drilling is necessary use tube reinforcement. Refer to: 5.5 Frame and Body Mounting (page 50). 1.14.3 Towing capacities WARNING: Do not exceed the gross vehicle weight, gross train weight andgrossaxleweightsstatedonthe vehicle identification plate. Without With trailer Trailer nose trailer brake brake kg weight kg kg (lbs) (lbs) (lbs) 750 (1653.5) 2200 (4850) 250 (551) 750 (1653.5) 2500 (5511) 250 (551) 750 (1653.5) 3350 (7385) 335 (738) 750 (1653.5) 3350 (7385) 335 (738) 750 (1653.5) 3350 (7385) 335 (738) 750 (1653.5) 3350 (7385) 335 (738) Date of Publication: 05/2011
