1.11.2 Carroceria de cabine-chassi - básico

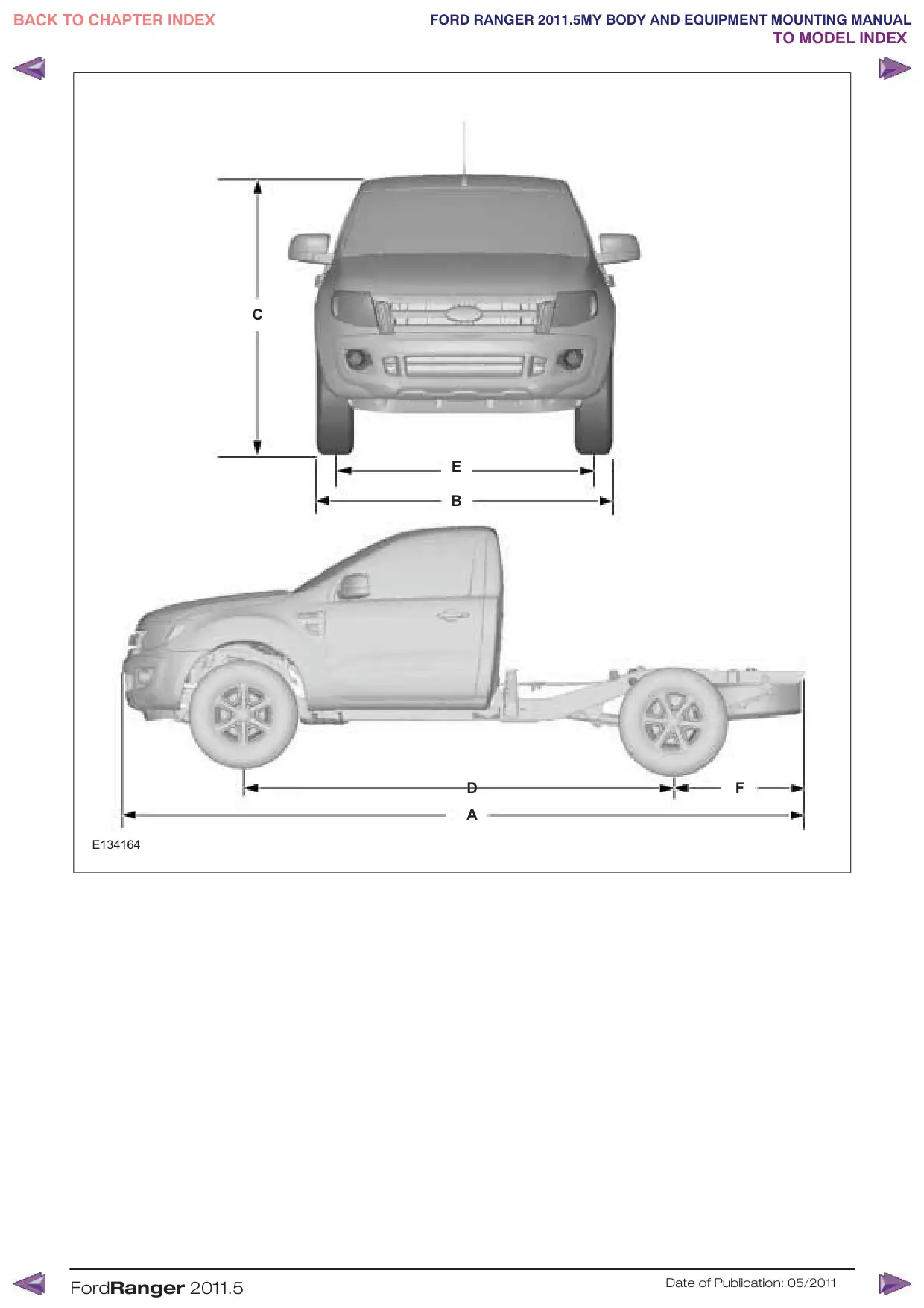

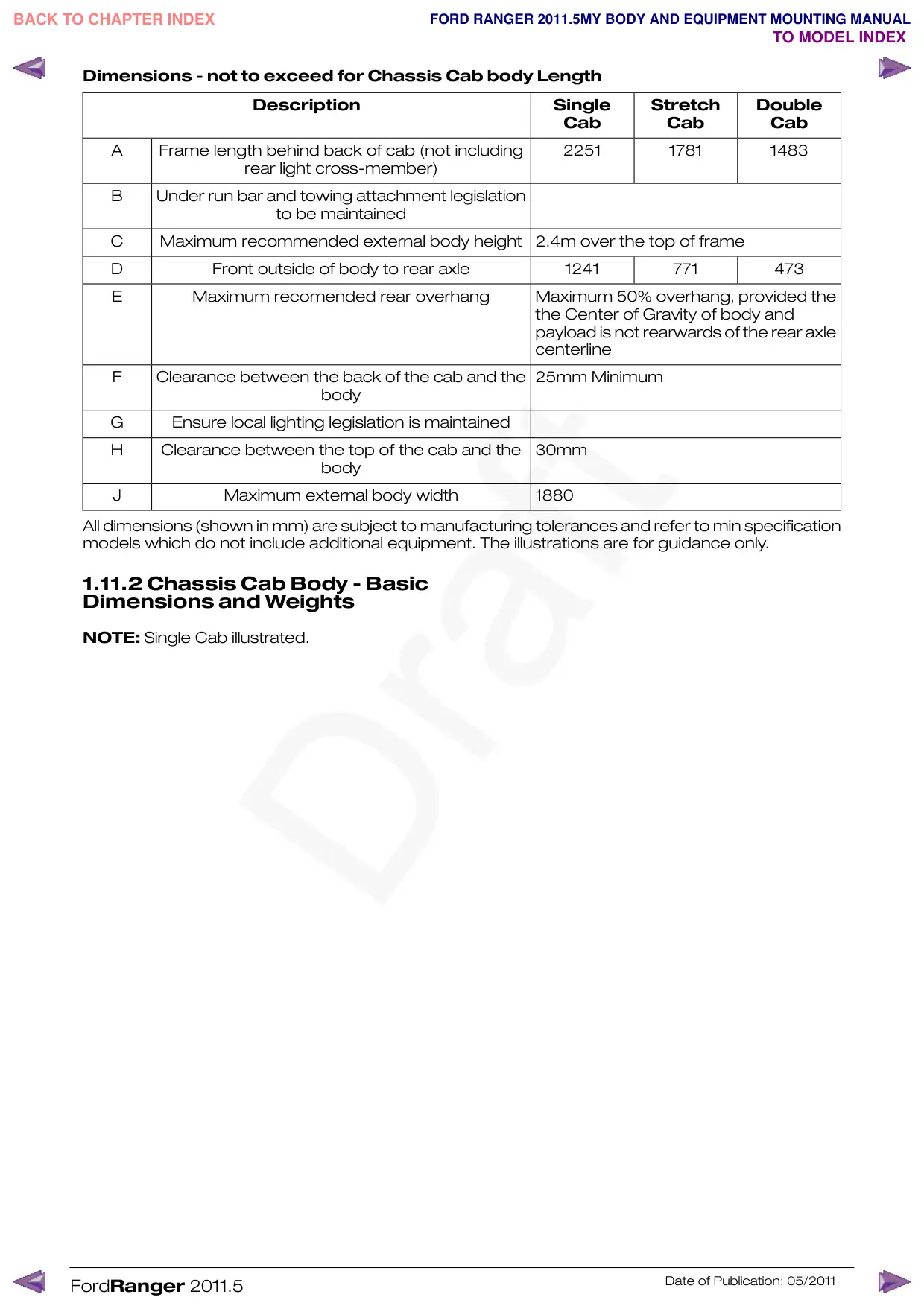

Dimensions - not to exceed for Chassis Cab body Length Description Single Stretch Double A Frame length behind back of cab (not including rear light cross-member) B Under run bar and towing attachment legislation to be maintained C Maximum recommended external body height D Front outside of body to rear axle E Maximum recomended rear overhang F Clearance between the back of the cab and the body G Ensure local lighting legislation is maintained H Clearance between the top of the cab and the body J Maximum external body width All dimensions (shown in mm) are subject to manufacturing tolerances and refer to min specification models which do not include additional equipment. The illustrations are for guidance only. 1.11.2 Chassis Cab Body - Basic Dimensions and Weights NOTE: Single Cab illustrated. FordRanger 2011.5 Cab Cab Cab 2251 1781 1483 2.4m over the top of frame 1241 771 473 Maximum 50% overhang, provided the the Center of Gravity of body and payload is not rearwards of the rear axle centerline 25mm Minimum 30mm 1880 Date of Publication: 05/2011
