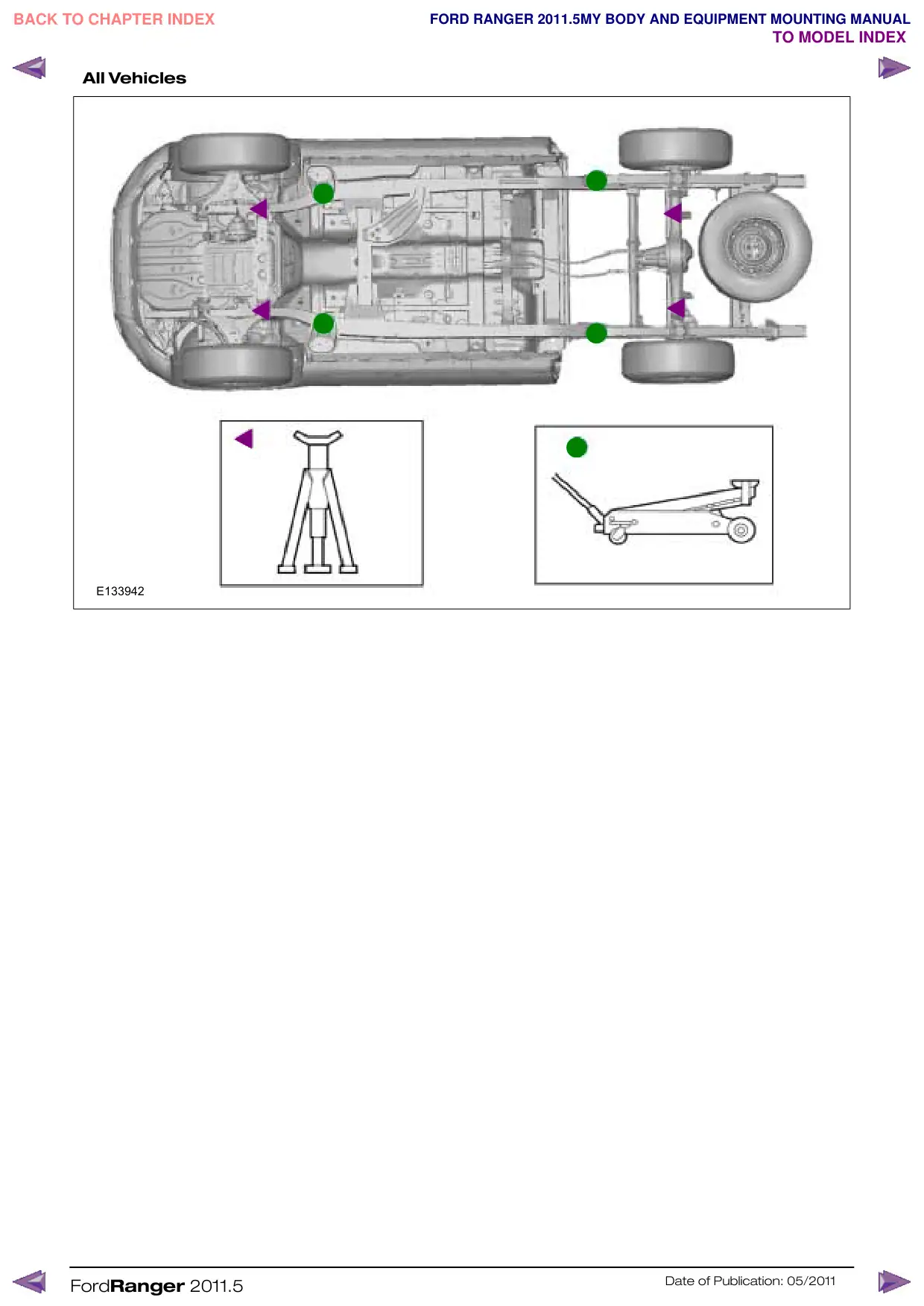

1.6 Jacking WARNINGS: Alwayspositionthevehicleonahard level surface. If the vehicle must be jacked up on a soft surface use load spreading blocks under the jack. Always chock the wheel diagonally opposite the jacking point. Failure to follow these instructions may result in personal injury. Do not get under a vehicle that is supported by a jack. This jack is only intended for changing wheels. CAUTIONS: It is important that only the correct jacking and support locations are used at all times. Make sure that access to the spare wheelismaintainedwhenconverting the vehicle or relocating the spare wheel. NOTE: When using the vehicle jack, refer to the owner guide for correct operating instructions. NOTE: Make sure that reinforcements are installed to maintain the integrity of the original body structure for/at jacking points. NOTE: Any modifications to the vehicle must be noted in the owner's handbook or new descriptive literature included with the owner's documentation. FordRanger 2011.5 The spare wheel winch is located above the spare wheel and can be accessed from the rear of the chassis frame. The jack must be assembled and fixed appropriately to the body to ensure safety, durability and accessibility. E140512 1. Ensure screwthread is adequately lubricated before use. 2. The jack should be used on level firm ground wherever possible. 3. Apply park brake fully before lifting the vehicle. 4. It is recommended that the wheels of the vehicle should be chocked, and no person should remain in a vehicle being jacked. 5. No person should place any portion of their body under a vehicle that is supported by a jack. Date of Publication: 05/2011
